AL-KO Brake Shoe Set 2050 / 2051 200x50

Complete set for replacing your AL-KO 2050 / 2051 Brake Linings

This product is a complete set for one axle. This means that the set consists of four brake shoes, six springs, and four retaining plates

AL-KO brake lining set 2050/2051:
- Brand: AL-KO
- Type: 2050/2051
- Width: 50 mm
- Brake drum inner diameter: 200 mm
- Our item number: 712785

AL-KO product description:
AL-KO 2050 / AL-KO 2051
AL-KO Item number: 384294 / 384.294 / 384 294
AL-KO Brake shoe item number: 1807779

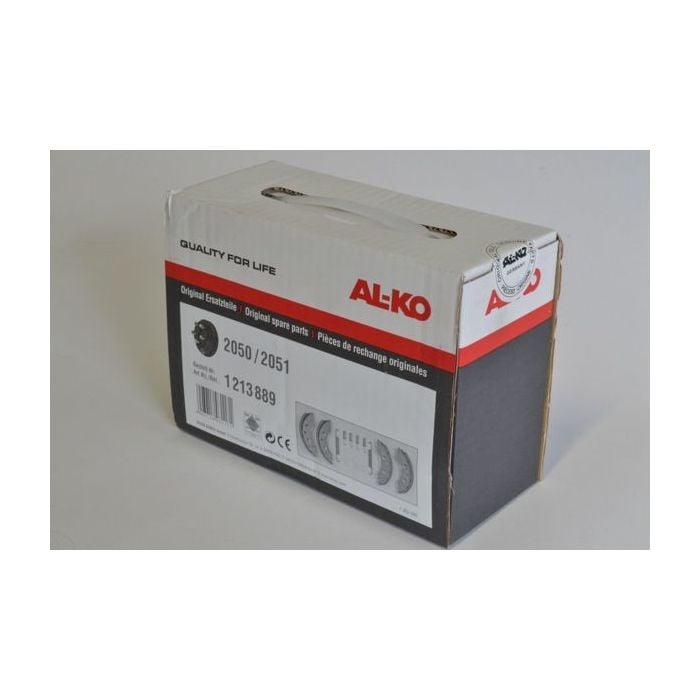

AL-KO Set item number: 1213889
AL-KO set 48

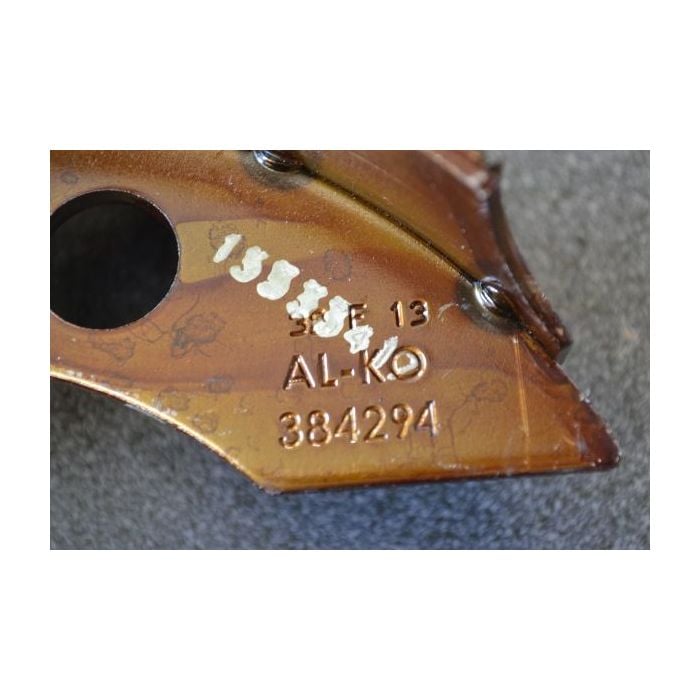

You can find the AL-KO number on the brake shoe.

Brake linings, also called brake shoes, are pressed against the inside of the brake drums during braking, allowing the wheel to slow down. The brake linings are held in position by springs. The horizontally mounted tension springs and the vertically mounted retaining spring. This brake lining set contains all the wear parts of a wheel brake.

Replacing AL-KO Brake Shoes, the Right Choice:

When replacing your trailer brake linings, it is best to look at the numbers on your current brake shoe. For this AL-KO brake lining model, those are the numbers 384294. If you have found these numbers, you can easily replace your brake lining with the product with the same numbers. If you are unsure or can no longer read the numbers on your current brake shoe, you can look at the brand, dimensions, and mounting holes of the brake shoes, as well as the inner diameter of the brake drum, which is also important. For AL-KO 2050 brake shoes, the inner diameter of the brake drum is 200 mm and the width of the brake shoes is 50 mm. For more information on what to look for when ordering new brake linings, check out our extensive page on brake linings / brake shoes. For information on what to look for when checking your brake system, click here. You can also always contact our customer service, we are happy to help you find the right brake linings.

Replacing Hub Nut: Once you have worked on your brake system and have removed the hub nut, it must be replaced. Hub nuts are steel lock nuts, designed for one-time use. If used multiple times, the locking mechanism will no longer function properly.
