AL-KO ETI 811268 – Wheel brake EURO1 2051Aa
Looking for spare parts for AL-KO ETI 811268? Below you will find the technical exploded drawing and complete parts list for Wheel brake EURO1 2051Aa.
Go to parts listExploded drawing

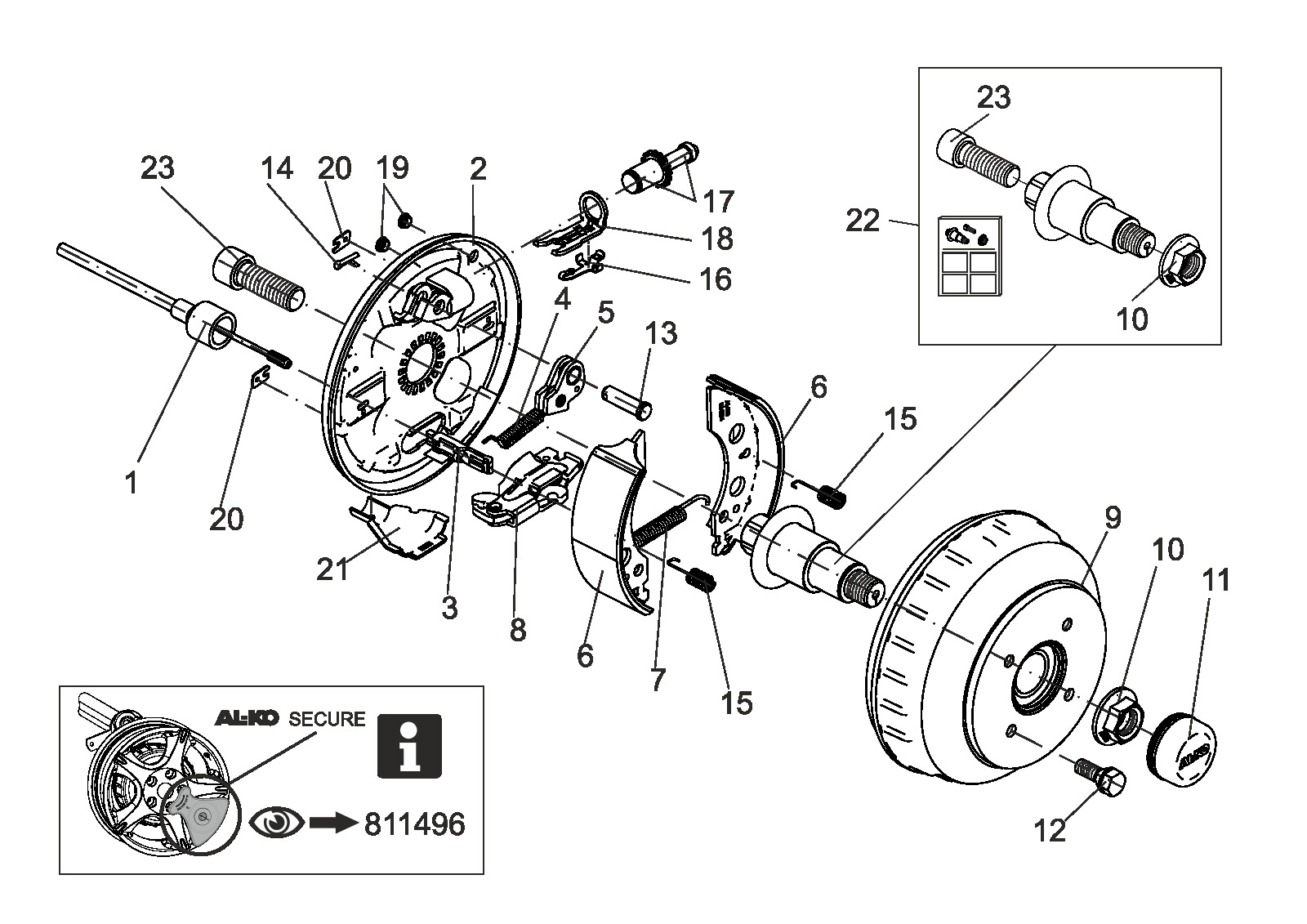

Technical drawing 811268
AL-KO ETI 811268
Technical details
AL-KO | EURO 1 | 2051 | 650-750 kg
ETI number
811268
Parts
49
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811268
Use the position number from the exploded drawing to find the correct spare part.
49 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable PROFI LONG LIFE 350/546 | Enquire about this part |
| 1 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 1 | 247283 | Bowden cable PROFI LONG LIFE 770/966 | View 247283 |
| 1 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 1 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 1 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 1 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 1 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 1 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 1 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 2 | 571376 | Braking plate welded left 2051 | View 571376 |
| 2 | 571377 | Braking plate welded right 2051 | View 571377 |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 2187370003 | Tension spring | View 2187370003 |
| 5 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 5 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 6 | 1213889 | Spare parts set brake shoe 2050/2051 | View 1213889 |
| 7 | 2082000007 | Tension spring | View 2082000007 |
| 8 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 9 | 569775 | Brake drum cpl. 140x5-M12x1,5 at 750 kg with flange | Enquire about this part |
| 9 | 578825 | Brake drum cpl. 140x5-M14x1,5 at 750 kg | View 578825 |
| 9 | 578826 | Brake drum cpl. 139,7x4-M12x1,5 at 750 kg | Enquire about this part |
| 9 | 1224801 | Spare parts set bearing wheel brake (Ø64/Ø34/37) 2051 1350Kg | View 1224801 |
| 9 | 1224803 | Spare parts set bearing wheel brake (Ø72/Ø39/37) 2051 1500kg | View 1224803 |
| 9 | 1336427 | Brake drum cpl. 120x5-M12x1,5 at 750 kg | Enquire about this part |
| 9 | 1932110 | Spare parts set brake drum 2051 cpl. with bearing; 112x5 - M12x1,5 | View 1932110 |
| 9 | 1366564 | Brake drum cpl. 114,3x5-M12x1,5 at 650 kg | Enquire about this part |
| 9 | 1932111 | Spare parts set brake drum 2051 cpl. with bearing; 98x4 - M12x1,5 | View 1932111 |
| 9 | 1370160 | Brake drum cpl. 130x4-M14x1,5 at 650 kg | Enquire about this part |
| 9 | 1932112 | Spare parts set brake drum 2051 cpl. with bearing; 100x4 - M12x1,5 | View 1932112 |
| 9 | 1804988 | Brake drum cpl. 130x4-M14x1,5 | Enquire about this part |
| 9 | 1932113 | Spare parts set brake drum 2051 cpl. with bearing; 112x5 - M12x1,5 | View 1932113 |
| 10 | 581200 | Flange nut M24x1.5 | View 581200 |
| 11 | 581197 | Sealing cap Ø57 | View 581197 |
| 12 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 12 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 12 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 13 | 368651 | Bearing bolt | Enquire about this part |
| 14 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 15 | 2088800003 | Compression spring | Enquire about this part |
| 16 | 368405 | Compound spring | View 368405 |
| 17 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 18 | 368361 | Bow pressure | View 368361 |
| 19 | 373245 | Plug RAL6002 | View 373245 |
| 20 | 2382610002 | Cover plate | Enquire about this part |
| 21 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 22 | 1732708 | Spare parts set stub axle unbraked bearing Ø34 M20 | View 1732708 |
| 22 | 1732710 | Spare parts set stub axle unbraked bearing Ø39 M20 | View 1732710 |
| 23 | 704096 | Cylinder screw M20X60 DIN 912 at drawing | View 704096 |
