AL-KO ETI 811954 – Wheel brake 2051Ab EURO1 0°15' waterproofed
Looking for spare parts for AL-KO ETI 811954? Below you will find the technical exploded drawing and complete parts list for Wheel brake 2051Ab EURO1 0°15' waterproofed.
Go to parts listExploded drawing

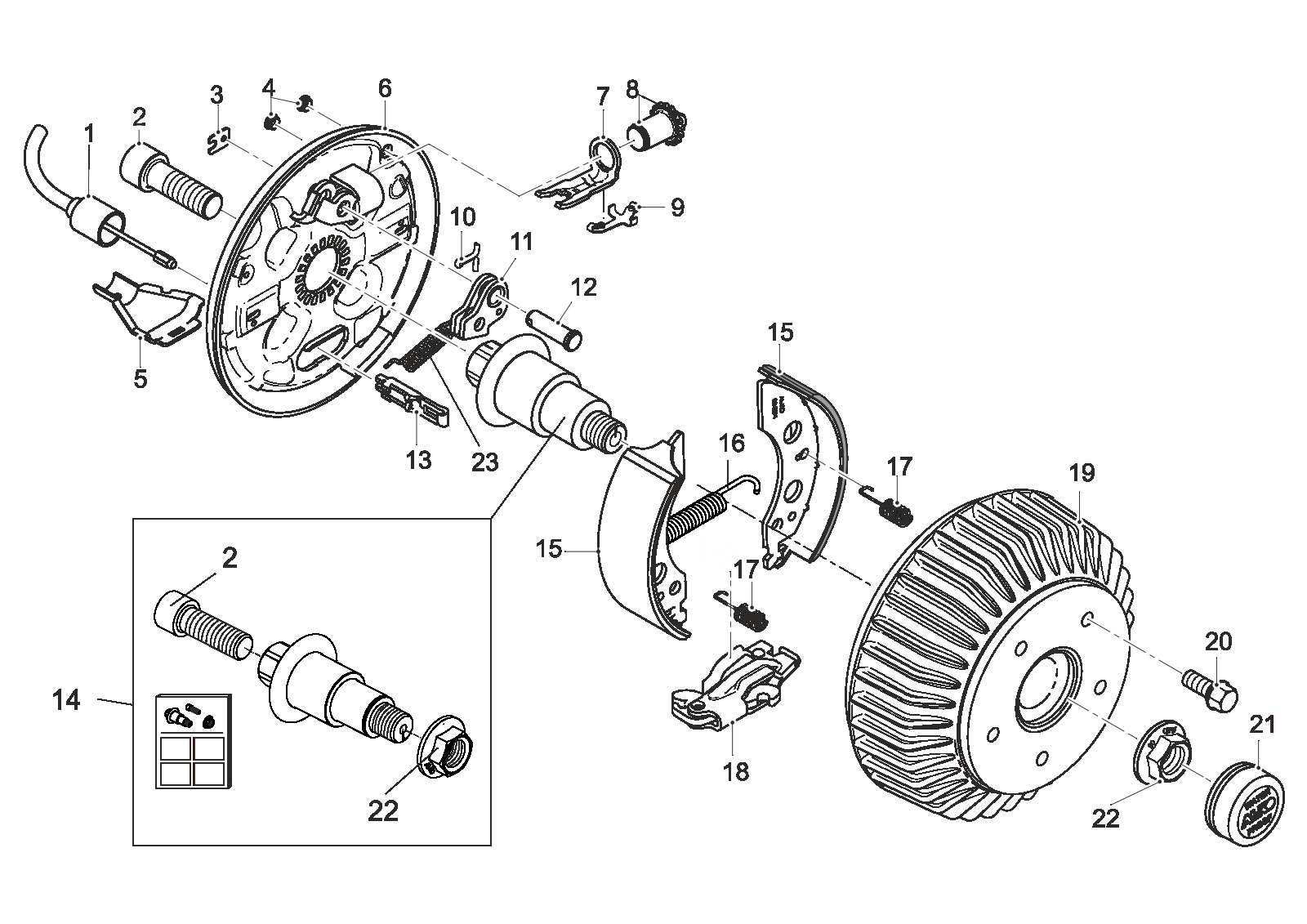

Technical drawing 811954
AL-KO ETI 811954
Technical details
AL-KO | EURO 1 | 2051Ab | 750 kg
ETI number
811954
Parts
39
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811954
Use the position number from the exploded drawing to find the correct spare part.
39 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable COMPACT 350/546 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247282 | Bowden cable COMPACT 530/726 long PROFI LONG LIFE | View 247282 |
| 1 | 247283 | Bowden cable COMPACT 770/966 long PROFI LONG LIFE | View 247283 |
| 1 | 247284 | Bowden cable COMPACT 890/1086 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247285 | Bowden cable COMPACT 1020/1216 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247286 | Bowden cable COMPACT 1130/1326 long PROFI LONG LIFE | View 247286 |
| 1 | 247287 | Bowden cable 1320/1516 long PROFI LONG LIFE | View 247287 |
| 1 | 247288 | Bowden cable COMPACT 1430/1626 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247289 | Bowden cable COMPACT 1620/1816 long PROFI LONG LIFE | View 247289 |
| 1 | 247290 | Bowden cable COMPACT 1790/1986 long PROFI LONG LIFE | Enquire about this part |
| 2 | 706900 | Cylinder screw M22X60 DIN 912 at drawing | Enquire about this part |
| 3 | 2382610002 | Cover plate | Enquire about this part |
| 4 | 373245 | Plug RAL6002 | View 373245 |
| 5 | 371387 | Brake cable shell | Enquire about this part |
| 6 | 571376 | Braking plate welded left 2051 | View 571376 |
| 6 | 571377 | Braking plate welded right 2051 | View 571377 |
| 7 | 368361 | Bow pressure | View 368361 |
| 8 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 9 | 368405 | Compound spring | View 368405 |
| 10 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 11 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 11 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 12 | 368651 | Bearing bolt | Enquire about this part |
| 13 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 14 | 1732672 | Spare parts set stub axle unbraked bearing Ø34 M22 | Enquire about this part |
| 14 | 1732674 | Spare parts set stub axle unbraked bearing Ø39 M22 | Enquire about this part |
| 15 | 1213889 | Spare parts set brake jaw 2050/2051 | View 1213889 |
| 16 | 2082000007 | Tension spring | View 2082000007 |
| 17 | 2088800003 | Compression spring | Enquire about this part |
| 18 | 571510 | Spread hinge lock cpl. 2051/2361 | View 571510 |
| 19 | 1224804 | Spare parts set bearing 2051 waterproofed | View 1224804 |
| 19 | 1312671 | Brake drum cpl. 112x5-M12x1,5 waterproofed | View 1312671 |
| 19 | 1372517 | Brake drum cpl. 140x5-M14x1,5 waterproofed | Enquire about this part |
| 20 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 20 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 20 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 21 | 581197 | End cap Ø57 | View 581197 |
| 22 | 581200 | Flange nut M24x1,5 | View 581200 |
| 23 | 2187370003 | Tension spring | View 2187370003 |
