AL-KO ETI 811951 – Wheel brake Euro-Compact 2051Aa 1350kg waterproofed M22
Looking for spare parts for AL-KO ETI 811951? Below you will find the technical exploded drawing and complete parts list for Wheel brake Euro-Compact 2051Aa 1350kg waterproofed M22.
Go to parts listExploded drawing

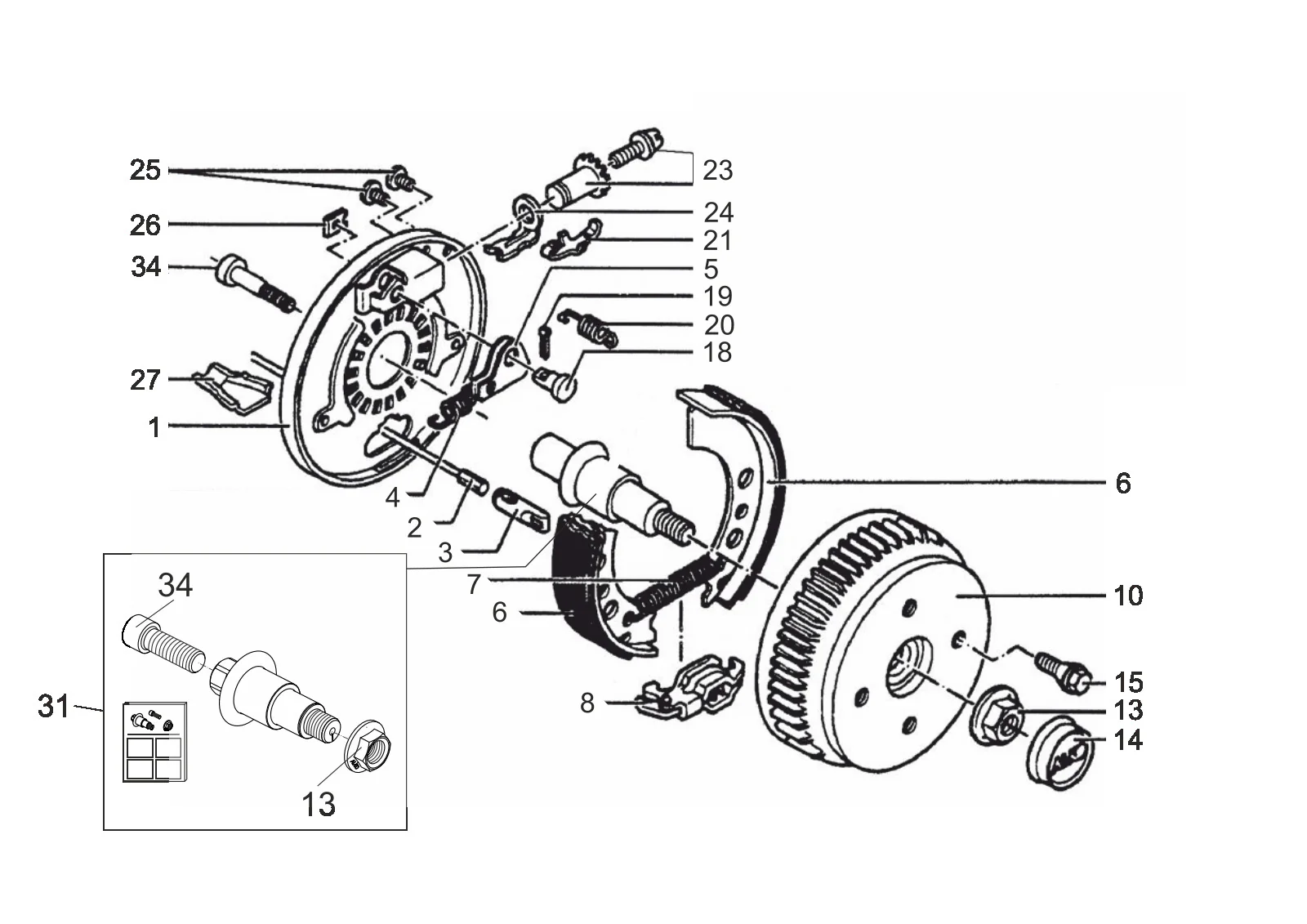

Technical drawing 811951
AL-KO ETI 811951
Technical details
AL-KO | Compact | 2051A | 650 kg
ETI number
811951
Parts
42
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811951
Use the position number from the exploded drawing to find the correct spare part.
42 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 571376 | Braking plate welded left 2051 | View 571376 |
| 1 | 571377 | Braking plate welded right 2051 | View 571377 |
| 2 | 247281 | Bowden cable PROFI LONG LIFE 350/546 | Enquire about this part |
| 2 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 2 | 247283 | Bowden cable PROFI LONG LIFE 770/966 | View 247283 |
| 2 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 2 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 2 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 2 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 2 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 2 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 2 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 2187370003 | Tension spring | View 2187370003 |
| 4 | 2187370003 | Tension spring | View 2187370003 |
| 5 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 5 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 6 | 1213889 | Spare parts set brake shoe 2050/2051 | View 1213889 |
| 7 | 2082000007 | Tension spring | View 2082000007 |
| 8 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 10 | 1224802 | Spare parts set bearing (Ø64/Ø34/37) wheel brake 2051 waterproofed | View 1224802 |
| 10 | 1337125 | Brake drum cpl. 100x4-M12x1,5 waterproofed | Enquire about this part |
| 10 | 1337126 | Brake drum cpl. 101,6x4-M12x1,5 waterproofed | Enquire about this part |
| 10 | 1337246 | Brake drum cpl. 140x5-M14x1,5 waterproofed | Enquire about this part |
| 10 | 1337247 | Brake drum cpl. 139,7x4-M12x1,5 waterproofed | Enquire about this part |
| 10 | 1932118 | SP-set brake drum 2051 cpl. with waterproof bearing; 112x5 - M12x1,5 | View 1932118 |
| 13 | 581200 | Flange nut M24x1.5 | View 581200 |
| 14 | 1313924 | Sealing cap Ø55 watertight | View 1313924 |
| 15 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 15 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 15 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 18 | 368651 | Bearing bolt | Enquire about this part |
| 19 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 20 | 2088800003 | Compression spring | Enquire about this part |
| 21 | 368405 | Compound spring | View 368405 |
| 23 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 24 | 368361 | Bow pressure | View 368361 |
| 25 | 373245 | Plug RAL6002 | View 373245 |
| 26 | 2382610002 | Cover plate | Enquire about this part |
| 27 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 31 | 1732671 | Spare parts set stub axle unbraked bearing Ø34 M22 | View 1732671 |
| 34 | 706900 | Cylinder screw M22X60 DIN 912 at drawing | Enquire about this part |
