AL-KO ETI 811720 – Axle rigid braked 2051Ab SA 1500Kg waterproofed
Looking for spare parts for AL-KO ETI 811720? Below you will find the technical exploded drawing and complete parts list for Axle rigid braked 2051Ab SA 1500Kg waterproofed.

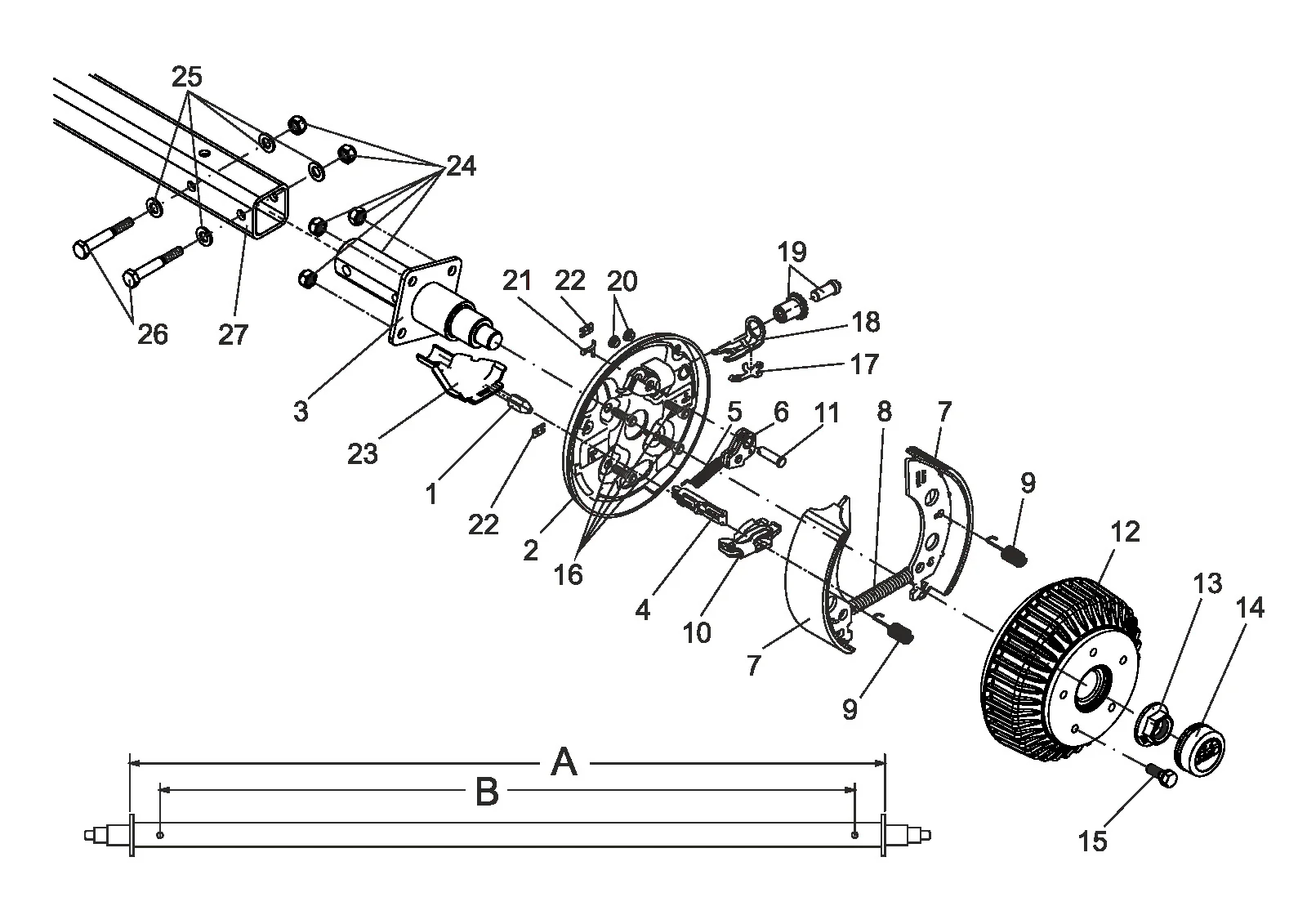

Go to parts listExploded drawing
Technical drawing 811720
AL-KO ETI 811720
Technical details
AL-KO | Rigid axle braked | Trailing arm
ETI number
811720
Parts
41
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811720
Use the position number from the exploded drawing to find the correct spare part.
41 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable COMPACT 350/546 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247282 | Bowden cable COMPACT 530/726 long PROFI LONG LIFE | View 247282 |
| 1 | 247283 | Bowden cable COMPACT 770/966 long PROFI LONG LIFE | View 247283 |
| 1 | 247284 | Bowden cable COMPACT 890/1086 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247285 | Bowden cable COMPACT 1020/1216 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247286 | Bowden cable COMPACT 1130/1326 long PROFI LONG LIFE | View 247286 |
| 1 | 247287 | Bowden cable 1320/1516 long PROFI LONG LIFE | View 247287 |
| 1 | 247288 | Bowden cable COMPACT 1430/1626 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247289 | Bowden cable COMPACT 1620/1816 long PROFI LONG LIFE | View 247289 |
| 1 | 247290 | Bowden cable COMPACT 1790/1986 long PROFI LONG LIFE | Enquire about this part |
| 2 | 691048 | Braking plate welded left 2051 | Enquire about this part |
| 2 | 691049 | Braking plate welded right 2051 | Enquire about this part |
| 3 | 1368987 | Wheel brake stub left welded 2051AB | Enquire about this part |
| 3 | 1368988 | Wheel brake stub right welded 2051AB | Enquire about this part |
| 4 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 5 | 2187370003 | Tension spring | View 2187370003 |
| 6 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 6 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 7 | 1213889 | Spare parts set brake jaw 2050/2051 | View 1213889 |
| 8 | 2082000007 | Tension spring | View 2082000007 |
| 9 | 2088800003 | Compression spring | Enquire about this part |
| 10 | 571510 | Spread hinge lock cpl. 2051/2361 | View 571510 |
| 11 | 368651 | Bearing bolt | Enquire about this part |
| 12 | 1224803 | Spare parts set bearing wheel brake 2051 1500kg | View 1224803 |
| 12 | 1312671 | Brake drum cpl. 112x5-M12x1,5 waterproofed | View 1312671 |
| 13 | 581200 | Flange nut M24x1,5 | View 581200 |
| 14 | 1313924 | End cap waterproofed Ø57 | View 1313924 |
| 15 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 15 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 16 | 706315 | Cylinder screw M12x30 DIN 6912 8.8 | Enquire about this part |
| 17 | 368405 | Compound spring | View 368405 |
| 18 | 368361 | Bow pressure | View 368361 |
| 19 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 20 | 373245 | Plug RAL6002 | View 373245 |
| 21 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 22 | 2382610002 | Cover plate | Enquire about this part |
| 23 | 371387 | Brake cable shell | Enquire about this part |
| 24 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 25 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 26 | 706358 | Hexagon screw M12x80 DIN 931 10.9 | Enquire about this part |
| 27 | ETK0007 | Axle profile square | Enquire about this part |
