AL-KO technical drawing · ETI 811423
AL-KO ETI 811423 – COMPACT Axle B850 2051 ATLAS COPCO

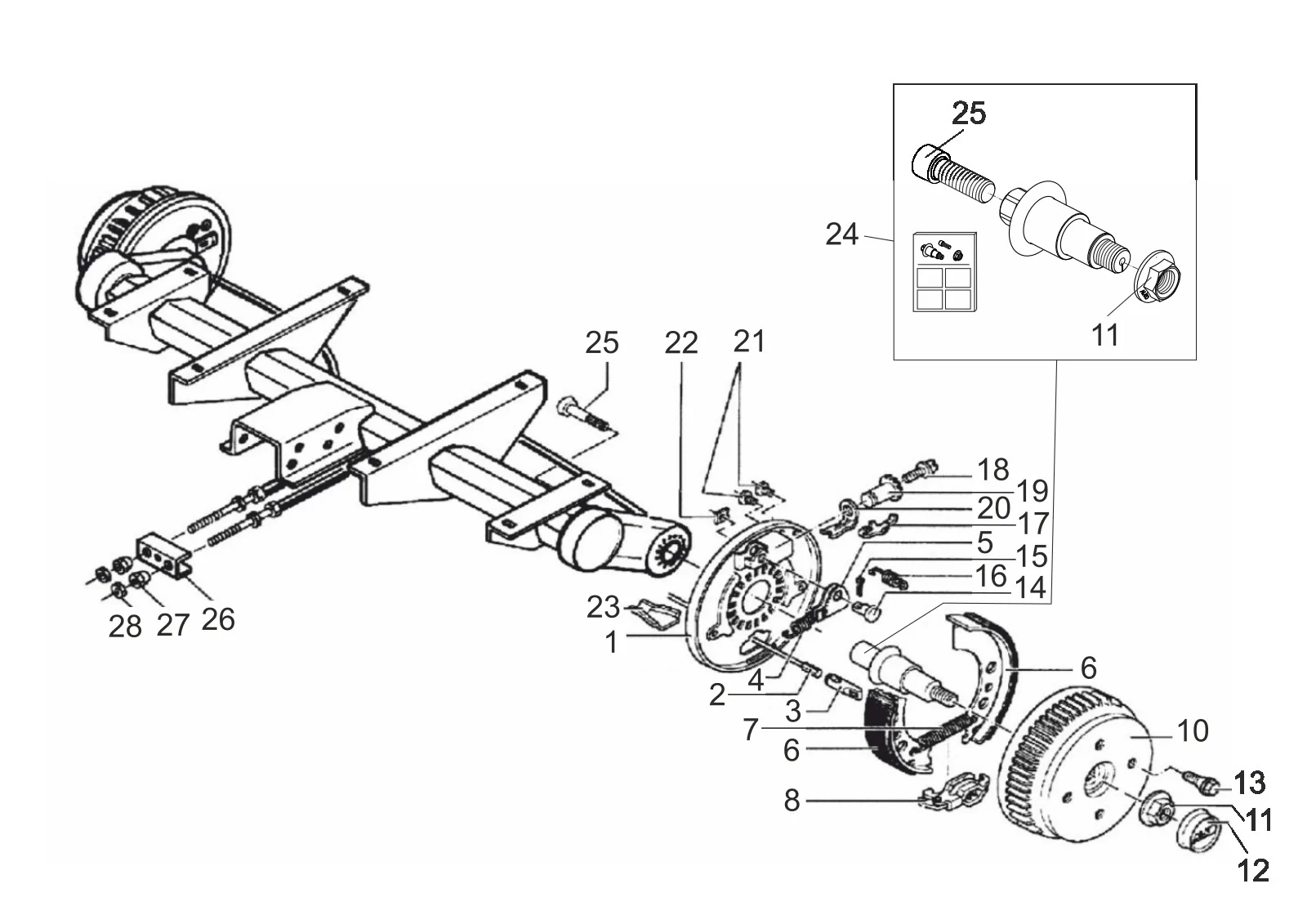

Looking for spare parts for AL-KO ETI 811423? Below you will find the technical exploded drawing and complete parts list for COMPACT Axle B850 2051 ATLAS COPCO.
Go to parts listExploded drawing
Technical drawing 811423
AL-KO ETI 811423
Technical details
AL-KO | Rubber suspension braked | Trailing arm | Compact
ETI number
811423
Parts
29
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811423
Use the position number from the exploded drawing to find the correct spare part.
29 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 571376 | Braking plate welded left 2051 | View 571376 |
| 1 | 571377 | Braking plate welded right 2051 | View 571377 |
| 2 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 2187370003 | Tension spring | View 2187370003 |
| 5 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 5 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 6 | 1213889 | Spare parts set brake shoe 2050/2051 | View 1213889 |
| 7 | 2082000007 | Tension spring | View 2082000007 |
| 8 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 10 | 1224801 | Spare parts set bearing wheel brake (Ø64/Ø34/37) 2051 1350Kg | View 1224801 |
| 10 | 1932112 | Spare parts set brake drum 2051 cpl. with bearing; 100x4 - M12x1,5 | View 1932112 |
| 11 | 581200 | Flange nut M24x1.5 | View 581200 |
| 12 | 581197 | Sealing cap Ø57 | View 581197 |
| 13 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 14 | 368651 | Bearing bolt | Enquire about this part |
| 15 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 16 | 2088800003 | Compression spring | Enquire about this part |
| 17 | 368405 | Compound spring | View 368405 |
| 18 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 20 | 368361 | Bow pressure | View 368361 |
| 21 | 373245 | Plug RAL6002 | View 373245 |
| 22 | 2382610002 | Cover plate | Enquire about this part |
| 23 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 24 | 1732707 | Spare parts set stub axle unbraked bearing Ø34 M20 | Enquire about this part |
| 25 | 704096 | Cylinder screw M20X60 DIN 912 at drawing | View 704096 |
| 26 | 1651419 | Balancing profile R13 wheel brake1637/2051/2361 | Enquire about this part |
| 27 | 2088890005 | Ball nut M8 | View 2088890005 |
| 28 | 705377 | Hexnut M8 DIN 934-8 | View 705377 |
