AL-KO ETI 811002 – Wheel brake EURO PLUS 2051 650 Kg valid until 10/94
Looking for spare parts for AL-KO ETI 811002? Below you will find the technical exploded drawing and complete parts list for Wheel brake EURO PLUS 2051 650 Kg valid until 10/94.
Go to parts listExploded drawing

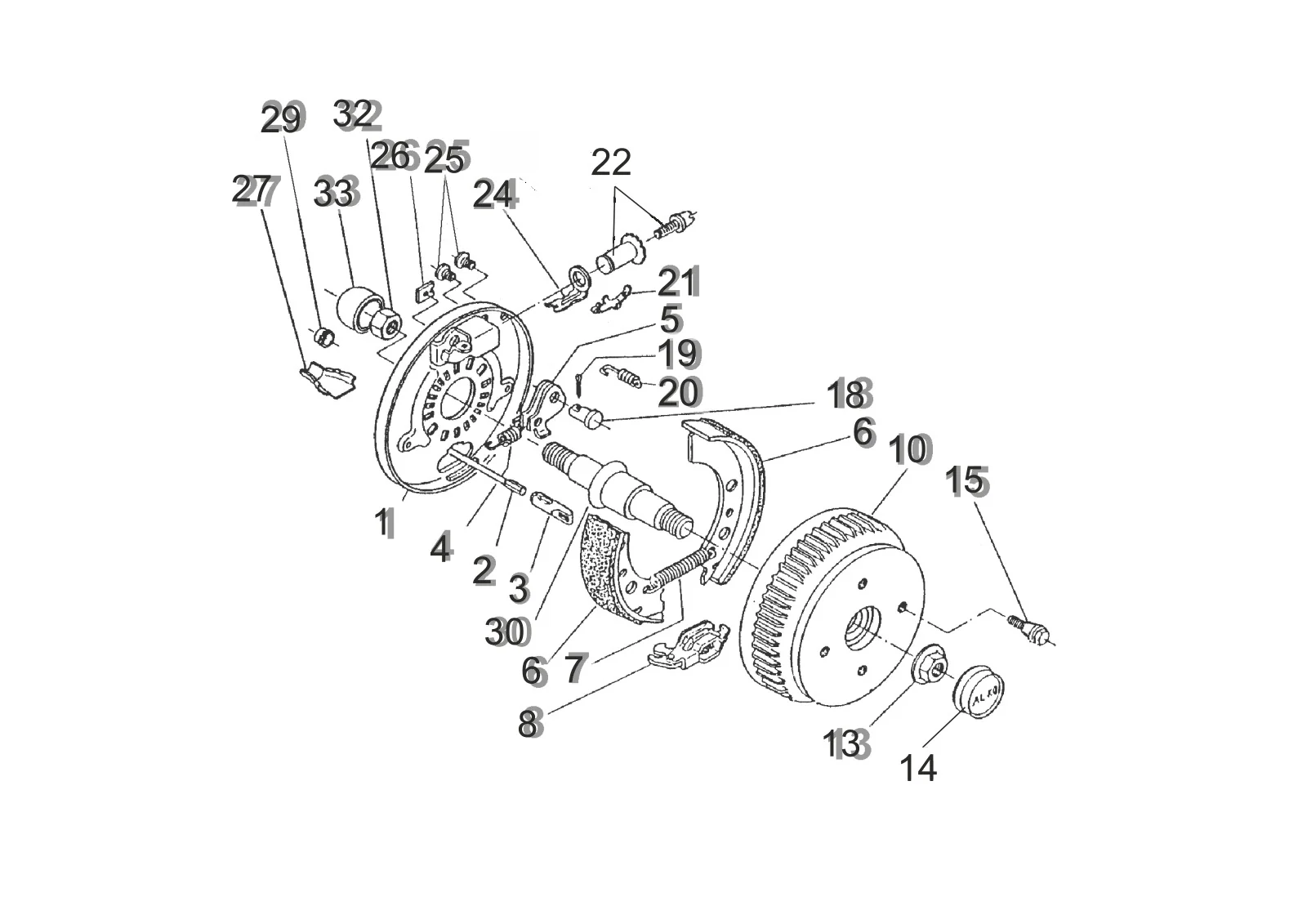

Technical drawing 811002
AL-KO ETI 811002
Technical details
AL-KO | EURO Plus | 2051 | 650 kg
ETI number
811002
Parts
47
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811002
Use the position number from the exploded drawing to find the correct spare part.
47 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 571376 | Braking plate welded left 2051 | View 571376 |
| 1 | 571377 | Braking plate welded right 2051 | View 571377 |
| 1 | 586406 | Braking plate replaced by 571376 | Enquire about this part |
| 1 | 586407 | Braking plate replaced by 571377 | Enquire about this part |
| 2 | 299707 | Bowden cable PROFI LONG LIFE 350/560 | Enquire about this part |
| 2 | 299708 | Bowden cable PROFI LONG LIFE 530/740 | View 299708 |
| 2 | 299709 | Bowden cable PROFI LONG LIFE 770/980 | View 299709 |
| 2 | 299710 | Bowden cable PROFI LONG LIFE 890/1100 | View 299710 |
| 2 | 299711 | Bowden cable PROFI LONG LIFE 1020/1230 | View 299711 |
| 2 | 299712 | Bowden cable PROFI LONG LIFE 1130/1340 | View 299712 |
| 2 | 299713 | Bowden cable PROFI LONG LIFE 1320/1530 | View 299713 |
| 2 | 299714 | Bowden cable PROFI LONG LIFE 1430/1640 | View 299714 |
| 2 | 299715 | Bowden cable PROFI LONG LIFE 1620/1830 | View 299715 |
| 2 | 299716 | Bowden cable PROFI LONG LIFE 1790/2000 | View 299716 |
| 3 | 371388 | Connection eye | Enquire about this part |
| 4 | 2187370003 | Tension spring | View 2187370003 |
| 5 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 5 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 6 | 1213889 | Spare parts set brake shoe 2050/2051 | View 1213889 |
| 7 | 2082000007 | Tension spring | View 2082000007 |
| 8 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 10 | 573191 | Brake drum cpl. 98x4-M12x1,5 | Enquire about this part |
| 10 | 1932107 | Spare parts set brake drum 2051 cpl. with bearing; 100x4 - M12x1,5 | View 1932107 |
| 10 | 1932108 | Spare parts set brake drum 2051 cpl. with bearing; 112x5 - M12x1,5 | View 1932108 |
| 10 | 614805 | Brake drum compl. 120x5-M12x1.5 | View 614805 |
| 10 | 1932110 | Spare parts set brake drum 2051 cpl. with bearing; 112x5 - M12x1,5 | View 1932110 |
| 10 | 1224803 | Spare parts set bearing wheel brake (Ø72/Ø39/37) 2051 1500kg | View 1224803 |
| 13 | 581200 | Flange nut M24x1.5 | View 581200 |
| 14 | 581197 | Sealing cap Ø57 | View 581197 |
| 15 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 15 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 15 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 18 | 368651 | Bearing bolt | Enquire about this part |
| 19 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 20 | 2088800003 | Compression spring | Enquire about this part |
| 21 | 368405 | Compound spring | View 368405 |
| 22 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 24 | 368361 | Bow pressure | View 368361 |
| 25 | 373245 | Plug RAL6002 | View 373245 |
| 26 | 2382610002 | Cover plate | Enquire about this part |
| 27 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 29 | 371389 | Protective cap | Enquire about this part |
| 30 | 581043 | Stub axle Ø39 bend 0°30' | View 581043 |
| 30 | 583563 | Stub axle Ø30 bend 0°30' | Enquire about this part |
| 30 | 583664 | Stub axle Ø30 bend 0°30' | Enquire about this part |
| 32 | 702881 | Hexagon lock nut M24 according to drawing | View 702881 |
| 33 | 604472 | Protective cap M24 | Enquire about this part |
