AL-KO ETI 811888 – Overrun device V H14
Looking for spare parts for AL-KO ETI 811888? Below you will find the technical exploded drawing and complete parts list for Overrun device V H14.
Go to parts listExploded drawing

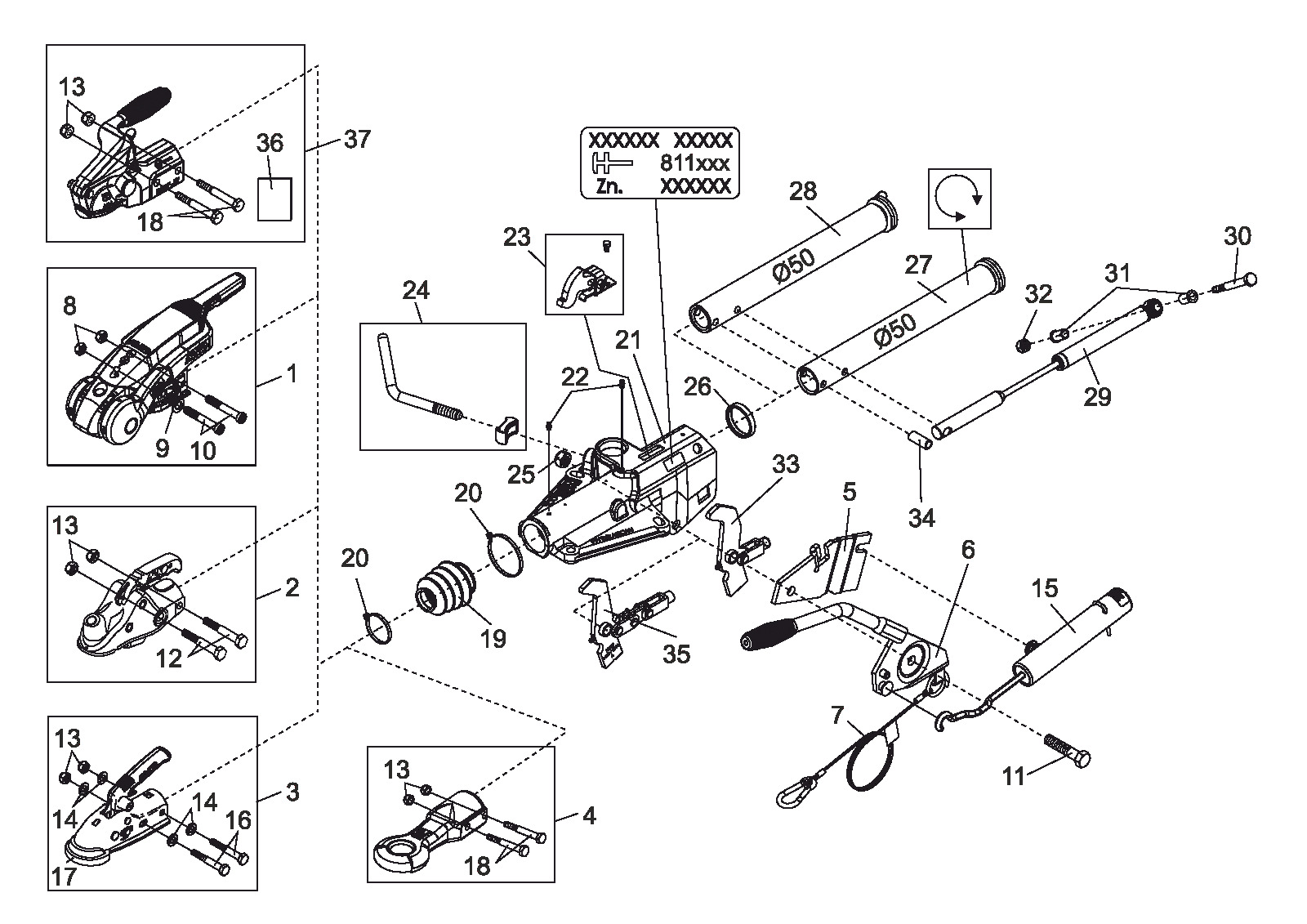

Technical drawing 811888
AL-KO ETI 811888
Technical details
Bradley | V-design | 64 | ball coupling and drawbar eye
ETI number
811888
Parts
45
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811888
Use the position number from the exploded drawing to find the correct spare part.
45 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1225158 | AKS3004 packed GA3000 | View 1225158 |
| 2 | 1224655 | Coupling AK301 with mounting parts | Enquire about this part |
| 3 | 1731444 | Coupling AK270 with mounting parts | Enquire about this part |
| 4 | 1213350 | Drawbar eye Ø40 with fixing material | Enquire about this part |
| 4 | 1224106 | Drawbar eye England Ø30 with fixing material | Enquire about this part |
| 4 | 1224107 | Drawbar eye England Ø40 with fixing material | Enquire about this part |
| 4 | 1224108 | Drawbar eye Italien Ø45 with fixing material | Enquire about this part |
| 4 | 1224109 | Drawbar eye England Ø50 with fixing material | Enquire about this part |
| 4 | 1224110 | Drawbar eye Frankreich Ø68 with fixing material | Enquire about this part |
| 4 | 1224111 | Drawbar eye NATO Ø76 with fixing material | View 1224111 |
| 4 | 1225076 | Drawbar eye Sweden with fixing material design A | Enquire about this part |
| 4 | 1730612 | Drawbar eye Ø50 with fixing material | Enquire about this part |
| 5 | 1356010 | Plate hand brake lever | Enquire about this part |
| 6 | 1356007 | Hand brake lever incl. brake away cable | Enquire about this part |
| 7 | 1356034 | Breakaway cable 920 mm length carabiner ring | Enquire about this part |
| 8 | 706437 | Self locking nut BIW M12 | View 706437 |
| 9 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 10 | 692034 | Bolt M12X78 at drawing | View 692034 |
| 11 | 706723 | Bolt UNF-0.625" x3.00"-HAT | Enquire about this part |
| 12 | 705442 | Hexagon screw M12x85 DIN 931 8.8 | View 705442 |
| 13 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 14 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 15 | 1356006 | Spring accumulator mounted RTB-3500-B-New | Enquire about this part |
| 16 | 705422 | Hexagon screw M12x80 DIN 931 8.8 | Enquire about this part |
| 17 | 693394 | Soft-dock black | View 693394 |
| 18 | 706080 | Hexagon screw M12x90 DIN 931 10.9 | Enquire about this part |
| 19 | 185004915 | Bellows H09-H26/EH09-EH27 | Enquire about this part |
| 20 | 701422 | Cable tie 360x4,8 black | Enquire about this part |
| 21 | ETK0005 | Housing | Enquire about this part |
| 22 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 23 | 185062215 | Stop-reverse assembly HU3 | Enquire about this part |
| 24 | 185066715 | Set-OD HU3-pad+handle+instruction | Enquire about this part |
| 25 | 706724 | Self locking nut UNF-0.625"THIN | Enquire about this part |
| 26 | 371372 | Damping rubber | View 371372 |
| 27 | 1356274 | Draw tube welded | Enquire about this part |
| 28 | 1356318 | Draw tube welded | Enquire about this part |
| 29 | 1356124 | Shock absorber assembly | Enquire about this part |
| 30 | 705421 | Hexagon screw M12x100 DIN 931 8.8 | Enquire about this part |
| 31 | 1356106 | Distance bush | Enquire about this part |
| 32 | 706741 | Self locking nut M12x1.75-HAT | Enquire about this part |
| 33 | 1356107 | Deflection lever cpl. | Enquire about this part |
| 34 | 647924 | Distance bush | Enquire about this part |
| 35 | 1356212 | Deflection lever cpl. | Enquire about this part |
| 36 | 1806647 | User manual coupling D5050K/MK4K | Enquire about this part |
| 37 | 185081815 | Bradley Head Kit 266 POST 2018 50mm | Enquire about this part |
