AL-KO ETI 811825 – Overrun device EURO 200V 2. generation rope special
Looking for spare parts for AL-KO ETI 811825? Below you will find the technical exploded drawing and complete parts list for Overrun device EURO 200V 2. generation rope special.
Go to parts listExploded drawing

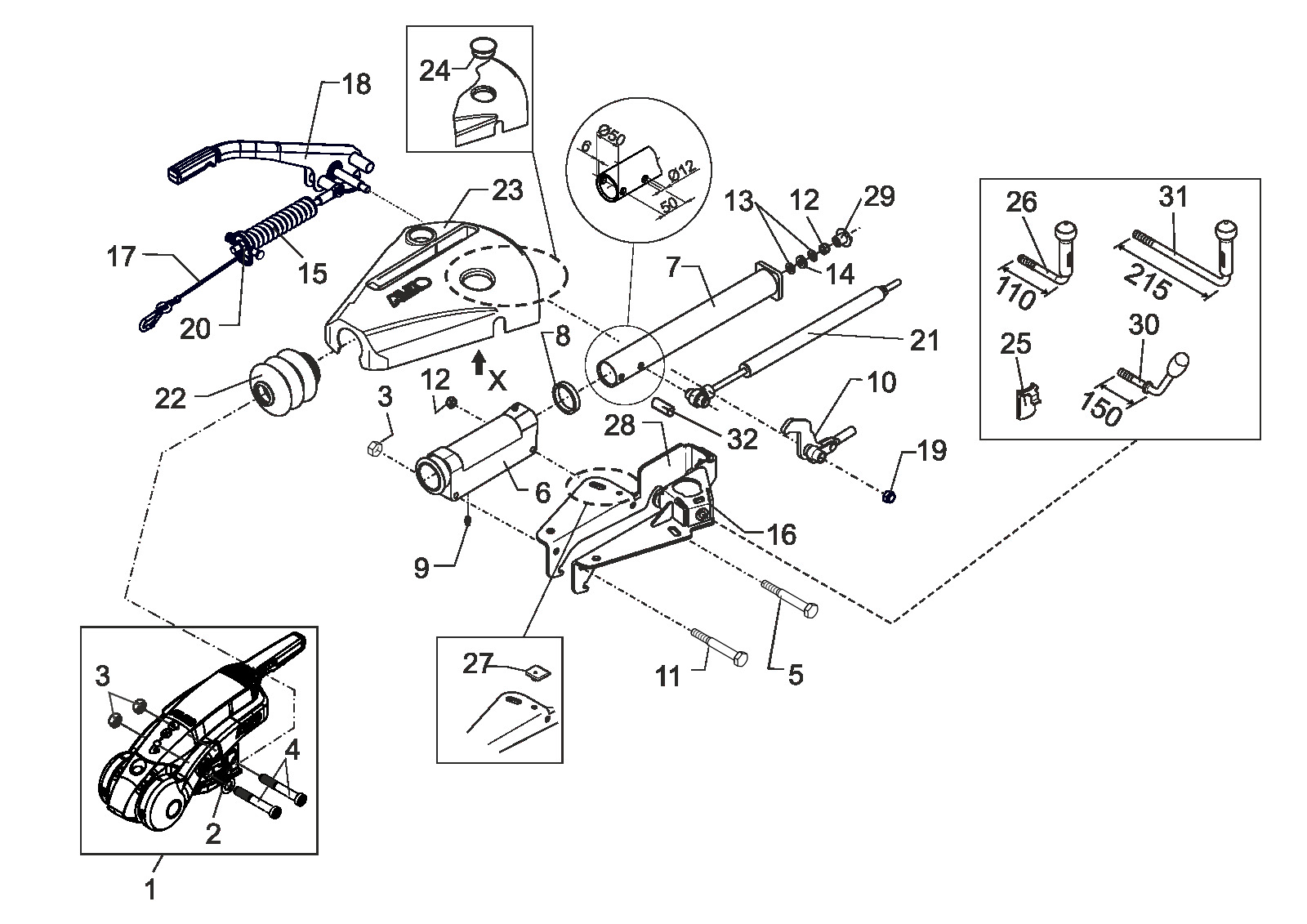

Technical drawing 811825
AL-KO ETI 811825
Technical details
AL-KO | EURO-design | 200V | dead center lever | AKS
ETI number
811825
Parts
34
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811825
Use the position number from the exploded drawing to find the correct spare part.
34 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1225158 | Stabiliser AKS3004 with Montageteile | View 1225158 |
| 2 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 3 | 706437 | Self locking nut BIW M12 | View 706437 |
| 4 | 692034 | Bolt M12X78 at drawing | View 692034 |
| 5 | 706700 | Hexagon screw M10x85 DIN 931 8.8 | Enquire about this part |
| 6 | 1351210 | Bearing cartridge M10-M12 mounted | View 1351210 |
| 7 | 643096 | Draw tube welded | View 643096 |
| 8 | 371372 | Damping rubber | View 371372 |
| 9 | 700204 | Conical grease nipple AS 8x1 DIN 71412 | View 700204 |
| 10 | 1352202 | Deflectionlever cpl. iH=90:27 | View 1352202 |
| 10 | 1352203 | Deflection lever cpl. iH=90:30 | Enquire about this part |
| 10 | 1352204 | Deflection lever cpl. iH=90:23 | Enquire about this part |
| 11 | 705442 | Hexagon screw M12x85 DIN 931 8.8 | View 705442 |
| 12 | 705519 | hexnut M10 DIN 985-10 | View 705519 |
| 13 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 14 | 643098 | Hard rubber washer | View 643098 |
| 15 | 648750 | Cylinder cpl. mounted overrun device 200V | View 648750 |
| 16 | 1351209 | Bracket left welded OD130/150/200V | View 1351209 |
| 17 | 1356034 | Breakaway cable 920 mm length carabiner ring | Enquire about this part |
| 18 | 1352070 | Hand brake lever incl. brake away cable 150/200V | Enquire about this part |
| 19 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 20 | 705379 | Hexnut M12 DIN 934-8 | Enquire about this part |
| 21 | 690388 | Shock Absorber 200V with Bush 37,5 | Enquire about this part |
| 22 | 607133 | Bellows SAFETY-packed | View 607133 |
| 23 | ETK0019 | Cover | Enquire about this part |
| 24 | 1312564 | Seal plug | Enquire about this part |
| 25 | 690182 | Pressure pad | View 690182 |
| 26 | 646423 | Clamp handle cpl. M12 | View 646423 |
| 27 | 690003 | End stop rubber | View 690003 |
| 28 | 1540140 | Bracket right OD200V | View 1540140 |
| 29 | 690393 | Wing nut plastic M10 | View 690393 |
| 30 | 610561 | Jockey wheel clamp handle - long | View 610561 |
| 31 | 1362330 | Clamp handle cpl. | View 1362330 |
| 32 | 647923 | Distance bush | Enquire about this part |
