AL-KO ETI 811823 – Overrun device V 251S AKS3004 Australia
Looking for spare parts for AL-KO ETI 811823? Below you will find the technical exploded drawing and complete parts list for Overrun device V 251S AKS3004 Australia.
Go to parts listExploded drawing

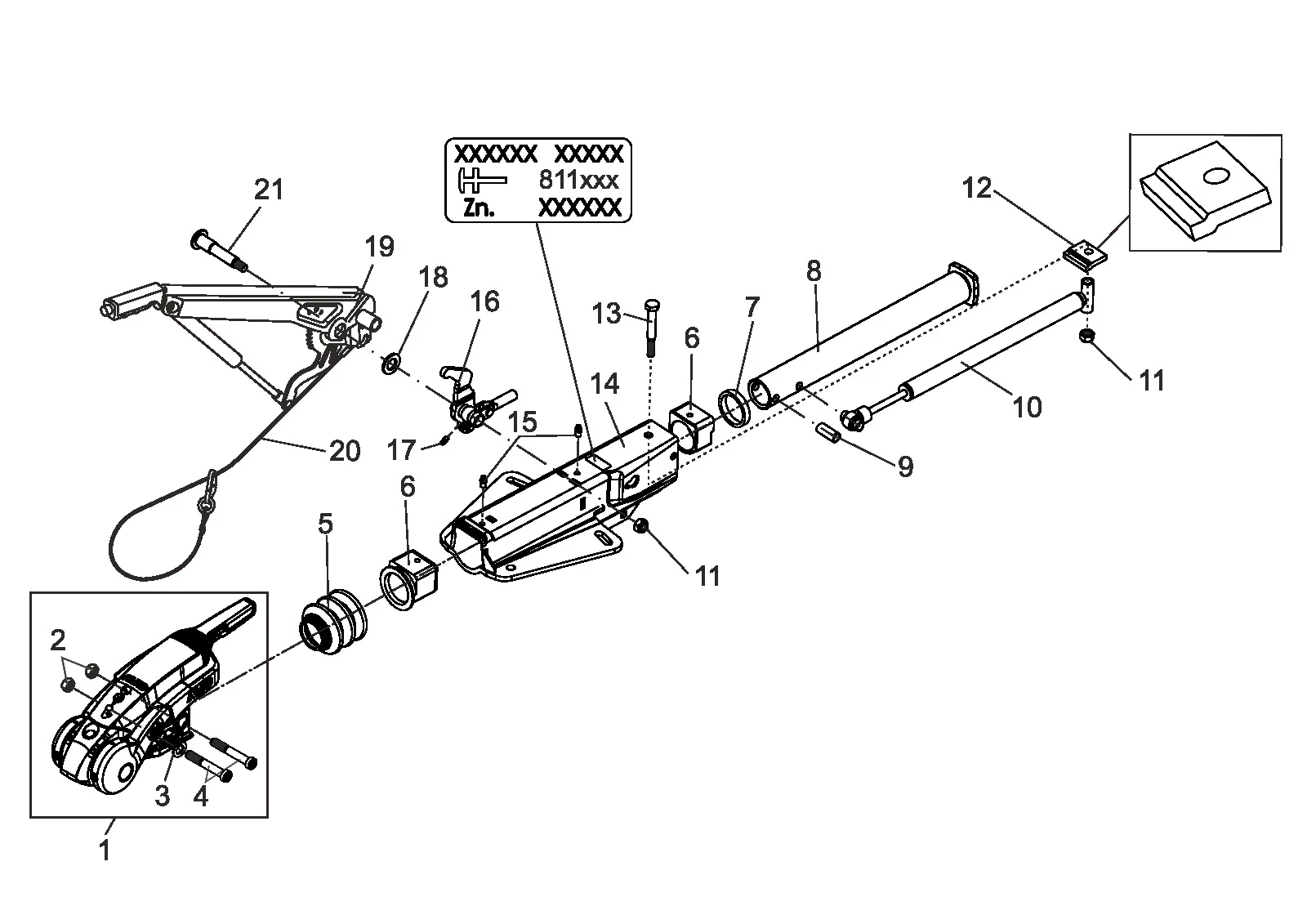

Technical drawing 811823
AL-KO ETI 811823
Technical details
AL-KO | V-design | 251S | with gas spring lever | AKS
ETI number
811823
Parts
23
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811823
Use the position number from the exploded drawing to find the correct spare part.
23 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1225158 | AKS3004 packed GA3000 | View 1225158 |
| 2 | 706437 | Self locking nut BIW M12 | View 706437 |
| 3 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 4 | 692034 | Bolt M12X78 at drawing | View 692034 |
| 5 | 607133 | Bellows SAFETY-packed | View 607133 |
| 6 | 1210131 | Spare part kit bushing overrun | View 1210131 |
| 7 | 371372 | Damping rubber | View 371372 |
| 8 | 1351731 | Draw tube welded | Enquire about this part |
| 9 | 647923 | Distance bush | Enquire about this part |
| 10 | 370589 | Shock absorber 251S | View 370589 |
| 11 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 12 | 581699 | Stop plate | View 581699 |
| 13 | 705434 | Hexagon screw M12x90 DIN 931 8.8 | View 705434 |
| 14 | ETK0005 | Housing | Enquire about this part |
| 15 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 16 | 380525 | Deflection lever cpl. UNI iH=90:27 | View 380525 |
| 16 | 380526 | Deflection lever cpl. UNI iH=90:30 | Enquire about this part |
| 16 | 380527 | Deflection lever cpl. UNI iH=90:33,5 | Enquire about this part |
| 17 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 18 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 19 | 220103 | Hand brake lever incl. brake away cable | Enquire about this part |
| 20 | 209385 | Breakaway cable 980 mm length sweden | Enquire about this part |
| 21 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
