AL-KO ETI 811787 – Overrun device V 251G top assembly

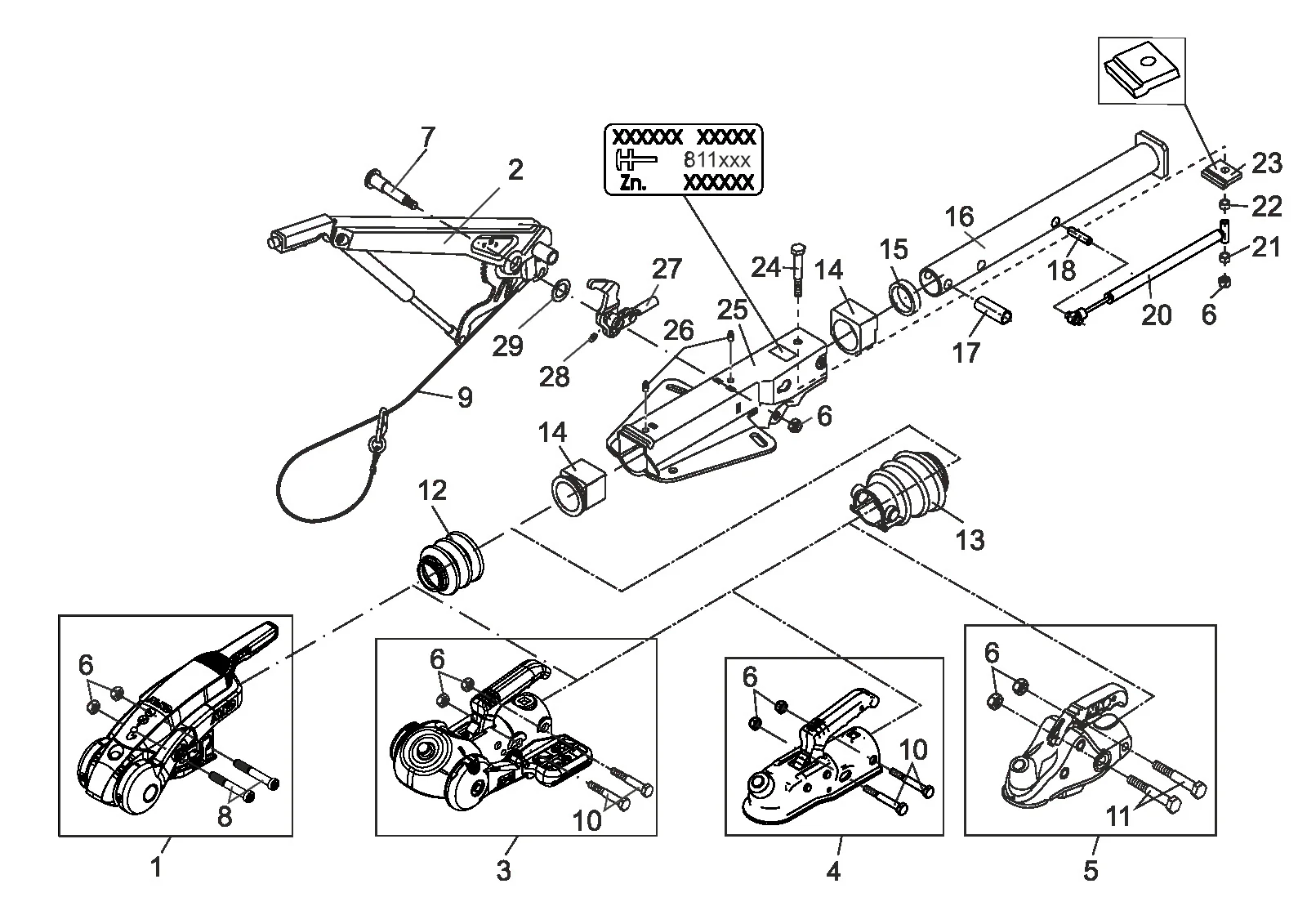

Looking for spare parts for AL-KO ETI 811787? Below you will find the technical exploded drawing and complete parts list for Overrun device V 251G top assembly.
Go to parts listExploded drawing
Technical drawing 811787
AL-KO ETI 811787
Technical details
AL-KO | V-design | 251G | with gas spring lever | ball coupling and AKS
ETI number
811787
Parts
35
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811787
Use the position number from the exploded drawing to find the correct spare part.
35 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1225158 | AKS3004 packed GA3000 | View 1225158 |
| 2 | 220098 | Hand brake lever incl. brake away cable 251S/G | View 220098 |
| 3 | 245796 | AKS1300 packed GA1360 RAL3003 | Enquire about this part |
| 4 | 626440 | Assembly groupcoupling 251G | Enquire about this part |
| 5 | 1350228 | Assembly groupcoupling | Enquire about this part |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 8 | 692034 | Bolt M12X78 at drawing | View 692034 |
| 9 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 10 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | Enquire about this part |
| 11 | 705442 | Hexagon screw M12x85 DIN 931 8.8 | View 705442 |
| 12 | 607133 | Bellows SAFETY-packed | View 607133 |
| 13 | 366356 | Bellows | View 366356 |
| 14 | 1210131 | Spare part kit bushing overrun | View 1210131 |
| 15 | 371372 | Damping rubber | View 371372 |
| 16 | 1351983 | Draw tube welded | View 1351983 |
| 17 | 647923 | Distance bush | Enquire about this part |
| 18 | 707262 | Clamping pin 12x48 ISO 8748-ST at drawing | Enquire about this part |
| 20 | 372641 | Shock absorber 251VB/251S/251G | View 372641 |
| 21 | 625646 | Distance bush | Enquire about this part |
| 21 | 647900 | Distance bush | Enquire about this part |
| 22 | 625400 | Distance bush | Enquire about this part |
| 22 | 647903 | Distance bush | Enquire about this part |
| 23 | 581699 | Stop plate | View 581699 |
| 23 | 625392 | Stop plate | Enquire about this part |
| 24 | 705434 | Hexagon screw M12x90 DIN 931 8.8 | View 705434 |
| 24 | 706348 | Hexagon screw M16x90 DIN 931 8.8 | Enquire about this part |
| 25 | ETK0005 | Housing | Enquire about this part |
| 26 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 27 | 626796 | Deflection lever cpl. iH=90:27 M12 | Enquire about this part |
| 27 | 626827 | Deflection lever cpl. iH=90:30 M12 | Enquire about this part |
| 27 | 626829 | Deflection lever cpl. iH=90:33,5 M12 | Enquire about this part |
| 27 | 648997 | Deflection lever cpl. iH=90:27 M10 | Enquire about this part |
| 28 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 29 | 370693 | Washer Ø19x34x3 | Enquire about this part |
