AL-KO ETI 807112 – Overrun device EURO-2 type 200 V for vertical load 100kg
Looking for spare parts for AL-KO ETI 807112? Below you will find the technical exploded drawing and complete parts list for Overrun device EURO-2 type 200 V for vertical load 100kg.
Go to parts listExploded drawing

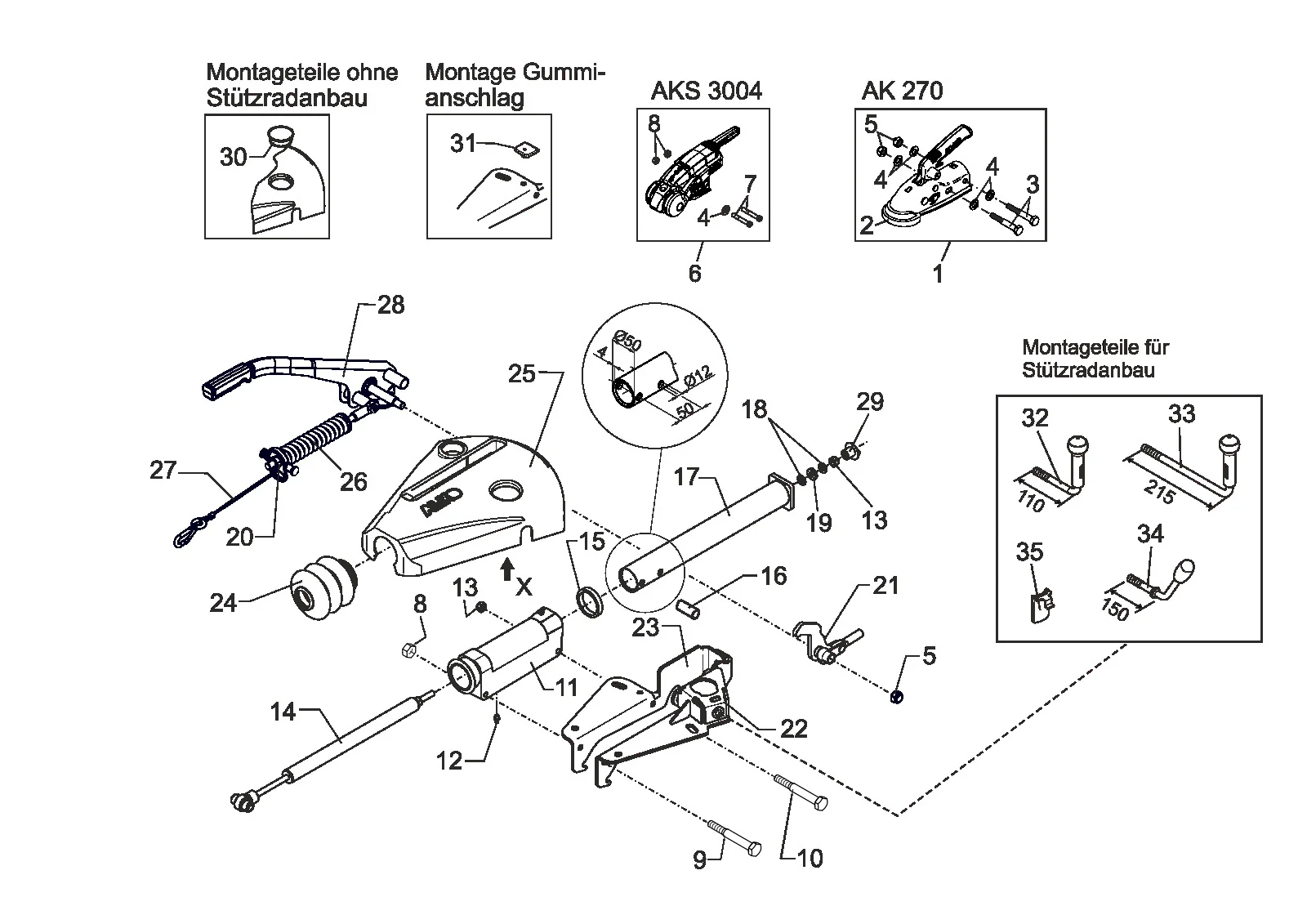

Technical drawing 807112
AL-KO ETI 807112
Technical details
AL-KO | EURO-design | 200V | dead center lever | ball coupling and AKS
ETI number
807112
Parts
38
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 807112
Use the position number from the exploded drawing to find the correct spare part.
38 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1730084 | Coupling head AK 270 with mounting parts + SAFETY-Kit | View 1730084 |
| 2 | 693394 | Soft-Dock black | View 693394 |
| 3 | 705422 | Hexagon screw M12x80 DIN 931 8.8 | Enquire about this part |
| 4 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 5 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 6 | 1225158 | Stabiliser AKS3004 with Montageteile | View 1225158 |
| 7 | 692034 | Bolt M12X78 at drawing | View 692034 |
| 8 | 706437 | Self locking nut BIW M12 | View 706437 |
| 9 | 705442 | Hexagon screw M12x85 DIN 931 8.8 | View 705442 |
| 10 | 706700 | Hexagon screw M10x85 DIN 931 8.8 | Enquire about this part |
| 11 | 1351210 | Bearing cartridge M10-M12 mounted | View 1351210 |
| 12 | 700204 | Conical grease nipple AS 8x1 DIN 71412 | View 700204 |
| 13 | 705519 | hexnut M10 DIN 985-10 | View 705519 |
| 14 | 1540522 | Shock Absorber 200V with Bush 41,7mm | View 1540522 |
| 15 | 371372 | Damping rubber | View 371372 |
| 16 | 647923 | Distance bush | Enquire about this part |
| 17 | 643095 | Draw tube welded | View 643095 |
| 18 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 19 | 643098 | Hard rubber washer | View 643098 |
| 20 | 705379 | Hexnut M12 DIN 934-8 | Enquire about this part |
| 21 | 1352202 | Deflectionlever cpl. iH=90:27 | View 1352202 |
| 21 | 1352203 | Deflection lever cpl. iH=90:30 | Enquire about this part |
| 21 | 1352204 | Deflection lever cpl. iH=90:23 | Enquire about this part |
| 22 | 1351209 | Bracket left welded OD130/150/200V | View 1351209 |
| 23 | 1540140 | Bracket right OD200V | View 1540140 |
| 24 | 366356 | Bellows | View 366356 |
| 24 | 607133 | Bellows SAFETY-packed | View 607133 |
| 25 | ETK0019 | Cover | Enquire about this part |
| 26 | 648750 | Cylinder cpl. mounted overrun device 200V | View 648750 |
| 27 | 1732798 | Breakaway cable 920 mm length carabiner ring | Enquire about this part |
| 28 | 648751 | Hand brake lever incl. brake away cable 150/200V | View 648751 |
| 29 | 690393 | Wing nut plastic M10 | View 690393 |
| 30 | 1312564 | Seal plug | Enquire about this part |
| 31 | 690003 | End stop rubber | View 690003 |
| 32 | 646423 | Clamp handle cpl. M12 | View 646423 |
| 33 | 1362330 | Clamp handle cpl. | View 1362330 |
| 34 | 610561 | Jockey wheel clamp handle - long | View 610561 |
| 35 | 690182 | Pressure pad | View 690182 |
