Henra 3-side tipper 2700kg 301x185

Henra 3-Sided Electric Tipper

All HENRA tippers are specially developed for the professional end user and thus for intensive use. HENRA therefore makes no compromise on quality. This ensures a long lifespan and great ease of use.

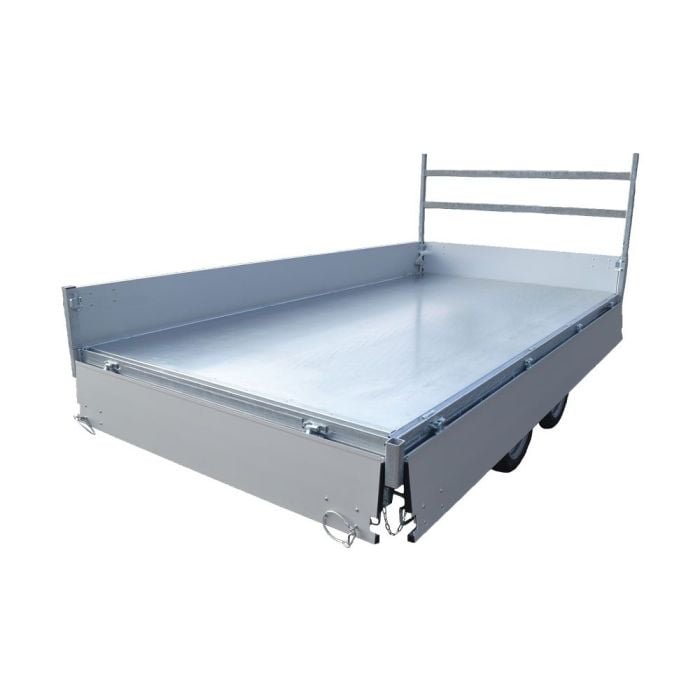

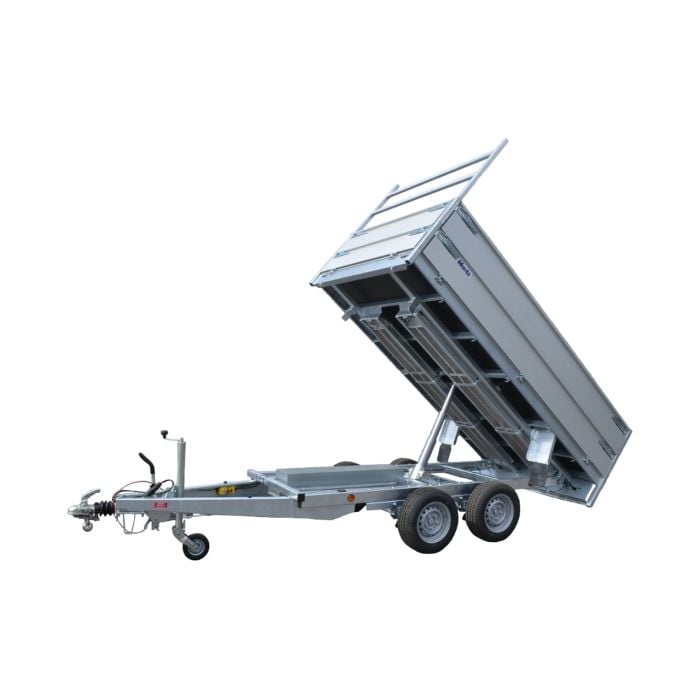

3-sided electric tipper equipped with a 5-stage tipping cylinder. Rearward and sideward tipping possible!
The strong cylinder has a 48-degree tipping angle (suitable up to 6100kg).

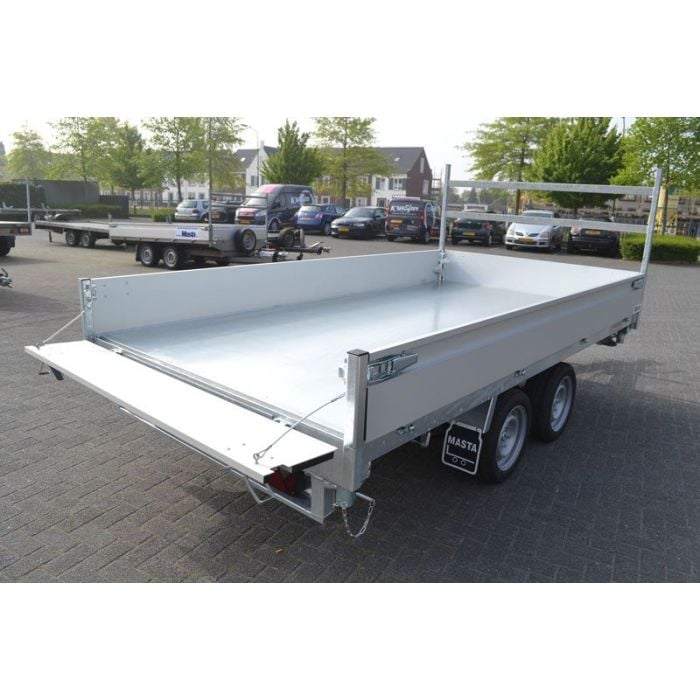

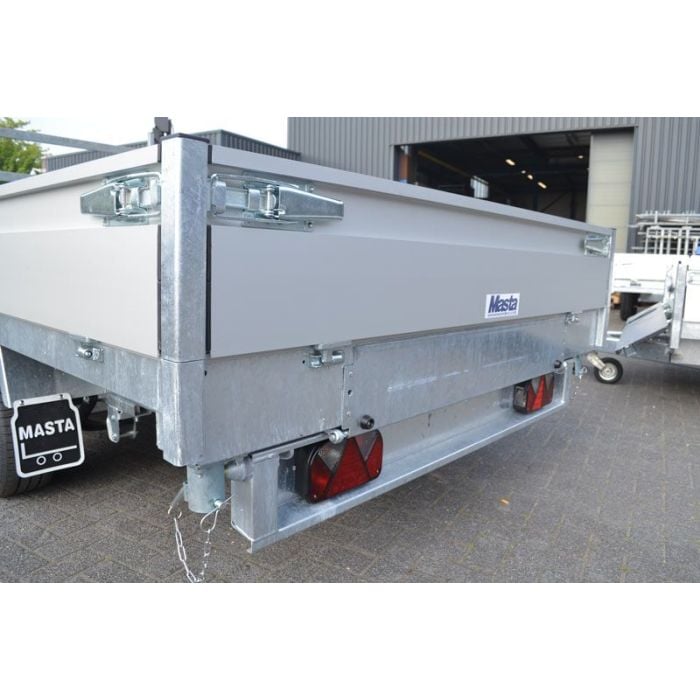

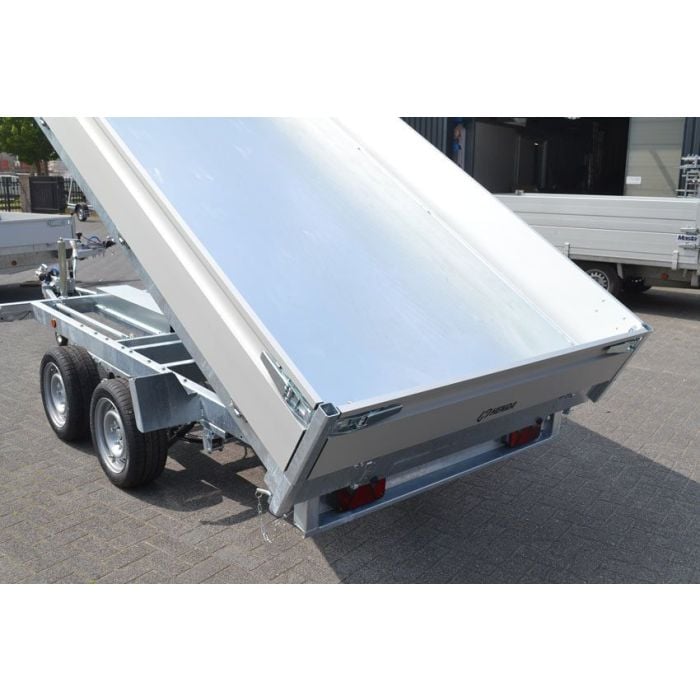

In the highest tipping position, the tailgate does not touch the ground and protects the taillights.

Dimensions:

The box length of this trailer is 301cm, the box width is 185cm. These dimensions are both measured on the inside of the box. The height of the loading floor is 71cm. The total length of the trailer is 456cm and the total width is 192cm.

Weight class:

The trailer has an own weight of about 890kg. The standard gross load capacity is 2700kg, resulting in a useful (net) load capacity of 1810kg (Permitted maximum mass - own weight = net load capacity).

License plate: The trailer is braked, gross heavier than 750kg and will therefore be provided with its own license plate.

Standard equipped with:

- 5-Stage tipping cylinder (48-degree tipping angle, suitable up to 6100kg)

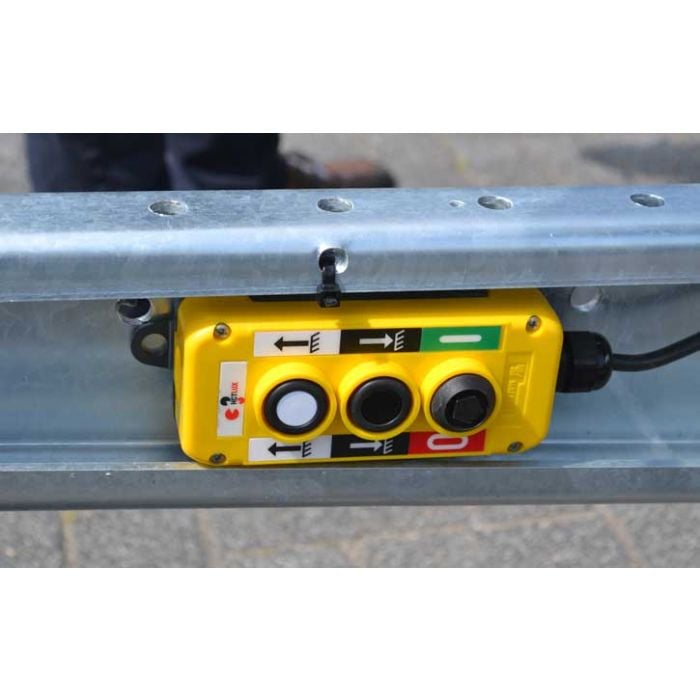

- Electric control with battery
- Main switch and a voltage meter

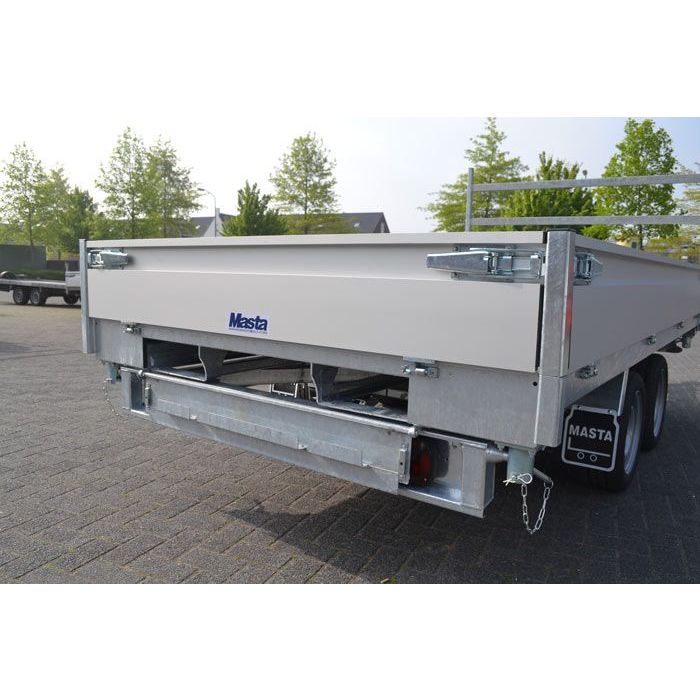

- Slide for loading ramps
- Steel floor plate of 3mm thick

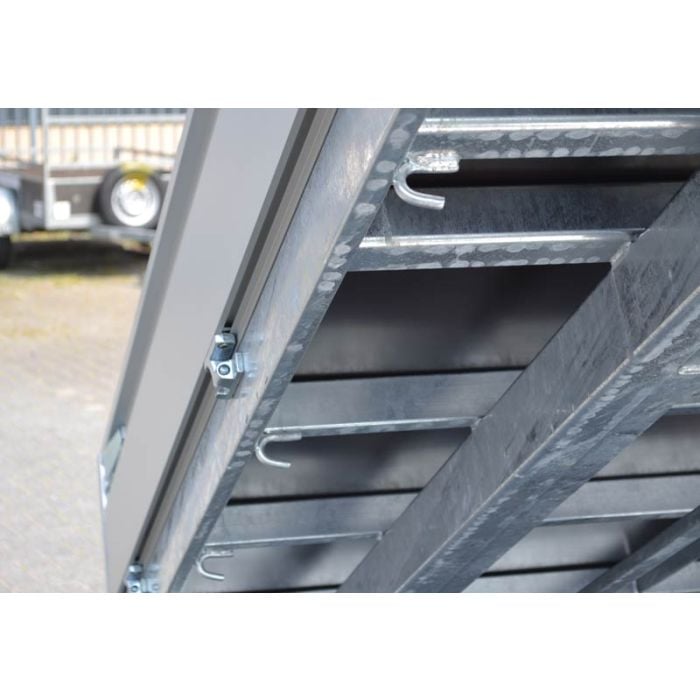

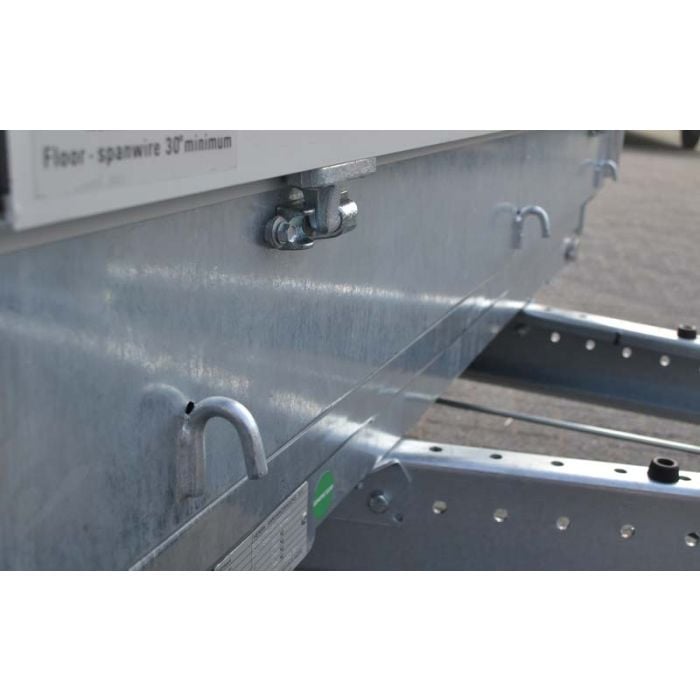

- Solidly welded rope hooks all around

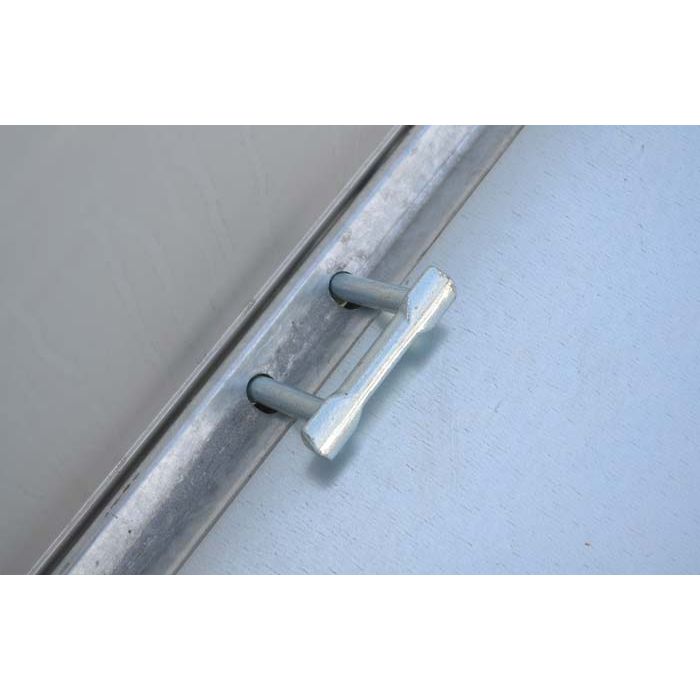

- Recessed tie-down hooks in loading floor
- 185/60R12 tires with black rims

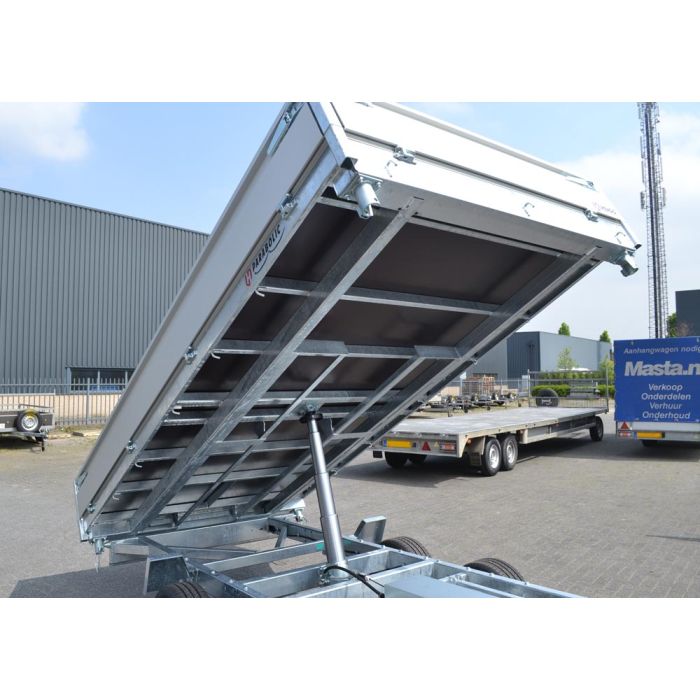

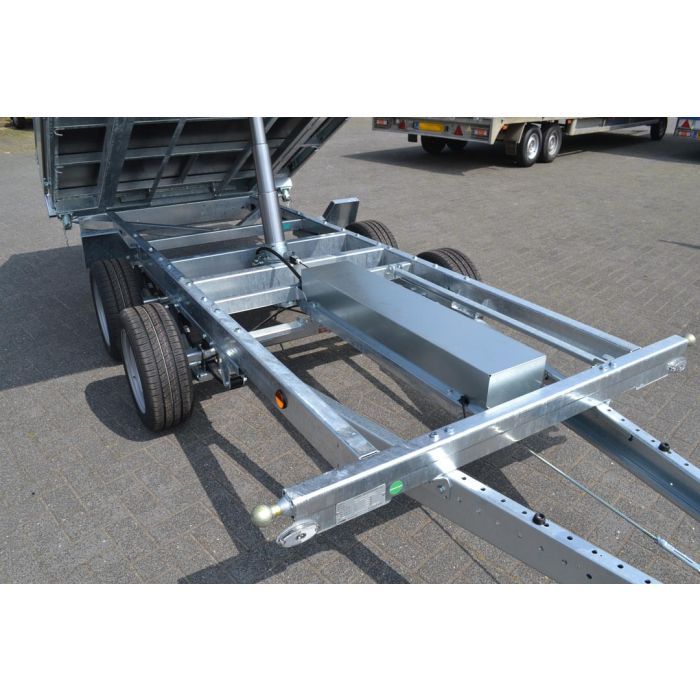

- Chassis equipped with crossbeams every 40cm

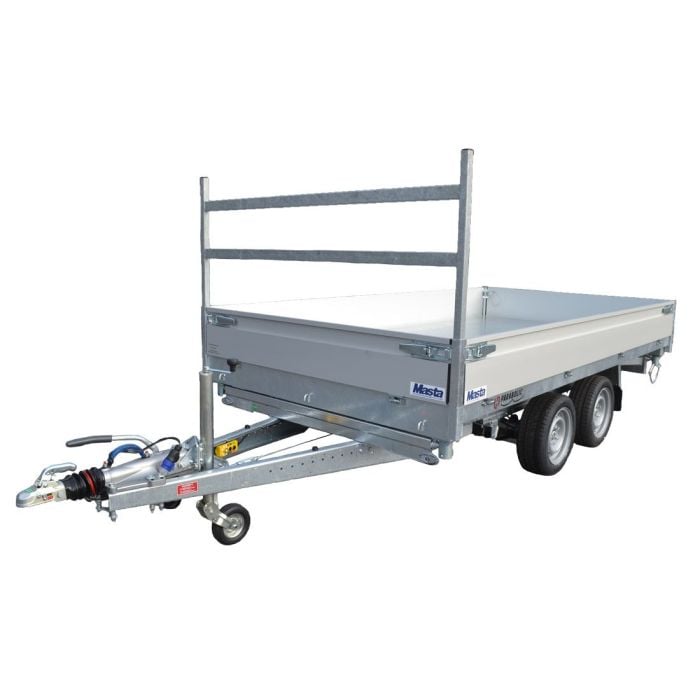

- Long drawbar for optimal road behavior

Henra Tipper XPERT

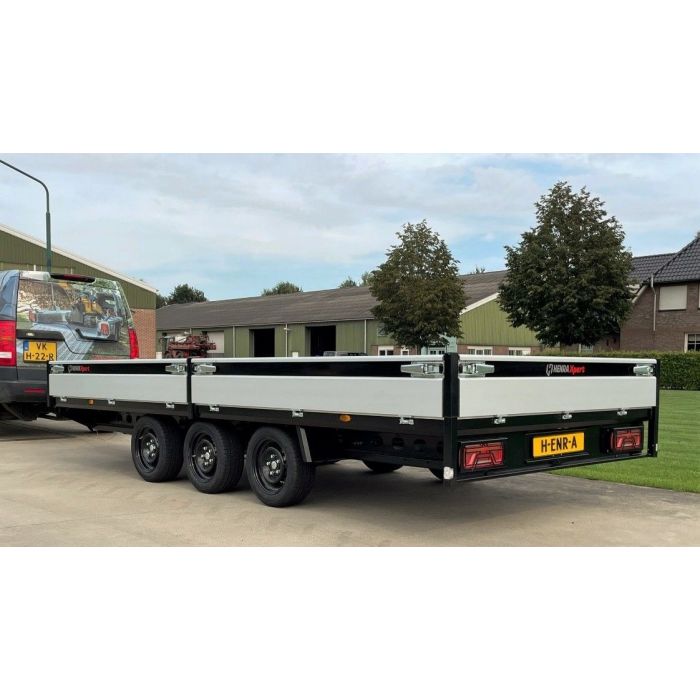

Option package XPERT: An option package for the Henra tippers that is based on safety, ease of use, and appearance. This package makes the tippers much more complete.

The Henra Tipper XPERT is equipped with the following options:

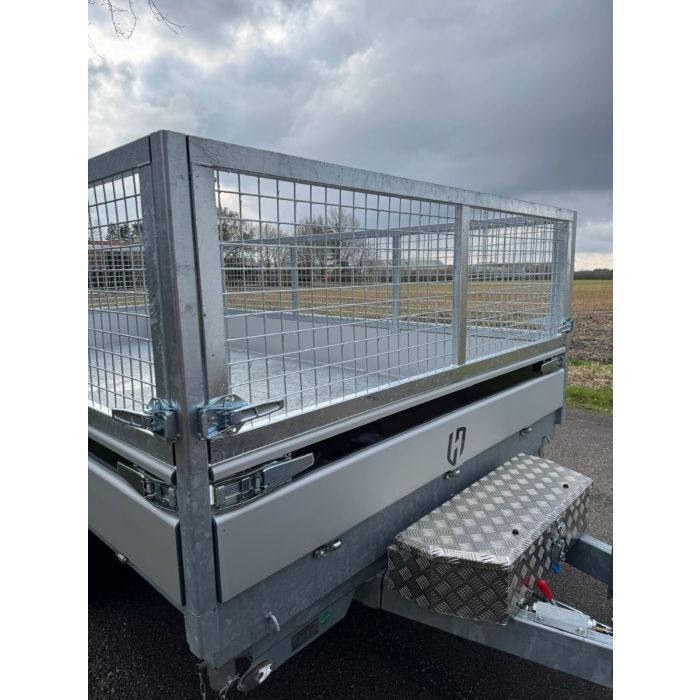

- Henra aluminum drawbar box
- Dynamic LED Taillights
- Taillight protectors *black powder coated
- Extra heavy jockey wheel 500kg
- Aluminum sides 30cm high with black striping
- Henra Xpert sticker on black foil for recognizability

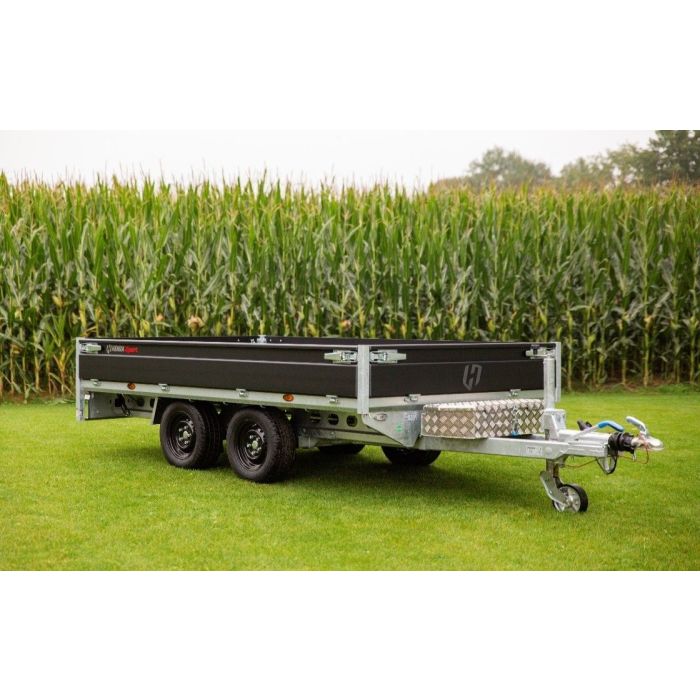

Henra Black Label

Option: Black Label version available for Henra flatbeds and tippers. For a small additional charge, you can have your trailers equipped with black aluminum sides (30cm high)! This gives your trailer a different look that definitely catches the eye!
- Black aluminum sides (30 cm high)
