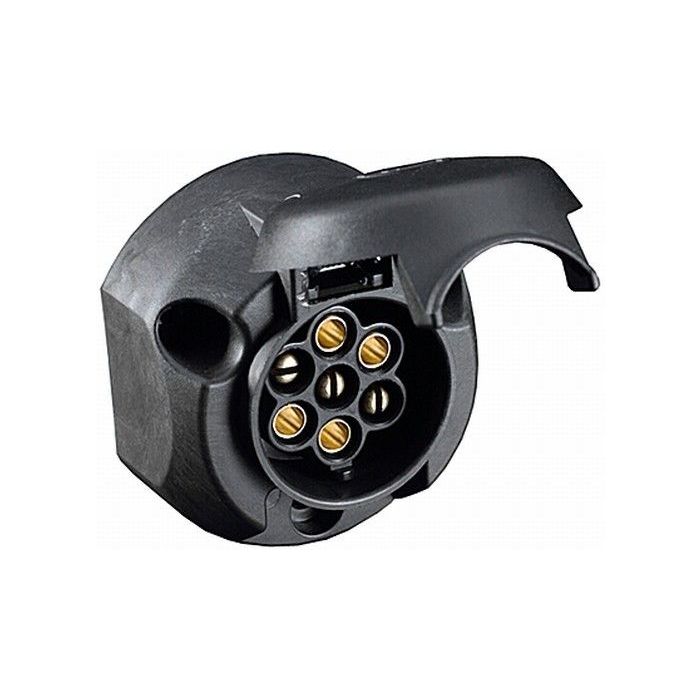

Hella socket 7-pin with fog light switch

Hella plug 7-pin with fog light failure

- Equipped with fog light failure, preventing the fog light on the car from turning on when a trailer or caravan is attached behind

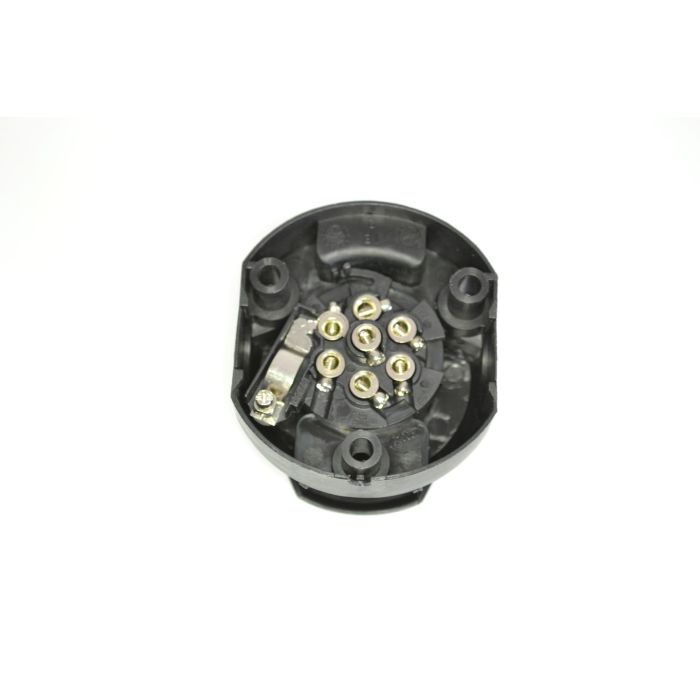

- Equipped with 7 + 1 (fog light failure) screw contacts

- Supplied without mounting materials

Hella part number: 8JB 001 943-011

Conductor cross-section: from 1.5mm²
Load capacity at 12V: 16A
Protection type: IP54
With screw connection
OE quality
Easy installation
7-pin plug system according to ISO 1724 (N-type)

The 7-pin plug system 12 V according to ISO 1724 / ISO 3732 is the most commonly used system for electrical connections between the towing vehicle and the trailer with a 12V electrical system. The system is primarily used for applications with moderate requirements. It consists of a standard connector, type N, according to ISO 1724, and an additional connector, type S, according to ISO 3732. The additional system differentiates itself from the standard system by the white housing, the contact inserts, and the interchangeable contact arrangement.
