AL-KO ETI 811979 – Wheel brake 1637 COMPACT wash-design 500kg M22
Looking for spare parts for AL-KO ETI 811979? Below you will find the technical exploded drawing and complete parts list for Wheel brake 1637 COMPACT wash-design 500kg M22.
Go to parts listExploded drawing

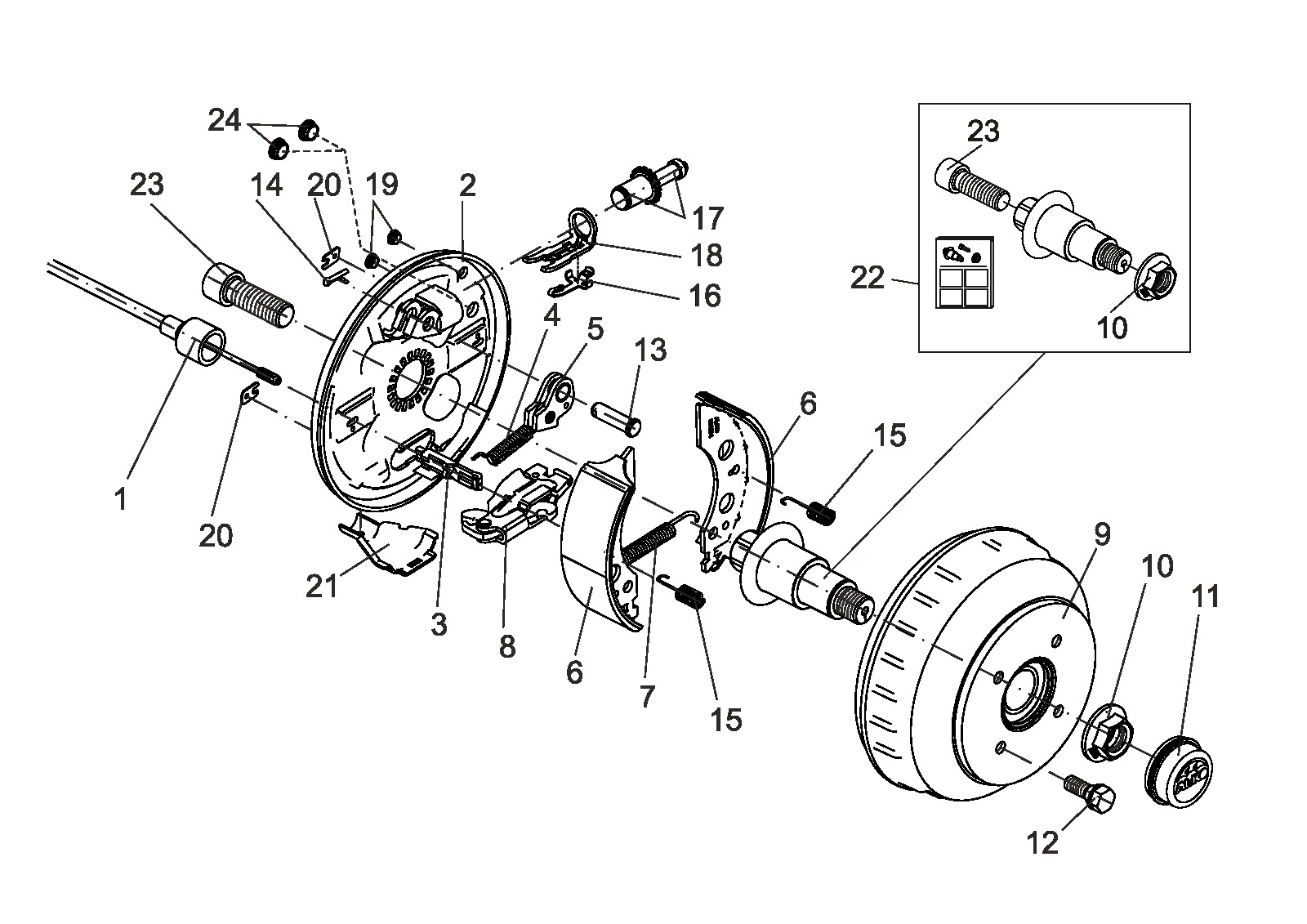

Technical drawing 811979
AL-KO ETI 811979
Technical details
AL-KO | Compact | 1637 | 500 kg
ETI number
811979
Parts
40
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811979
Use the position number from the exploded drawing to find the correct spare part.
40 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable COMPACT 350/546 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247282 | Bowden cable COMPACT 530/726 long PROFI LONG LIFE | View 247282 |
| 1 | 247283 | Bowden cable COMPACT 770/966 long PROFI LONG LIFE | View 247283 |
| 1 | 247284 | Bowden cable COMPACT 890/1086 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247285 | Bowden cable COMPACT 1020/1216 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247286 | Bowden cable COMPACT 1130/1326 long PROFI LONG LIFE | View 247286 |
| 1 | 247287 | Bowden cable 1320/1516 long PROFI LONG LIFE | View 247287 |
| 1 | 247288 | Bowden cable COMPACT 1430/1626 long PROFI LONG LIFE | Enquire about this part |
| 1 | 247289 | Bowden cable COMPACT 1620/1816 long PROFI LONG LIFE | View 247289 |
| 1 | 247290 | Bowden cable COMPACT 1790/1986 long PROFI LONG LIFE | Enquire about this part |
| 2 | 1362874 | Braking plate welded leftt 1637 wash-design | Enquire about this part |
| 2 | 1362875 | Braking plate welded right 1637 wash-design | Enquire about this part |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 2188870001 | Tension spring left | View 2188870001 |
| 5 | 384308 | Auto reserve lever cpl. left | Enquire about this part |
| 5 | 384309 | Auto reserve lever cpl. right | Enquire about this part |
| 6 | 1213885 | Set brake jaw for one axle Achse 1637 | View 1213885 |
| 7 | 2182150003 | Tension spring | View 2182150003 |
| 8 | 570666 | Spread hinge lock cpl. | Enquire about this part |
| 9 | 1656572 | Brake drum cpl. 100x4 waterproofed | Enquire about this part |
| 9 | 1659202 | Brake drum cpl. 98x4 waterproofed | Enquire about this part |
| 9 | 1659203 | Brake drum cpl. 112x5 waterproofed | Enquire about this part |
| 9 | 1731335 | Spare parts set bearing wheel brake 1637 waterproofed | Enquire about this part |
| 9 | 1806479 | Brake drum cpl. 130x4 waterproofed | Enquire about this part |
| 10 | 581200 | Flange nut M24x1,5 | View 581200 |
| 11 | 1313924 | End cap waterproofed Ø57 | View 1313924 |
| 12 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 12 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 13 | 368651 | Bearing bolt | Enquire about this part |
| 14 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 15 | 2088800003 | Compression spring | Enquire about this part |
| 16 | 368405 | Compound spring | View 368405 |
| 17 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 18 | 368361 | Bow pressure | View 368361 |
| 19 | 373245 | Plug RAL6002 | View 373245 |
| 20 | 2382610002 | Cover plate | Enquire about this part |
| 21 | 371387 | Brake cable shell | Enquire about this part |
| 22 | 1806326 | Stub axle wheel brake 1637 | Enquire about this part |
| 23 | 706900 | Cylinder screw M22X60 DIN 912 at drawing | Enquire about this part |
| 24 | 693099 | Seal plug | Enquire about this part |
