AL-KO ETI 811961 – Wheel brake 2051Ab readjustment AAA M22

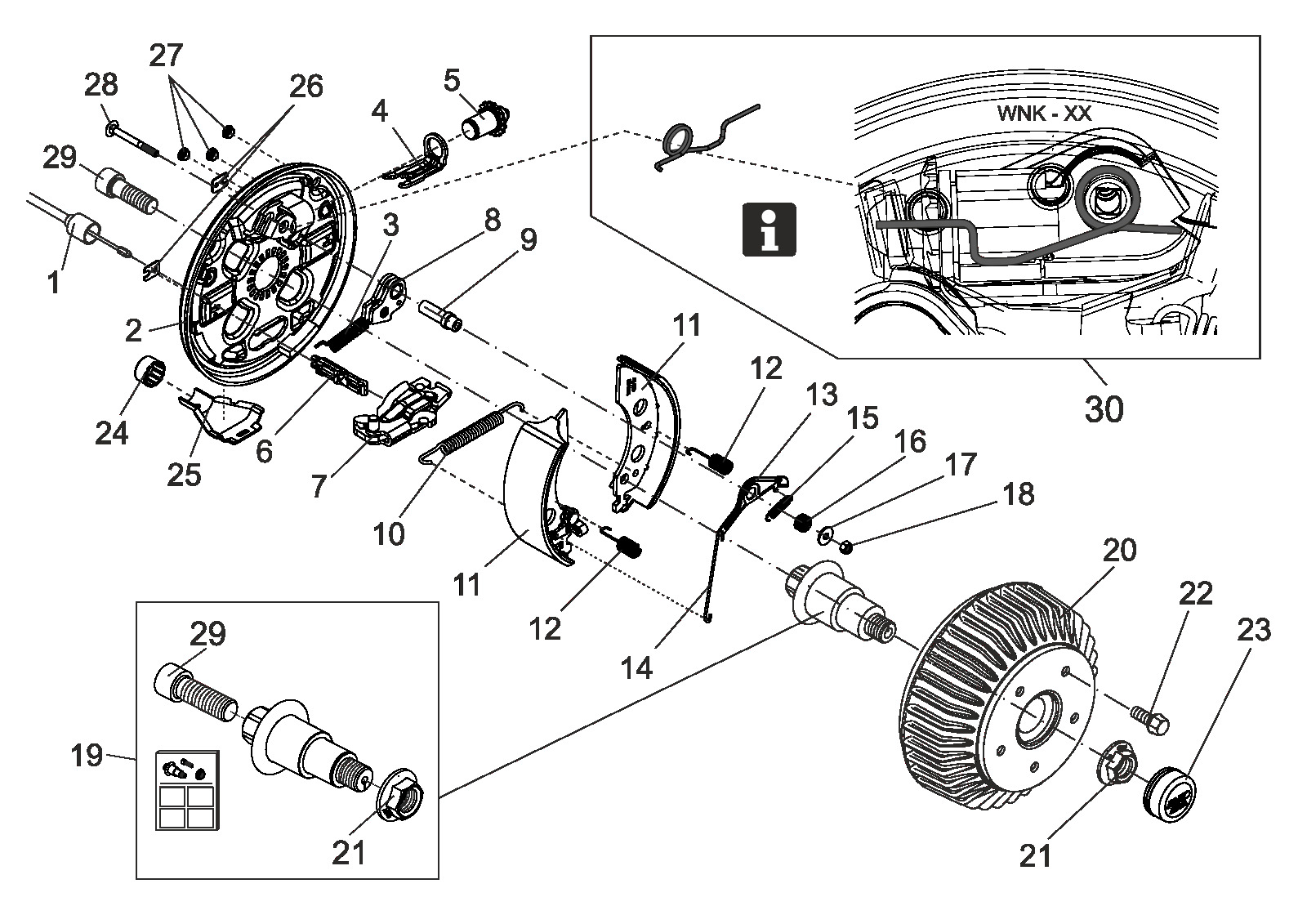

Looking for spare parts for AL-KO ETI 811961? Below you will find the technical exploded drawing and complete parts list for Wheel brake 2051Ab readjustment AAA M22.
Go to parts listExploded drawing
Technical drawing 811961
AL-KO ETI 811961
Technical details
AL-KO | Compact | 2051Ab | 750 kg
ETI number
811961
Parts
49
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811961
Use the position number from the exploded drawing to find the correct spare part.
49 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable PROFI LONG LIFE 350/546 | Enquire about this part |
| 1 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 1 | 247283 | Bowden cable PROFI LONG LIFE 770/966 | View 247283 |
| 1 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 1 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 1 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 1 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 1 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 1 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 1 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 2 | 1650403 | Braking plate welded left 2051 AAA | Enquire about this part |
| 2 | 1650404 | Braking plate welded right2051 AAA | Enquire about this part |
| 3 | 2187370003 | Tension spring | View 2187370003 |
| 4 | 368361 | Bow pressure | View 368361 |
| 5 | 1650416 | Regulation unit left wheel brake 2051/2361 AAA | Enquire about this part |
| 5 | 1650417 | Regulation unit right wheel brake2051/2361 AAA | Enquire about this part |
| 6 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 7 | 1650407 | Spread hinge lock cpl. 2051/2361 left AAA | Enquire about this part |
| 7 | 1650408 | Spread hinge lock cpl. 2051/2361 right AAA | Enquire about this part |
| 8 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 8 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 9 | 1650429 | Bearing bolt 2051/2361 AAA | Enquire about this part |
| 10 | 2082000007 | Tension spring | View 2082000007 |
| 11 | 1730057 | Spare parts set brake shoe 2051 AAA | View 1730057 |
| 12 | 2088800003 | Compression spring | Enquire about this part |
| 13 | 1650468 | Adjusting lever left2051 AAA | View 1650468 |
| 13 | 1650469 | Adjusting lever right2051 AAA | View 1650469 |
| 14 | 1650474 | Connecting wire 2051 AAA | View 1650474 |
| 15 | 1651237 | Tension spring 2051/2361 AAA | View 1651237 |
| 16 | 694449 | Compression spring 2051/2361 AAA | View 694449 |
| 17 | 705405 | washer 6,4 DIN 9021-ST | Enquire about this part |
| 18 | 706012 | hexnut M6 DIN 980-V-8 | Enquire about this part |
| 19 | 1732673 | Spare parts set stub axle unbraked bearing Ø39 M22 | Enquire about this part |
| 20 | 578825 | Brake drum cpl. 140x5-M14x1,5 at 750 kg | View 578825 |
| 20 | 1224803 | Spare parts set bearing wheel brake (Ø72/Ø39/37) 2051 1500kg | View 1224803 |
| 20 | 1932110 | Spare parts set brake drum 2051 cpl. with bearing; 112x5 - M12x1,5 | View 1932110 |
| 21 | 581200 | Flange nut M24x1.5 | View 581200 |
| 22 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 22 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 22 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 23 | 1651768 | Sealing cap Ø57 AAA | Enquire about this part |
| 24 | 371389 | Protective cap | Enquire about this part |
| 25 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 26 | 2382610002 | Cover plate | Enquire about this part |
| 27 | 694430 | Plug RAL3000 | Enquire about this part |
| 28 | 706316 | Round-head screw M6x60 DIN 603 8.8 | Enquire about this part |
| 29 | 706900 | Cylinder screw M22X60 DIN 912 at drawing | Enquire about this part |
| 30 | 1806463 | Centering bracket left 2051/2361AAA | Enquire about this part |
| 30 | 1807220 | Centering bracket right 2051/2361AAA | Enquire about this part |
