AL-KO ETI 811959 – Wheel brake 2051Aa redirection 90° special design M22
Looking for spare parts for AL-KO ETI 811959? Below you will find the technical exploded drawing and complete parts list for Wheel brake 2051Aa redirection 90° special design M22.
Go to parts listExploded drawing

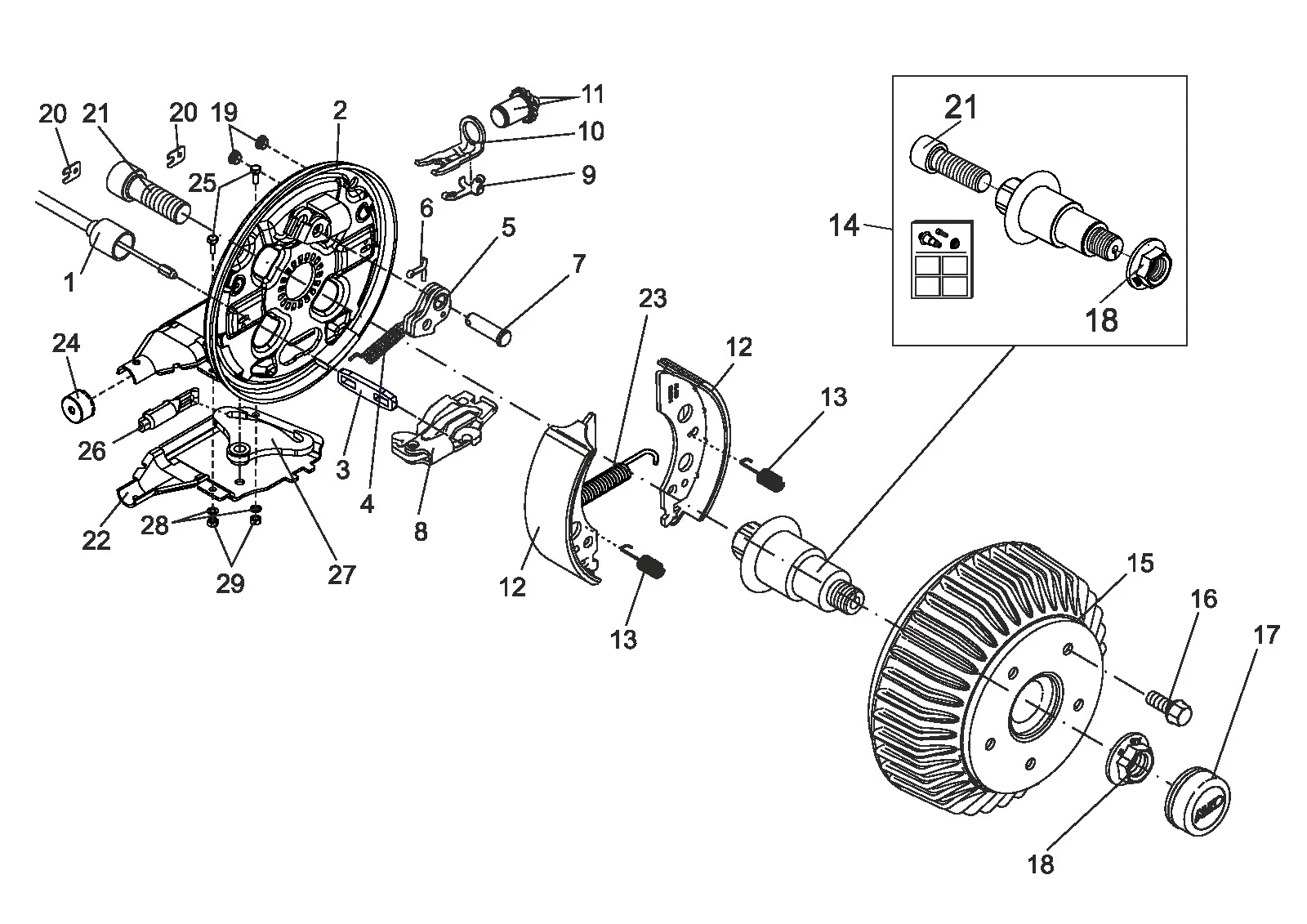

Technical drawing 811959
AL-KO ETI 811959
Technical details
AL-KO | Compact | 2051A | 650 kg
ETI number
811959
Parts
46
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811959
Use the position number from the exploded drawing to find the correct spare part.
46 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable PROFI LONG LIFE 350/546 | Enquire about this part |
| 1 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 1 | 247283 | Bowden cable PROFI LONG LIFE 770/966 | View 247283 |
| 1 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 1 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 1 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 1 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 1 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 1 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 1 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 2 | 1367146 | Braking plate welded left 2051 | Enquire about this part |
| 2 | 1367147 | Braking plate welded right 2051 | Enquire about this part |
| 3 | 1935303 | Connecting eye special | Enquire about this part |
| 4 | 2187370003 | Tension spring | View 2187370003 |
| 5 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 5 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 6 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 7 | 368651 | Bearing bolt | Enquire about this part |
| 8 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 9 | 368405 | Compound spring | View 368405 |
| 10 | 368361 | Bow pressure | View 368361 |
| 11 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 12 | 1224783 | Spare parts set brake shoe axle wheel brake 2051 | View 1224783 |
| 13 | 2088800003 | Compression spring | Enquire about this part |
| 14 | 1732671 | Spare parts set stub axle unbraked bearing Ø34 M22 | View 1732671 |
| 15 | 1932111 | Spare parts set brake drum 2051 cpl. with bearing; 98x4 - M12x1,5 | View 1932111 |
| 15 | 1932112 | Spare parts set brake drum 2051 cpl. with bearing; 100x4 - M12x1,5 | View 1932112 |
| 15 | 1224801 | Spare parts set bearing wheel brake (Ø64/Ø34/37) 2051 1350Kg | View 1224801 |
| 15 | 1932113 | Spare parts set brake drum 2051 cpl. with bearing; 112x5 - M12x1,5 | View 1932113 |
| 16 | 372138 | Wheel bolt sperical M12x1,5 x25 | Enquire about this part |
| 16 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 16 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 17 | 581197 | Sealing cap Ø57 | View 581197 |
| 18 | 581200 | Flange nut M24x1.5 | View 581200 |
| 19 | 373245 | Plug RAL6002 | View 373245 |
| 20 | 2382610002 | Cover plate | Enquire about this part |
| 21 | 706900 | Cylinder screw M22X60 DIN 912 at drawing | Enquire about this part |
| 22 | 690822 | Shell welded left cpl. | Enquire about this part |
| 22 | 690823 | Shell welded right cpl. | Enquire about this part |
| 23 | 1362597 | Tension spring | Enquire about this part |
| 24 | 371389 | Protective cap | Enquire about this part |
| 25 | 706240 | Hexagon screw M5x12 DIN 933 8.8 | Enquire about this part |
| 26 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 27 | 692415 | Deflection lever | Enquire about this part |
| 28 | 706443 | Spring lock washer B 5 DIN 127 | Enquire about this part |
| 29 | 705482 | Hexnut M5 DIN 934-8 | Enquire about this part |
