AL-KO ETI 811924 – Overrun device 270VB BASIC with handle
Looking for spare parts for AL-KO ETI 811924? Below you will find the technical exploded drawing and complete parts list for Overrun device 270VB BASIC with handle.
Go to parts listExploded drawing

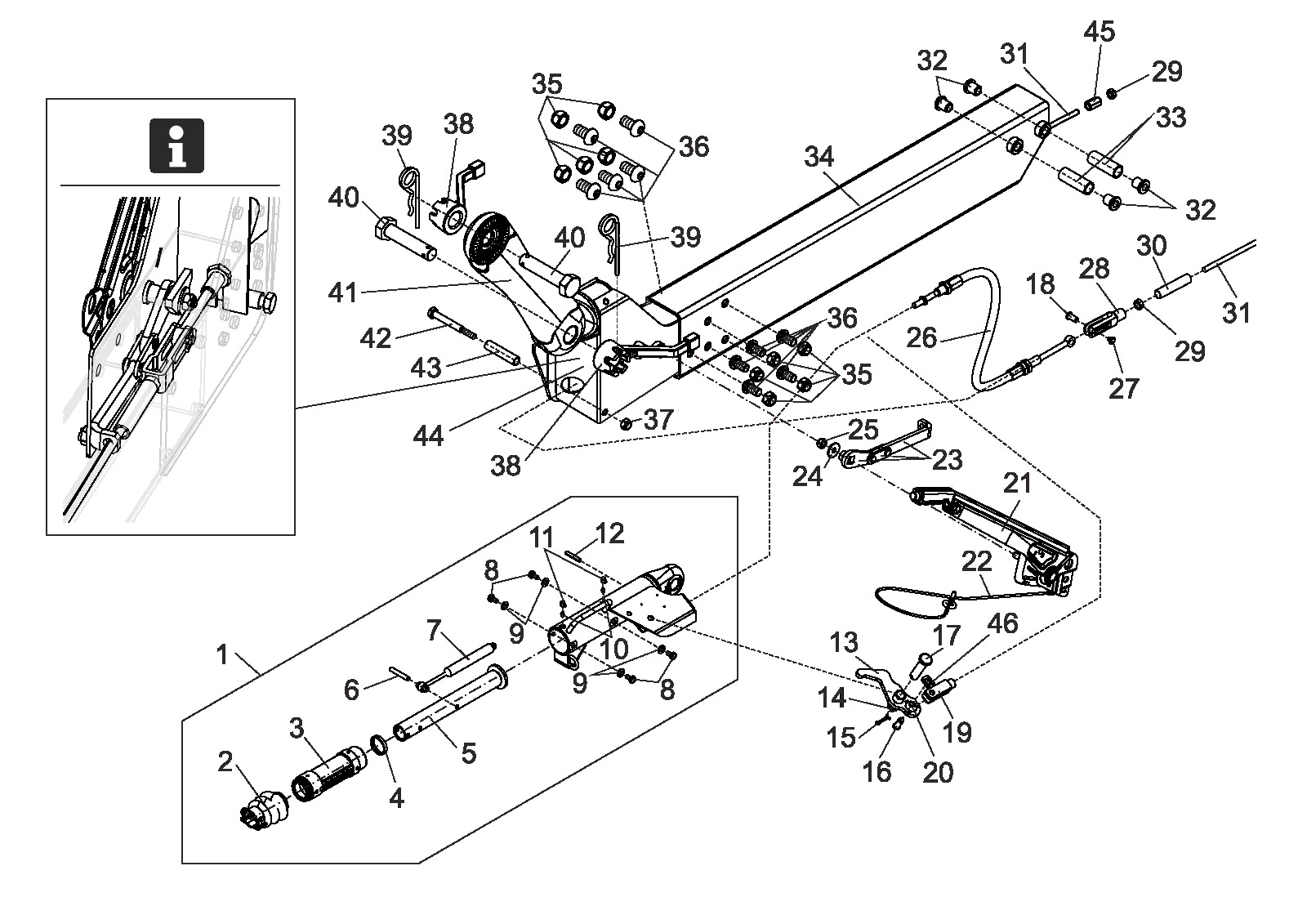

Technical drawing 811924
AL-KO ETI 811924
Technical details
AL-KO | height-adjustable | 270VB BASIC | with gas spring lever | without ball coupling parts
ETI number
811924
Parts
48
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811924
Use the position number from the exploded drawing to find the correct spare part.
48 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1809995 | Overrun device 270VB BASIC with handle | Enquire about this part |
| 1 | 1809996 | Overrun device 270VB BASIC with handle | Enquire about this part |
| 2 | 366356 | Bellows | View 366356 |
| 3 | 1376762 | Bearing cartridge | Enquire about this part |
| 4 | 371372 | Damping rubber | View 371372 |
| 5 | 694938 | Draw tube welded | Enquire about this part |
| 6 | 701256 | snap hook 12x75 DIN 1481 | Enquire about this part |
| 7 | 1206342 | Shock absorber 270VB | Enquire about this part |
| 8 | 706377 | Hexagon screw M12x20 DIN 933 8.8 | Enquire about this part |
| 9 | 706300 | Washer 12 DIN 1440 | Enquire about this part |
| 10 | L2035820 | Grease nipple AM8X1 Kegel DIN 71412 | Enquire about this part |
| 11 | L13995115 | Cap | Enquire about this part |
| 12 | 1548013 | snap hook 10x60 DIN 1481 | Enquire about this part |
| 13 | 694932 | Deflection lever welded | Enquire about this part |
| 14 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 15 | 701035 | Split pin 4x28 DIN 94 | Enquire about this part |
| 16 | 625761 | Bolt | Enquire about this part |
| 17 | 706520 | Bolt B16 H11x65X59,0 EN2341 | Enquire about this part |
| 18 | 1808986 | Screw M6 with shoulder | Enquire about this part |
| 19 | 1368206 | Fork head 10X45 DIN 71752 at drawing | Enquire about this part |
| 20 | 647241 | Triangle segment for deflection lever | View 647241 |
| 21 | 694931 | Hand brake lever incl. brake away cable 160/270VB BASIC | Enquire about this part |
| 22 | 368605 | Breakaway cable with hooks 950 mm length for common commercial trailers | View 368605 |
| 23 | 694927 | Deflection lever cpl. VB-BASIC | Enquire about this part |
| 24 | 705494 | washer 10,5 DIN 9021-ST | Enquire about this part |
| 25 | 705519 | hexnut M10 DIN 985-10 | View 705519 |
| 26 | 1231867 | bowden cable with threaded bolt M10 / drawbar | Enquire about this part |
| 27 | 1808987 | Bearing bolt | Enquire about this part |
| 28 | 1808985 | Fork head welded | Enquire about this part |
| 29 | 705378 | Hexnut M10 DIN 934-8 | View 705378 |
| 30 | 1564576 | Bush Ø18,0x2,5 x105 | Enquire about this part |
| 31 | 353314 | Brake rod M10x1150 | Enquire about this part |
| 32 | 1311914 | Flanged bush 252/353VB-2 | Enquire about this part |
| 33 | 1311910 | Bush Ø32x3,5x89 | Enquire about this part |
| 34 | ETK0022 | Drawbar | Enquire about this part |
| 35 | 706013 | hexnut M16 DIN 985-10 | Enquire about this part |
| 36 | 1800040 | Flat head screw M16x30 ISO 7380 8.8 | Enquire about this part |
| 37 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 38 | 1800035 | Clamp handle M27x1,5 | Enquire about this part |
| 39 | 604103 | Spring cotter pin with chain | Enquire about this part |
| 40 | 1800083 | Bearing screw M27x1,5x118 | Enquire about this part |
| 41 | 1548007 | Spacer side arm 160/270VB | Enquire about this part |
| 42 | 705420 | Hexagon screw M12x110 DIN 931 8.8 | Enquire about this part |
| 43 | 603756 | Bush Ø18,0x2,5 x77 | Enquire about this part |
| 44 | 1548008 | Adapter 270VB black painted | Enquire about this part |
| 44 | 1656676 | Adapter 270VB electrolytically galvanised | Enquire about this part |
| 45 | 706154 | Hexnut M 10 3D DIN 6334 | Enquire about this part |
| 46 | 706336 | Lock washer SL 10 SXN 08 | Enquire about this part |
