AL-KO ETI 811916 – Overrun device V PROFI 3500 AK351 pipe 60x8
Looking for spare parts for AL-KO ETI 811916? Below you will find the technical exploded drawing and complete parts list for Overrun device V PROFI 3500 AK351 pipe 60x8.
Go to parts listExploded drawing

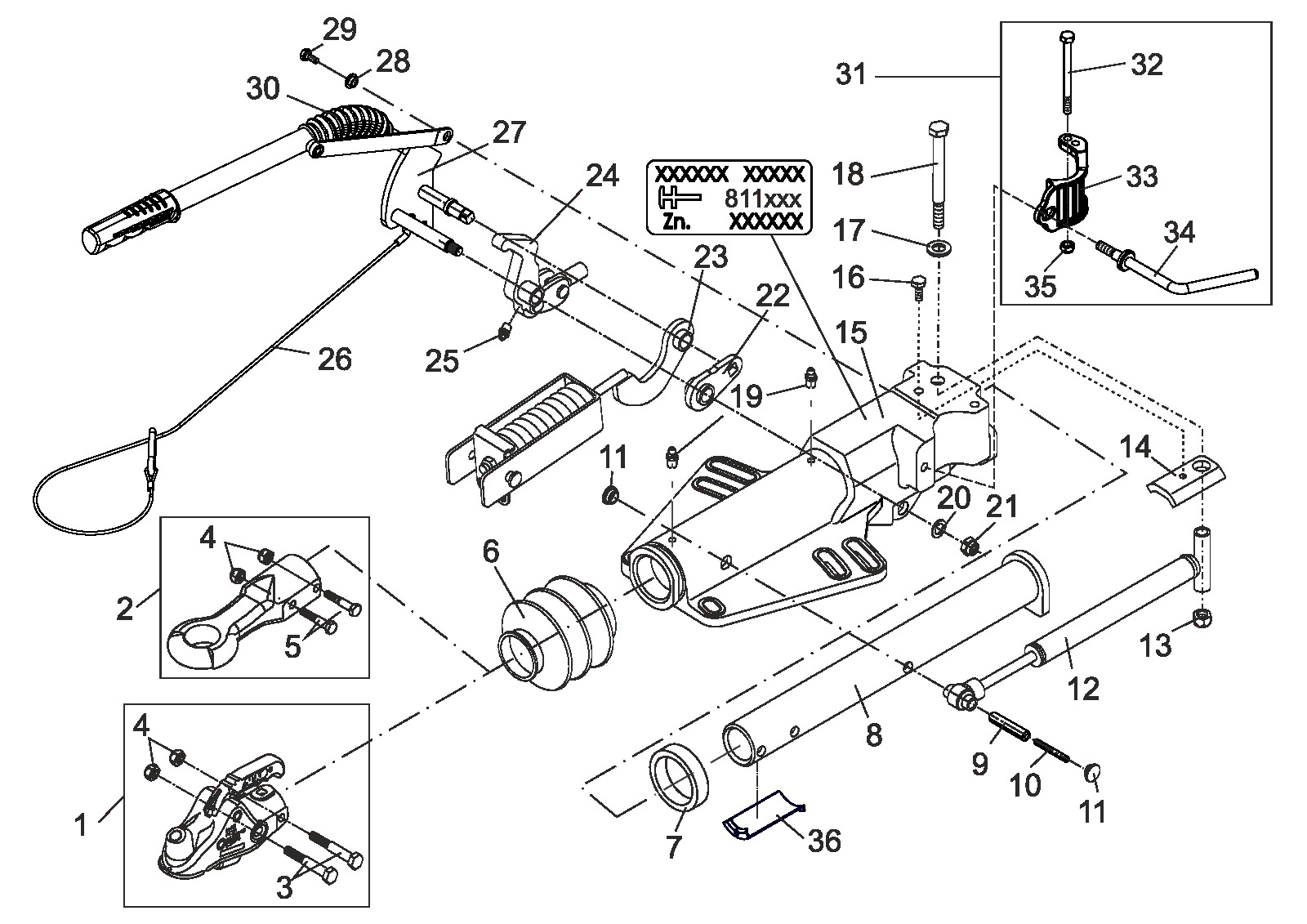

Technical drawing 811916
AL-KO ETI 811916
Technical details
AL-KO | V-design | Profi 3500 | spring load memory | ball coupling and drawbar eye
ETI number
811916
Parts
39
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811916
Use the position number from the exploded drawing to find the correct spare part.
39 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1224391 | Coupling head AK351 with mounting parts | Enquire about this part |
| 2 | 1224114 | Drawbar eye Ø40 with fixing bolts version F | View 1224114 |
| 2 | 1224118 | Drawbar eye NATO Ø76 with fixing bolts version F | Enquire about this part |
| 3 | 706306 | hexnut M16 DIN 985-8 | View 706306 |
| 4 | 706304 | Hexagon screw M16x110 DIN 931 8.8 | Enquire about this part |
| 5 | 706304 | Hexagon screw M16x110 DIN 931 8.8 | Enquire about this part |
| 6 | 21726605 | Bellows | View 21726605 |
| 7 | 2172660003 | Damping rubber | View 2172660003 |
| 8 | 695615 | Draw tube welded | Enquire about this part |
| 9 | 706296 | snap hook 14x55 DIN 1481 | Enquire about this part |
| 10 | 702369 | snap hook 8x55 DIN 1481 | Enquire about this part |
| 11 | 372416 | Seal plug | Enquire about this part |
| 12 | 1207130 | Shock Absorber AE 3500 | View 1207130 |
| 13 | 706354 | Hexagon screw M14x100 DIN 931 10.9 | Enquire about this part |
| 14 | 692278 | Stop plate | Enquire about this part |
| 15 | ETK0005 | Housing | Enquire about this part |
| 16 | 706090 | Hexagon screw M10x20 DIN 933 at drawing | Enquire about this part |
| 17 | 705490 | Washer A 15 DIN 125-ST | Enquire about this part |
| 18 | 706353 | Hexagon screw M14x140 DIN 931 8.8 | Enquire about this part |
| 19 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 20 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 21 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 22 | 692687 | Lever welded | Enquire about this part |
| 23 | 692648 | Spring bow cpl. | Enquire about this part |
| 24 | 692268 | Deflection lever cpl. iH=90:30 incl. grease nipple | Enquire about this part |
| 24 | 692722 | Deflection lever cpl. iH=90:27 incl. grease nipple | Enquire about this part |
| 24 | 692723 | Deflection lever cpl. iH=90:33,5 incl. grease nipple | Enquire about this part |
| 25 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 26 | 209385 | Breakaway cable 980 mm length Sweden | Enquire about this part |
| 27 | 694908 | Hand brake lever cpl. PROFI OD bottom mounting | Enquire about this part |
| 28 | 692645 | Bush | Enquire about this part |
| 29 | 706089 | Hexagon screw M8x16 DIN 933 at drawing | Enquire about this part |
| 30 | 1225358 | Spare parts set bellow hand brake lever PROFI OD | View 1225358 |
| 31 | 1351203 | Assembly group clamp PROFI overrun device | View 1351203 |
| 32 | 706004 | Hexagon screw M10x125 DIN 931 8.8 | Enquire about this part |
| 33 | 692234 | Clamp drilled PROFI overrun device | Enquire about this part |
| 34 | 1351521 | Clamp handle M12 zinc coated | Enquire about this part |
| 35 | 705519 | hexnut M10 DIN 985-10 | View 705519 |
| 36 | 1540505 | Bracket | Enquire about this part |
