AL-KO ETI 811912 – Overrun device V PROFI 3500 pipe 60x8
Looking for spare parts for AL-KO ETI 811912? Below you will find the technical exploded drawing and complete parts list for Overrun device V PROFI 3500 pipe 60x8.
Go to parts listExploded drawing
Technical drawing 811912
AL-KO ETI 811912
Technical details
AL-KO | V-design | Profi 3500 | dead center lever | without ball coupling parts
ETI number
811912
Parts
34

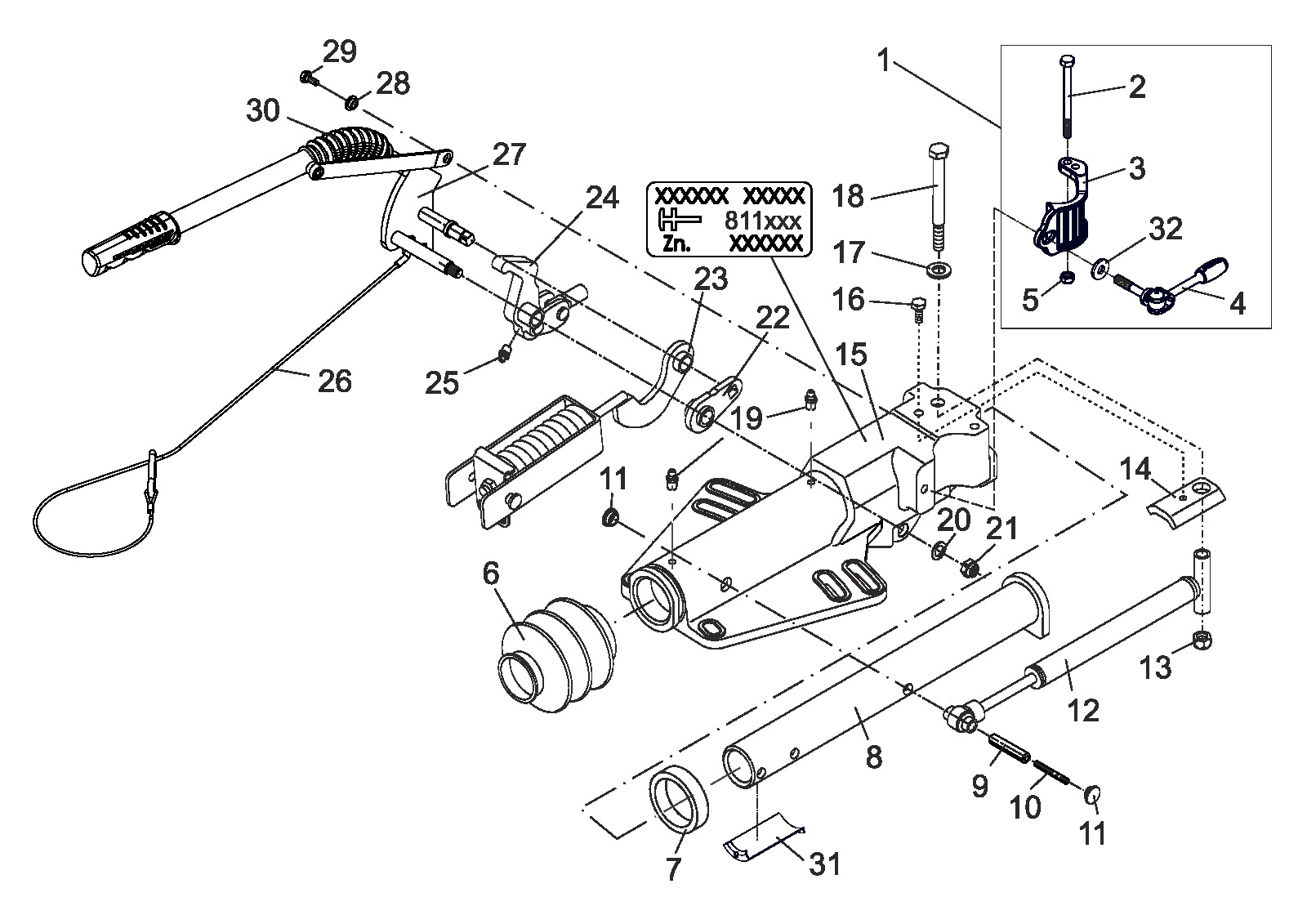

Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811912
Use the position number from the exploded drawing to find the correct spare part.
34 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1351118 | Assembly group clamp (M12) PROFI overrun device | Enquire about this part |
| 2 | 706004 | Hexagon screw M10x125 DIN 931 8.8 | Enquire about this part |
| 3 | 694937 | Clamp (Ø48/Ø60) PROFI overrun device | Enquire about this part |
| 4 | 645708 | Clamp handle with joint M12 (Ø48/Ø60) | Enquire about this part |
| 5 | 705519 | hexnut M10 DIN 985-10 | View 705519 |
| 6 | 21726605 | Bellows | View 21726605 |
| 7 | 2172660003 | Damping rubber | View 2172660003 |
| 8 | 695615 | Draw tube welded | Enquire about this part |
| 9 | 706296 | snap hook 14x55 DIN 1481 | Enquire about this part |
| 10 | 702369 | snap hook 8x55 DIN 1481 | Enquire about this part |
| 11 | 372416 | Seal plug | Enquire about this part |
| 12 | 1207130 | Shock Absorber AE 3500 | View 1207130 |
| 13 | 705693 | hexnut M14 DIN 985-10 | Enquire about this part |
| 14 | 692278 | Stop plate | Enquire about this part |
| 15 | ETK0005 | Housing | Enquire about this part |
| 16 | 706090 | Hexagon screw M10x20 DIN 933 at drawing | Enquire about this part |
| 17 | 705490 | Washer A 15 DIN 125-ST | Enquire about this part |
| 18 | 706353 | Hexagon screw M14x140 DIN 931 8.8 | Enquire about this part |
| 19 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 20 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 21 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 22 | 692687 | Lever welded | Enquire about this part |
| 23 | 692648 | Spring bow cpl. | Enquire about this part |
| 24 | 692268 | Deflection lever cpl. iH=90:30 incl. grease nipple | Enquire about this part |
| 24 | 692722 | Deflection lever cpl. iH=90:27 incl. grease nipple | Enquire about this part |
| 24 | 692723 | Deflection lever cpl. iH=90:33,5 incl. grease nipple | Enquire about this part |
| 25 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 26 | 209385 | Breakaway cable 980 mm length Sweden | Enquire about this part |
| 27 | 692236 | Hand brake lever incl. brake away cable PROFI | Enquire about this part |
| 28 | 692645 | Bush | Enquire about this part |
| 29 | 706089 | Hexagon screw M8x16 DIN 933 at drawing | Enquire about this part |
| 30 | 1225358 | Spare parts set bellow hand brake lever PROFI OD | View 1225358 |
| 31 | 1540505 | Bracket | Enquire about this part |
| 32 | 1565356 | Washer 13x30x4 at drawing | Enquire about this part |
