AL-KO ETI 811835 – Axle rigid braked SA 1800Kg type BS1800
Looking for spare parts for AL-KO ETI 811835? Below you will find the technical exploded drawing and complete parts list for Axle rigid braked SA 1800Kg type BS1800.
Go to parts listExploded drawing

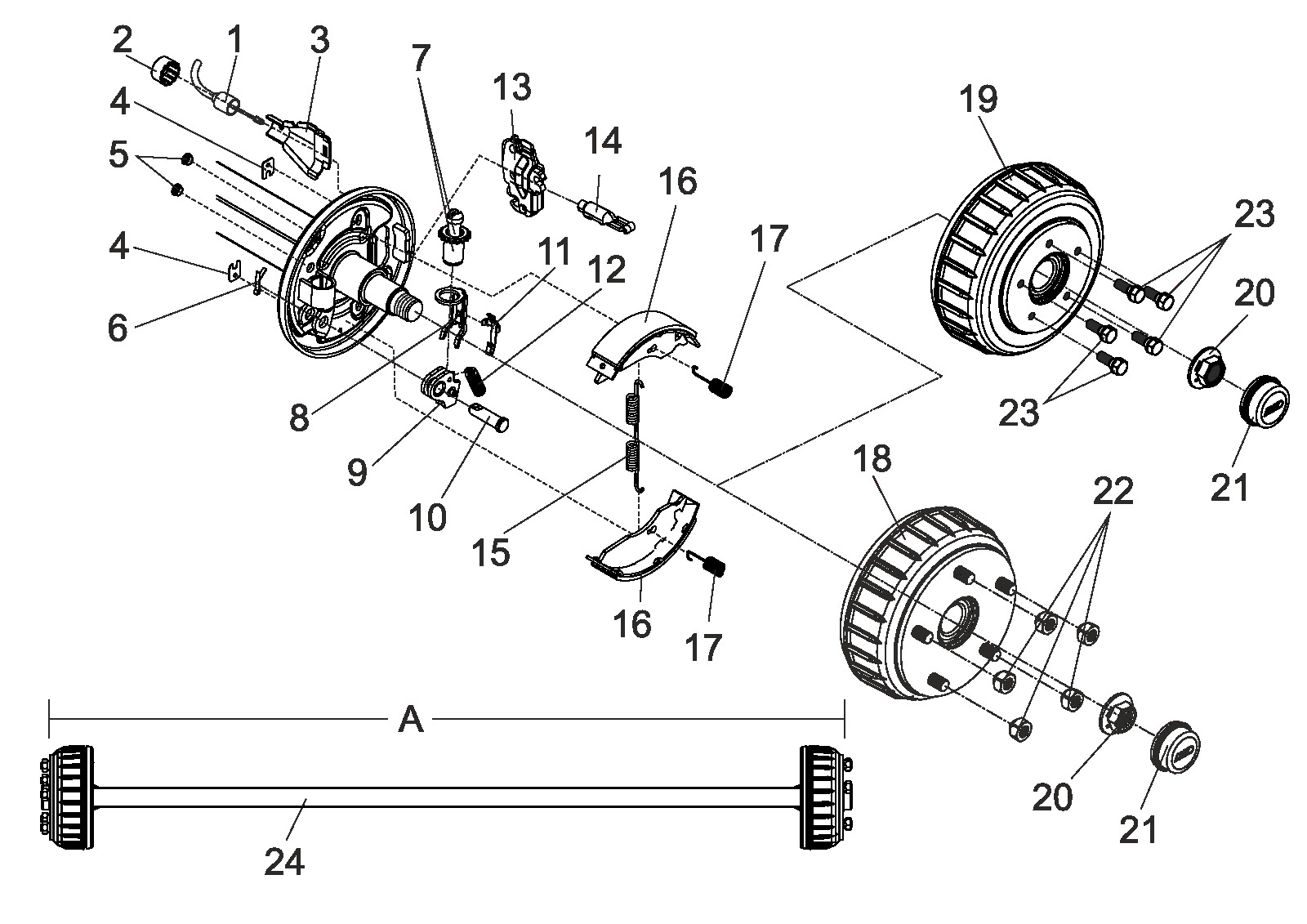

Technical drawing 811835
AL-KO ETI 811835
Technical details
AL-KO | Rigid axle braked | Trailing arm | BS1800
ETI number
811835
Parts
36
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811835
Use the position number from the exploded drawing to find the correct spare part.
36 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable PROFI LONG LIFE 350/546 | Enquire about this part |
| 1 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 1 | 247283 | Bowden cable PROFI LONG LIFE 770/966 | View 247283 |
| 1 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 1 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 1 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 1 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 1 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 1 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 1 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 2 | 371389 | Protective cap | Enquire about this part |
| 3 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 4 | 2382610002 | Cover plate | Enquire about this part |
| 5 | 373245 | Plug RAL6002 | View 373245 |
| 6 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 7 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 8 | 368361 | Bow pressure | View 368361 |
| 9 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 9 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 10 | 368651 | Bearing bolt | Enquire about this part |
| 11 | 368405 | Compound spring | View 368405 |
| 12 | 2187370003 | Tension spring | View 2187370003 |
| 13 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 14 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 15 | 2082000007 | Tension spring | View 2082000007 |
| 16 | 1213890 | Set brake shoe 2360/2361 | View 1213890 |
| 17 | 2088800003 | Compression spring | Enquire about this part |
| 18 | 695390 | Brake drum cpl. 165,1x5-M16x1,5 | Enquire about this part |
| 18 | 1224805 | Spare parts set bearing (Ø80/Ø42/42) wheel brake 2361 | View 1224805 |
| 19 | 1224805 | Spare parts set bearing (Ø80/Ø42/42) wheel brake 2361 | View 1224805 |
| 19 | 1932109 | Spare parts set brake drum 2361 cpl. with bearing; 112x5 - M12x1,5 | View 1932109 |
| 20 | 582506 | Flange nut M27x2 | View 582506 |
| 21 | 582505 | Sealing cap Ø65 | View 582505 |
| 22 | 1557235 | Wheel nutM16x1,5 cone 80° | Enquire about this part |
| 23 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 24 | ETK0007 | Axle profile square | Enquire about this part |
