AL-KO ETI 811832 – Axle rigid braked SA 1000Kg type BS1000
Looking for spare parts for AL-KO ETI 811832? Below you will find the technical exploded drawing and complete parts list for Axle rigid braked SA 1000Kg type BS1000.
Go to parts listExploded drawing

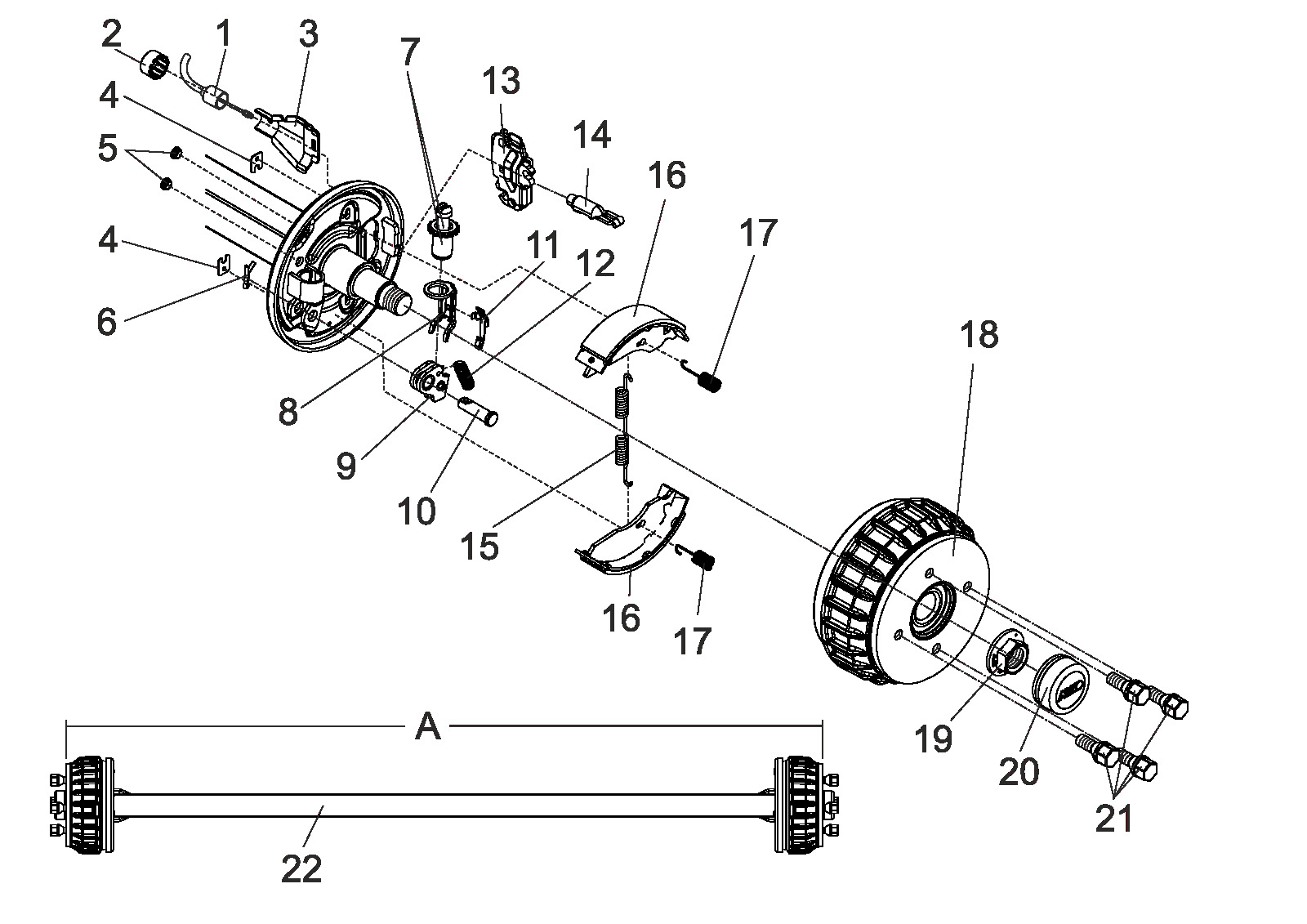

Technical drawing 811832
AL-KO ETI 811832
Technical details
AL-KO | Rigid axle braked | Trailing arm | BS1000
ETI number
811832
Parts
34
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811832
Use the position number from the exploded drawing to find the correct spare part.
34 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable PROFI LONG LIFE 350/546 | Enquire about this part |
| 1 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 1 | 247283 | Bowden cable PROFI LONG LIFE 770/966 | View 247283 |
| 1 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 1 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 1 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 1 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 1 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 1 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 1 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 2 | 371389 | Protective cap | Enquire about this part |
| 3 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 4 | 2382610002 | Cover plate | Enquire about this part |
| 5 | 373245 | Plug RAL6002 | View 373245 |
| 6 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 7 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 8 | 581878 | Bow pressure | Enquire about this part |
| 9 | 384308 | Auto reserve lever cpl. left | Enquire about this part |
| 9 | 384309 | Auto reserve lever cpl. right | Enquire about this part |
| 10 | 368651 | Bearing bolt | Enquire about this part |
| 11 | 581879 | Compound spring | Enquire about this part |
| 12 | 2188870001 | Tension spring left | View 2188870001 |
| 13 | 570666 | Expanding joint lock compl. | Enquire about this part |
| 14 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 15 | 2182150003 | Tension spring | View 2182150003 |
| 16 | 1213888 | Set brake shoe for one axle 1635/1636/1637 | Enquire about this part |
| 17 | 2088800003 | Compression spring | Enquire about this part |
| 18 | 1224800 | Spare parts set bearing (Ø60/Ø30/37) wheel brake 1637 | View 1224800 |
| 18 | 1932114 | Spare parts set brake drum 1637 cpl. with bearing; 98x4 - M12x1,5 | View 1932114 |
| 18 | 1932115 | Spare parts set brake drum 1637 cpl. with bearing; 100x4 - M12x1,5 | View 1932115 |
| 19 | 581200 | Flange nut M24x1.5 | View 581200 |
| 20 | 581197 | Sealing cap Ø57 | View 581197 |
| 21 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 22 | ETK0007 | Axle profile square | Enquire about this part |
