AL-KO technical drawing · ETI 811810
AL-KO ETI 811810 – Axle ASB1800 2361 AAA with hydraulic redirection 90°
Looking for spare parts for AL-KO ETI 811810? Below you will find the technical exploded drawing and complete parts list for Axle ASB1800 2361 AAA with hydraulic redirection 90°.
Go to parts listExploded drawing

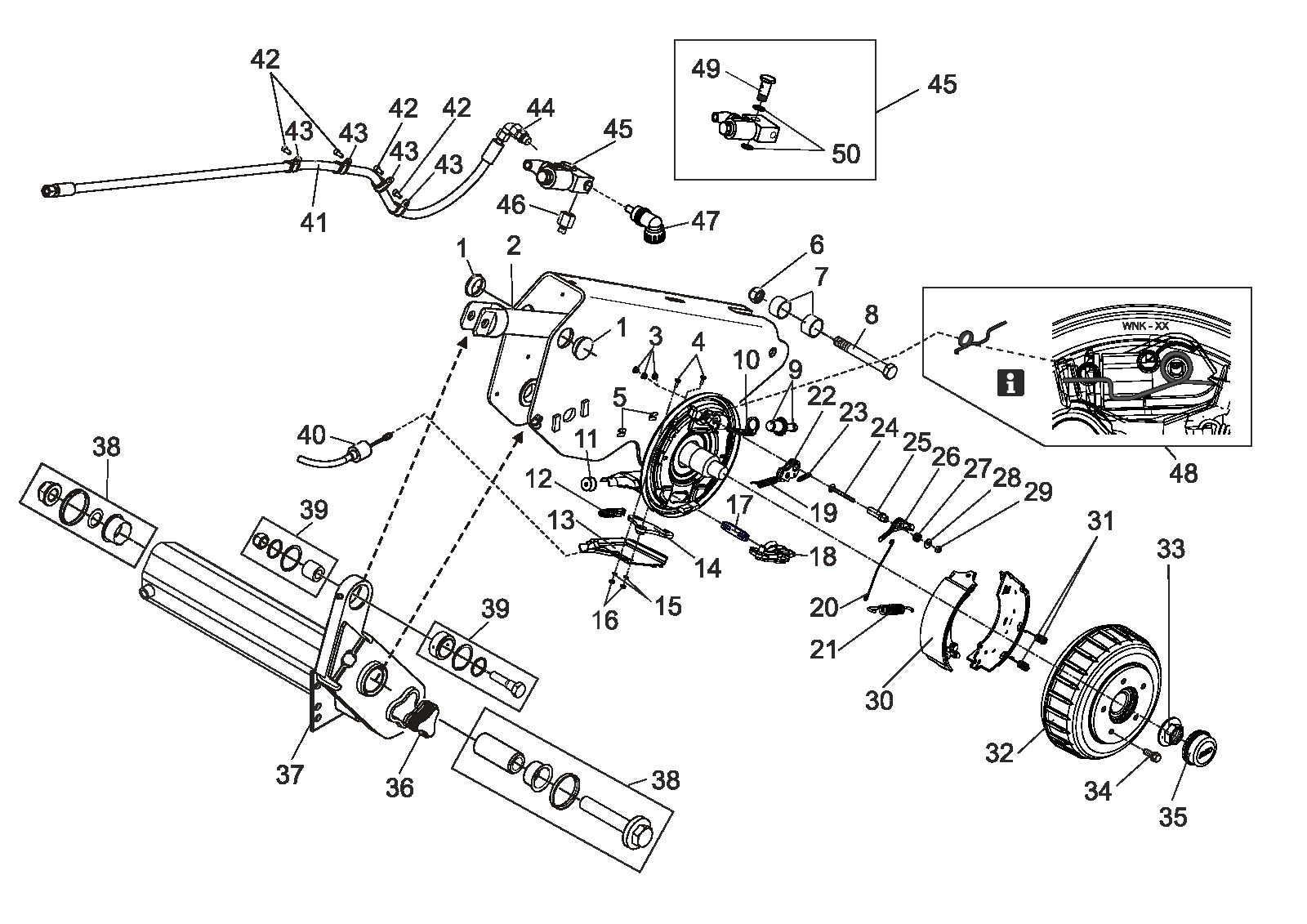

Technical drawing 811810
AL-KO ETI 811810
Technical details
AL-KO | Torsion bar suspension | Lowerable | Axle tube rotatably mounted | ASB1800
ETI number
811810
Parts
65
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811810
Use the position number from the exploded drawing to find the correct spare part.
65 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 583615 | Seal plug | Enquire about this part |
| 2 | 645541 | Hydraulic cylinder cpl. | Enquire about this part |
| 3 | 694430 | Plug RAL3000 | Enquire about this part |
| 4 | 706240 | Hexagon screw M5x12 DIN 933 8.8 | Enquire about this part |
| 5 | 2382610002 | Cover plate | Enquire about this part |
| 6 | 706013 | hexnut M16 DIN 985-10 | Enquire about this part |
| 7 | 583599 | Distance bush | Enquire about this part |
| 8 | 706341 | Hexagon screw M16x130 DIN 931 10.9 | Enquire about this part |
| 9 | 1650416 | Regulation unit left wheel brake 2051/2361 AAA | Enquire about this part |
| 10 | 368361 | Bow pressure | View 368361 |
| 11 | 371389 | Protective cap | Enquire about this part |
| 12 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 13 | 692367 | Shell welded left cpl. 2361 | Enquire about this part |
| 13 | 692368 | Shell welded right cpl. 2361 | Enquire about this part |
| 14 | 692415 | Deflection lever | Enquire about this part |
| 15 | 706443 | Spring lock washer B 5 DIN 127 | Enquire about this part |
| 16 | 705482 | Hexnut M5 DIN 934-8 | Enquire about this part |
| 17 | 1935303 | Connecting eye special | Enquire about this part |
| 18 | 1650407 | Spread hinge lock cpl. 2051/2361 left AAA | Enquire about this part |
| 18 | 1650408 | Spread hinge lock cpl. 2051/2361 right AAA | Enquire about this part |
| 19 | 2187370003 | Tension spring | View 2187370003 |
| 20 | 1651293 | Connecting wire2261 AAA | Enquire about this part |
| 21 | 1652174 | Tension spring AAA | Enquire about this part |
| 22 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 22 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 23 | 1651237 | Tension spring 2051/2361 AAA | View 1651237 |
| 24 | 706316 | Round-head screw M6x60 DIN 603 8.8 | Enquire about this part |
| 25 | 1650429 | Bearing bolt 2051/2361 AAA | Enquire about this part |
| 26 | 1651290 | Adjusting lever left2361 AAA | Enquire about this part |
| 26 | 1651291 | Adjusting lever right2361 AAA | Enquire about this part |
| 27 | 694449 | Compression spring 2051/2361 AAA | View 694449 |
| 28 | 705405 | washer 6,4 DIN 9021-ST | Enquire about this part |
| 29 | 706012 | hexnut M6 DIN 980-V-8 | Enquire about this part |
| 30 | 1733046 | Spare parts set brake jaw 2361 AAA lowerable axle | Enquire about this part |
| 31 | 2088800003 | Compression spring | Enquire about this part |
| 32 | 1224805 | Spare parts set bearing (Ø80/Ø42/42) wheel brake 2361 | View 1224805 |
| 32 | 1932109 | Spare parts set brake drum 2361 cpl. with bearing; 112x5 - M12x1,5 | View 1932109 |
| 33 | 582506 | Flange nut M27x2 | View 582506 |
| 34 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 35 | 1653033 | Sealing cap Ø65 AAA | Enquire about this part |
| 36 | 375901 | End cap | Enquire about this part |
| 37 | 1310074 | Schwinghb left assembly | Enquire about this part |
| 37 | 1310075 | Swing arm right assembly | Enquire about this part |
| 38 | 245096 | Spare part kit lowerable axle | Enquire about this part |
| 39 | 245097 | Spare part kit lowerable axle | Enquire about this part |
| 40 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 40 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 40 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 40 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 40 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 40 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 40 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 40 | 1231584 | Bowden cable PROFI LONG LIFE 2700/2896 | Enquire about this part |
| 40 | 1231585 | Bowden cable PROFI LONG LIFE 2800/2996 | Enquire about this part |
| 41 | 623704 | Hose hydraulic | Enquire about this part |
| 42 | 510433 | Screw SFS-TAPTITE M6x12 | Enquire about this part |
| 43 | 583597 | Exhaust clamp RSGU 1.15/15-W1 | Enquire about this part |
| 44 | 606395 | Elbow fitting with sealing cone | Enquire about this part |
| 45 | 606442 | Non return valve | Enquire about this part |
| 46 | 606177 | Reducer fitting R1/4"-R3/8" | Enquire about this part |
| 47 | 1651262 | COSTAL-plug for valve 606442 | Enquire about this part |
| 48 | 1806463 | Centering bracket left 2051/2361AAA | Enquire about this part |
| 48 | 1807220 | Centering bracket right 2051/2361AAA | Enquire about this part |
| 49 | 1362528 | Hollow bolt for check valve | Enquire about this part |
| 50 | 707197 | O-ring NBR 90 18x2 | Enquire about this part |
