AL-KO ETI 811784 – Adjusting drawbar 162VB type M with parking brake
Looking for spare parts for AL-KO ETI 811784? Below you will find the technical exploded drawing and complete parts list for Adjusting drawbar 162VB type M with parking brake.
Go to parts listExploded drawing

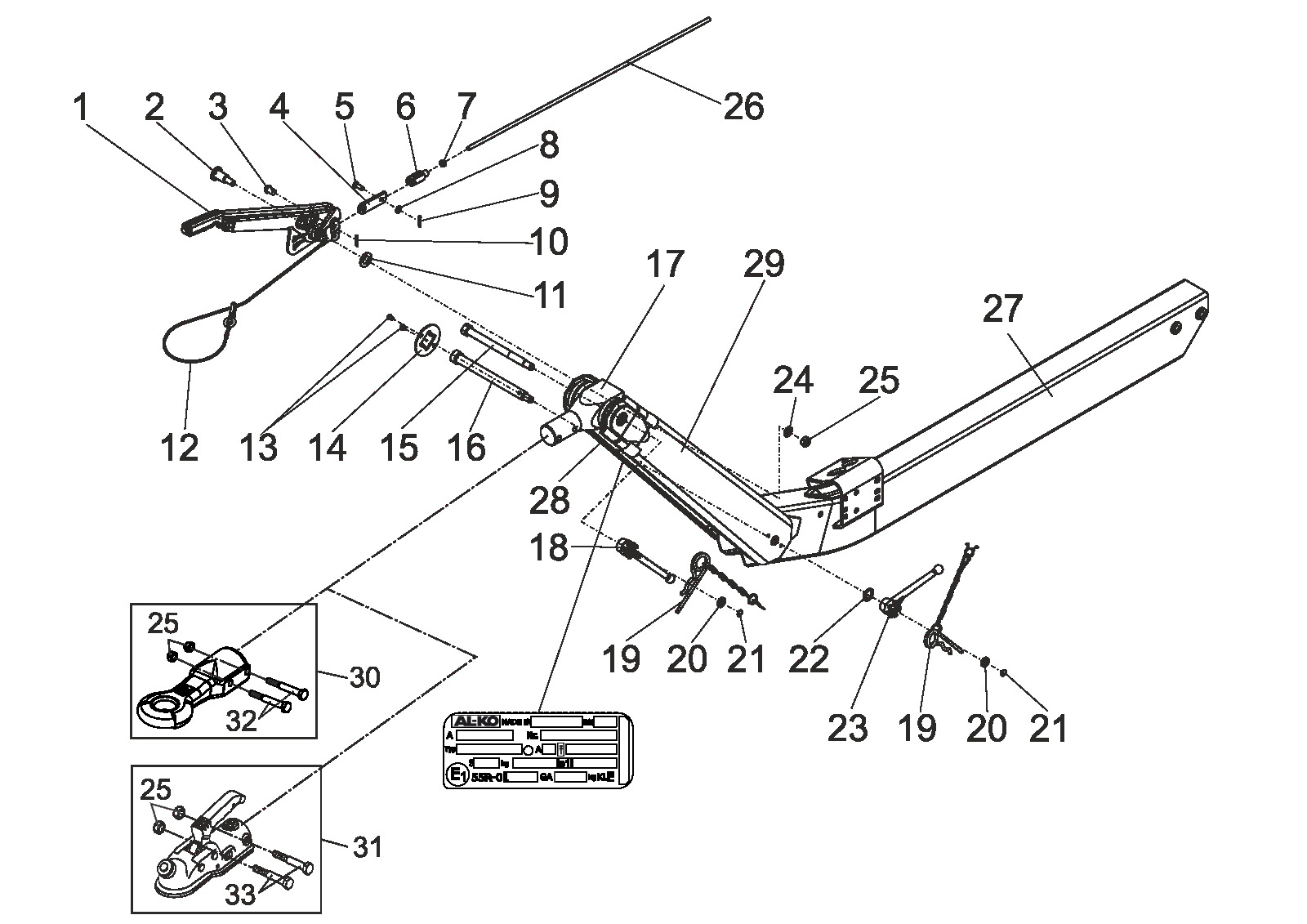

Technical drawing 811784
AL-KO ETI 811784
Technical details
AL-KO | height adjustable | mechanical brake | 162VB
ETI number
811784
Parts
40
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811784
Use the position number from the exploded drawing to find the correct spare part.
40 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1251883 | Hand brake lever incl. brake away cable | Enquire about this part |
| 2 | 1653724 | Bearing screw M12x54 | Enquire about this part |
| 3 | 2076810609 | Bolt half-round | Enquire about this part |
| 4 | 583071 | Plate | Enquire about this part |
| 5 | 706297 | Bolt B 8 H11x22X19 DIN 1434 | Enquire about this part |
| 6 | 706285 | Fork head 8X32 DIN 71752 | Enquire about this part |
| 7 | 705377 | Hexnut M8 DIN 934-8 | View 705377 |
| 8 | 705395 | Washer A8,4 DIN 125-ST | Enquire about this part |
| 9 | 700554 | Split pin 2x25 DIN 94 | Enquire about this part |
| 10 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 11 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 12 | 209534 | Breakaway cable 1600 mm length | View 209534 |
| 13 | 702704 | Blind rivet A6,4x12,0 ST/ST DIN 7337 | Enquire about this part |
| 14 | 375102 | Lock washer wrench size 27 | Enquire about this part |
| 15 | 372774 | Bearing screw M16x1,5x216 | Enquire about this part |
| 16 | 373167 | Bearing screw M20x1,5x246 | Enquire about this part |
| 17 | 1650750 | Gear head adapter 162 VB | Enquire about this part |
| 18 | 365416 | Clamp handle M16x1,5 | Enquire about this part |
| 19 | 604103 | Spring cotter pin with chain | Enquire about this part |
| 20 | 372770 | Bush | Enquire about this part |
| 21 | 702300 | Snap ring A14 DIN 7993-1.4310 | Enquire about this part |
| 22 | 706291 | Washer S 22x30x2,0 DIN 988 | Enquire about this part |
| 23 | 2024040002 | Clamp handle M20x1,5 | Enquire about this part |
| 24 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 25 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 26 | ETK0006 | Linkage: Please specify the length and diameter | Enquire about this part |
| 27 | ETK0022 | Drawbar | Enquire about this part |
| 28 | 1650509 | Spacer side arm right 162VB hot dipped | Enquire about this part |
| 29 | 1650508 | Spacer side arm left162VB hot dipped 750 mm long | Enquire about this part |
| 30 | 1213350 | Drawbar eye Ø40 with fixing material | Enquire about this part |
| 30 | 1224106 | Drawbar eye England Ø30 with fixing material | Enquire about this part |
| 30 | 1224107 | Drawbar eye England Ø40 with fixing material | Enquire about this part |
| 30 | 1224108 | Drawbar eye Italien Ø45 with fixing material | Enquire about this part |
| 30 | 1224109 | Drawbar eye England Ø50 with fixing material | Enquire about this part |
| 30 | 1224110 | Drawbar eye Frankreich Ø68 with fixing material | Enquire about this part |
| 30 | 1224111 | Drawbar eye NATO Ø76 with fixing material | View 1224111 |
| 30 | 1225076 | Drawbar eye Sweden with fixing material design A | Enquire about this part |
| 31 | 249277 | Coupling AK160 with mounting parts | Enquire about this part |
| 32 | 706080 | Hexagon screw M12x90 DIN 931 10.9 | Enquire about this part |
| 33 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | Enquire about this part |
