AL-KO ETI 811743 – Cross brace MAMMUT bottom middle
Looking for spare parts for AL-KO ETI 811743? Below you will find the technical exploded drawing and complete parts list for Cross brace MAMMUT bottom middle.
Go to parts listExploded drawing

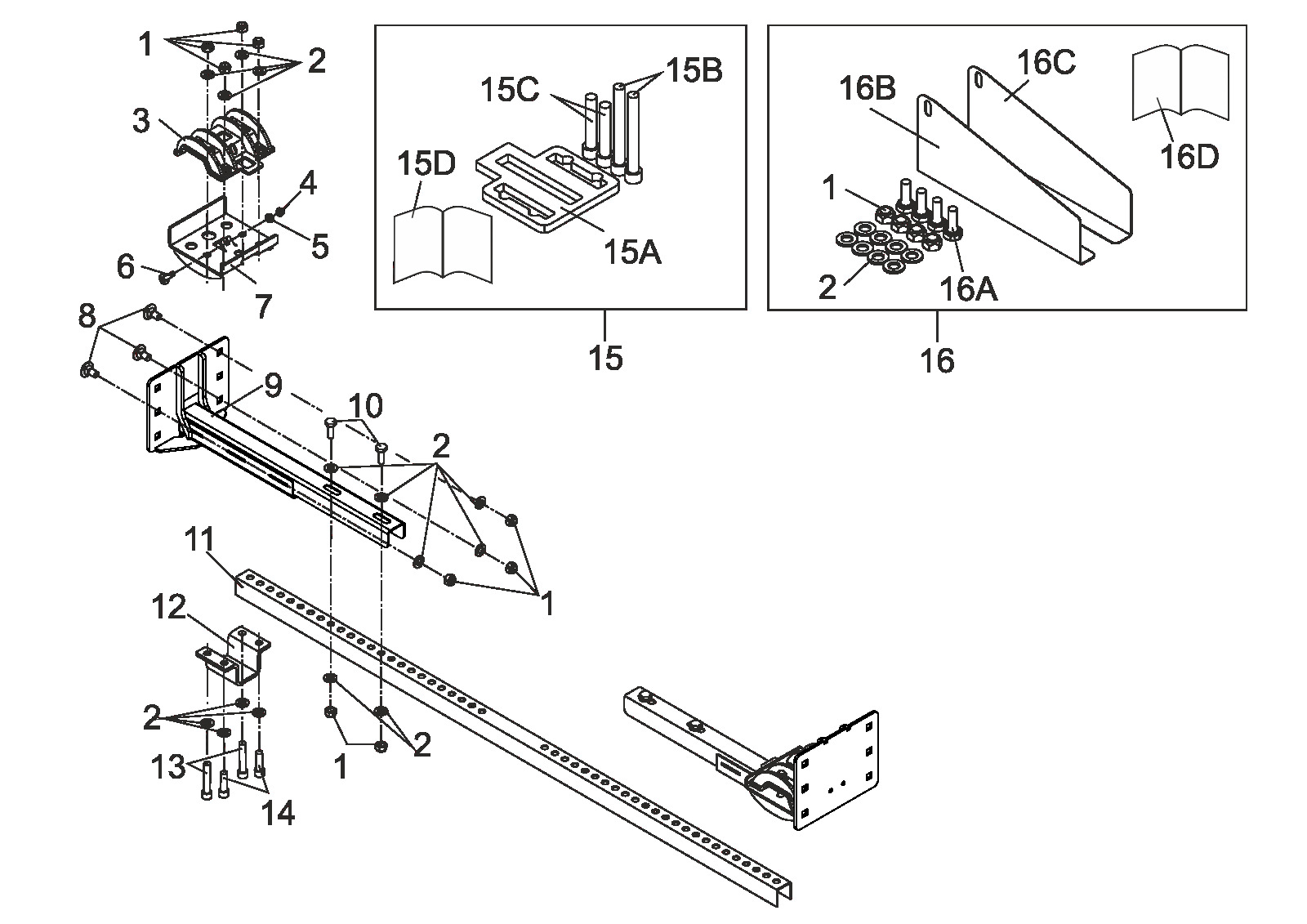

Technical drawing 811743
AL-KO ETI 811743
Technical details
AL-KO | MAMMUT
ETI number
811743
Parts
24
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811743
Use the position number from the exploded drawing to find the correct spare part.
24 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 2 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 3 | 1366268 | Clamp profile up welded | Enquire about this part |
| 4 | 705383 | hexnut M8 DIN 985-8 | Enquire about this part |
| 5 | 705395 | Washer A8,4 DIN 125-ST | Enquire about this part |
| 6 | 706414 | Round-head screw M8x35 DIN 603 8.8 | Enquire about this part |
| 7 | 1366269 | Clamp profile down welded | Enquire about this part |
| 8 | 706411 | Round head screw M12x25 DIN 603 8.8 | Enquire about this part |
| 9 | 1366390 | Adjustment rail welded | Enquire about this part |
| 10 | 705457 | Hexagon screw M12x30 DIN 933 8.8 | View 705457 |
| 11 | 1366375 | Connecting brace | Enquire about this part |
| 12 | 1365527 | Pipe clamp | Enquire about this part |
| 13 | 706390 | Cylinder screw M12x65 DIN 912 8.8 | Enquire about this part |
| 14 | 706392 | Cylinder screw M12x40 DIN 912 8.8 | Enquire about this part |
| 15 | 1224883 | Distance kit MAMMUT | Enquire about this part |
| 15A | 1366380 | Spacer plate | Enquire about this part |
| 15B | 706390 | Cylinder screw M12x65 DIN 912 8.8 | Enquire about this part |
| 15C | 705843 | Cylinder screw M12X100 DIN 912 8.8 A3C | Enquire about this part |
| 15D | 693304 | Dupplement user manual | Enquire about this part |
| 16 | 1224882 | Mounting kit VARIO III AV MAMMUT | Enquire about this part |
| 16A | 705457 | Hexagon screw M12x30 DIN 933 8.8 | View 705457 |
| 16B | 1366378 | Enclose plate left | Enquire about this part |
| 16C | 1366379 | Enclose plate right | Enquire about this part |
| 16D | 693305 | Dupplement user manual VARIO III AV | Enquire about this part |
