AL-KO ETI 811739 – Overrun device V type 161S top assembly
Looking for spare parts for AL-KO ETI 811739? Below you will find the technical exploded drawing and complete parts list for Overrun device V type 161S top assembly.
Go to parts listExploded drawing

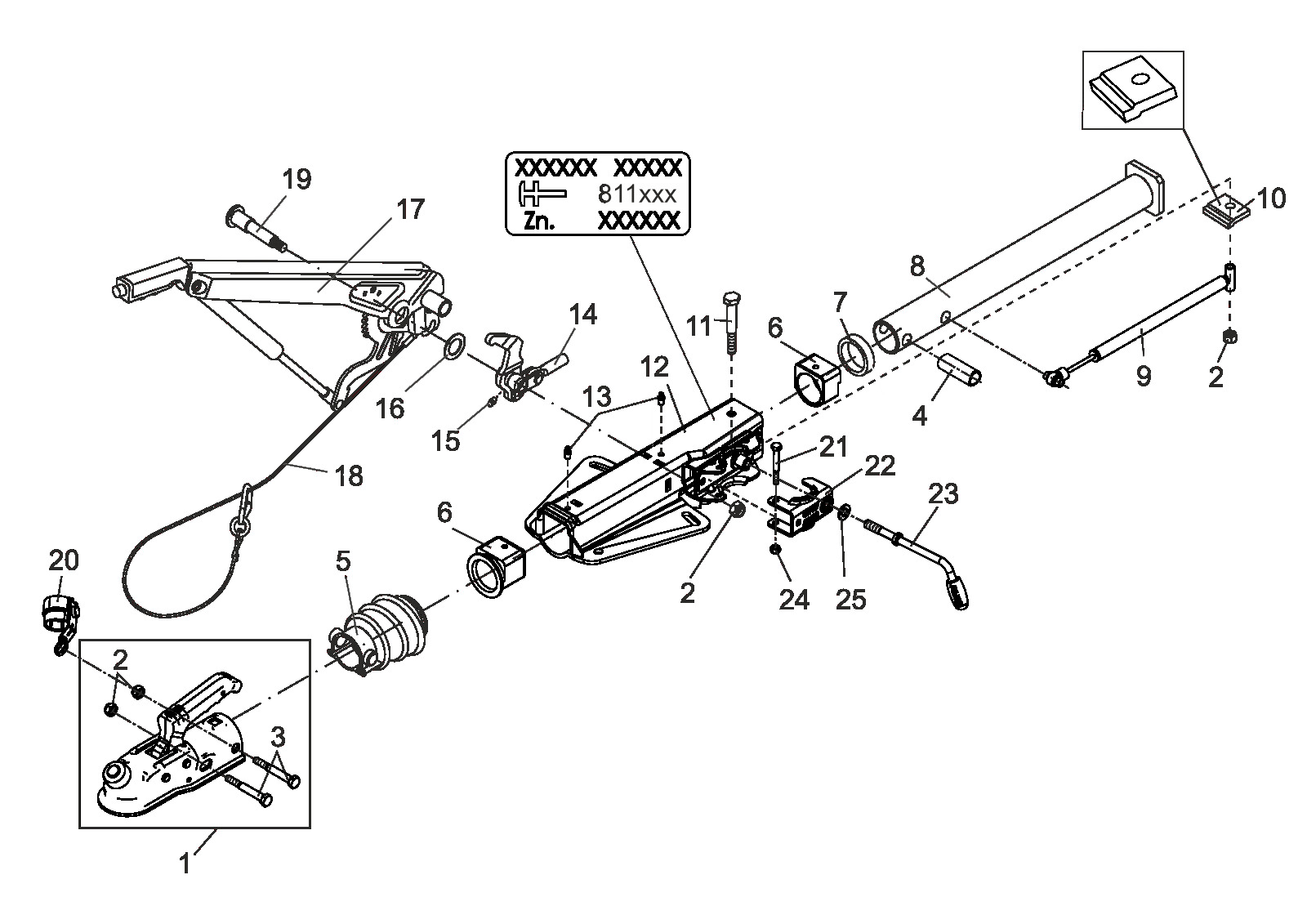

Technical drawing 811739
AL-KO ETI 811739
Technical details
AL-KO | V-design | 161S | with gas spring lever | ball coupling
ETI number
811739
Parts
25
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811739
Use the position number from the exploded drawing to find the correct spare part.
25 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1222737 | Coupling AK160/B D50/45 with mounting parts | Enquire about this part |
| 2 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 3 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | Enquire about this part |
| 4 | 647925 | Distance bush | Enquire about this part |
| 5 | 366356 | Bellows | View 366356 |
| 6 | 1210131 | Spare part kit bushing overrun | View 1210131 |
| 7 | 371372 | Damping rubber | View 371372 |
| 8 | 571873 | Draw tube welded 161S | View 571873 |
| 9 | 1206263 | Shock absorber 161S design E bush Ø41,7 | Enquire about this part |
| 10 | 581699 | Stop plate | View 581699 |
| 11 | 705434 | Hexagon screw M12x90 DIN 931 8.8 | View 705434 |
| 12 | ETK0005 | Housing | Enquire about this part |
| 13 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 14 | 380265 | Deflection lever cpl. iH=90:27 | View 380265 |
| 15 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 16 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 17 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 18 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 19 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 20 | 2182600004 | Plug holder complete 7&13 pin RAL9017 | View 2182600004 |
| 21 | 705498 | Hexagon screw M8x65 DIN 931 8.8 | Enquire about this part |
| 22 | 20531802 | Jockey wheel outer clamp | Enquire about this part |
| 23 | 610561 | Clamp handle complete | View 610561 |
| 24 | 705388 | hexnut M8 DIN 980-V-8 | Enquire about this part |
| 25 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
