AL-KO ETI 811724 – Overrun device square 70 161S draw tube rigid
Looking for spare parts for AL-KO ETI 811724? Below you will find the technical exploded drawing and complete parts list for Overrun device square 70 161S draw tube rigid.
Go to parts listExploded drawing

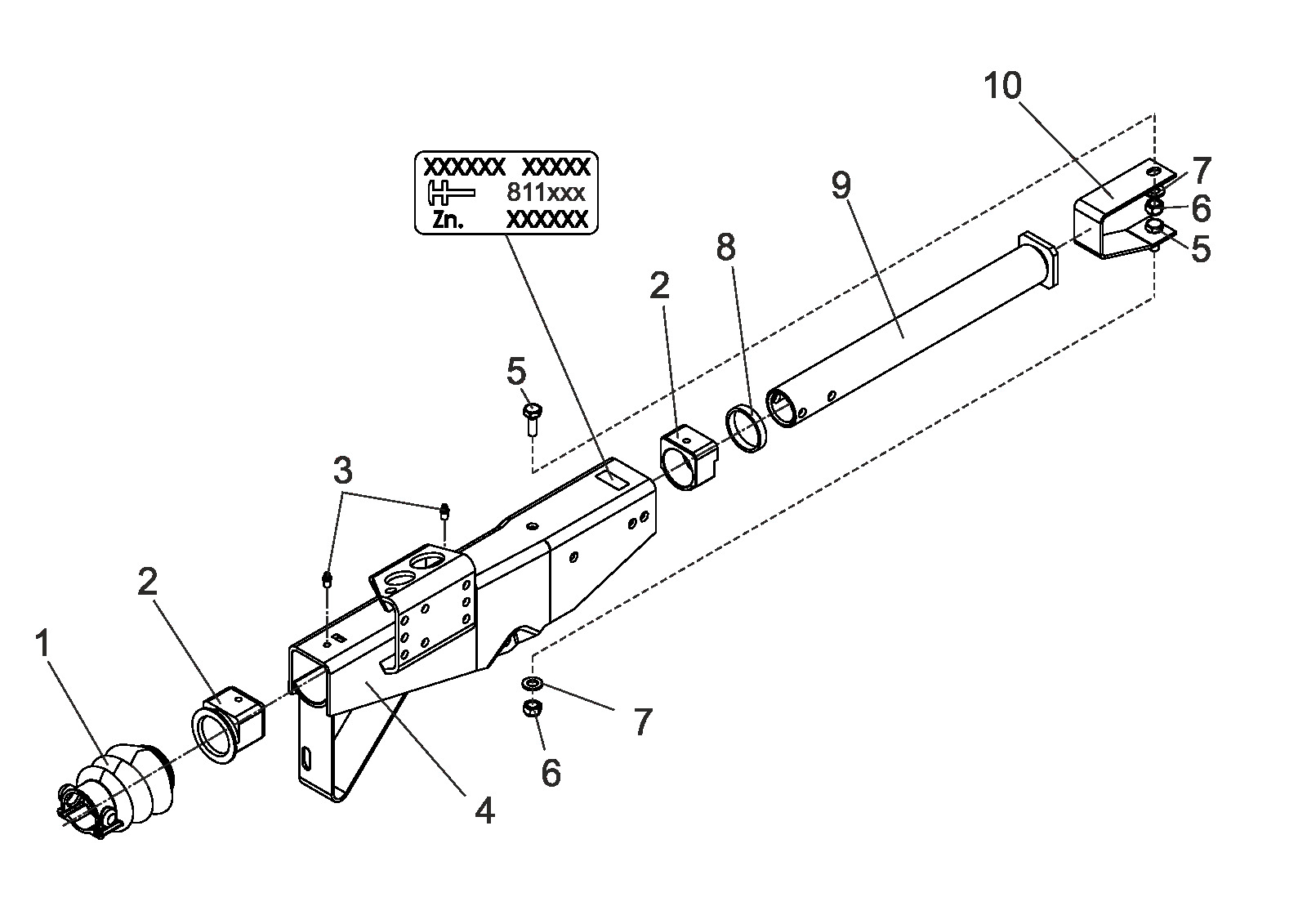

Technical drawing 811724
AL-KO ETI 811724
Technical details
AL-KO | square design | 161S | without handbrake lever | without ball coupling parts
ETI number
811724
Parts
10
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811724
Use the position number from the exploded drawing to find the correct spare part.
10 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 366356 | Bellows | View 366356 |
| 2 | 1210131 | Spare part kit bushing overrun | View 1210131 |
| 3 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 4 | ETK0005 | Housing | Enquire about this part |
| 5 | 705457 | Hexagon screw M12x30 DIN 933 8.8 | View 705457 |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 8 | 1652856 | Distance ring | Enquire about this part |
| 9 | 571874 | Draw tube welded 251S | View 571874 |
| 10 | 1652855 | U-profile | Enquire about this part |
