AL-KO ETI 811660 – Axle rigid unbraked 1500kg SA
Looking for spare parts for AL-KO ETI 811660? Below you will find the technical exploded drawing and complete parts list for Axle rigid unbraked 1500kg SA.

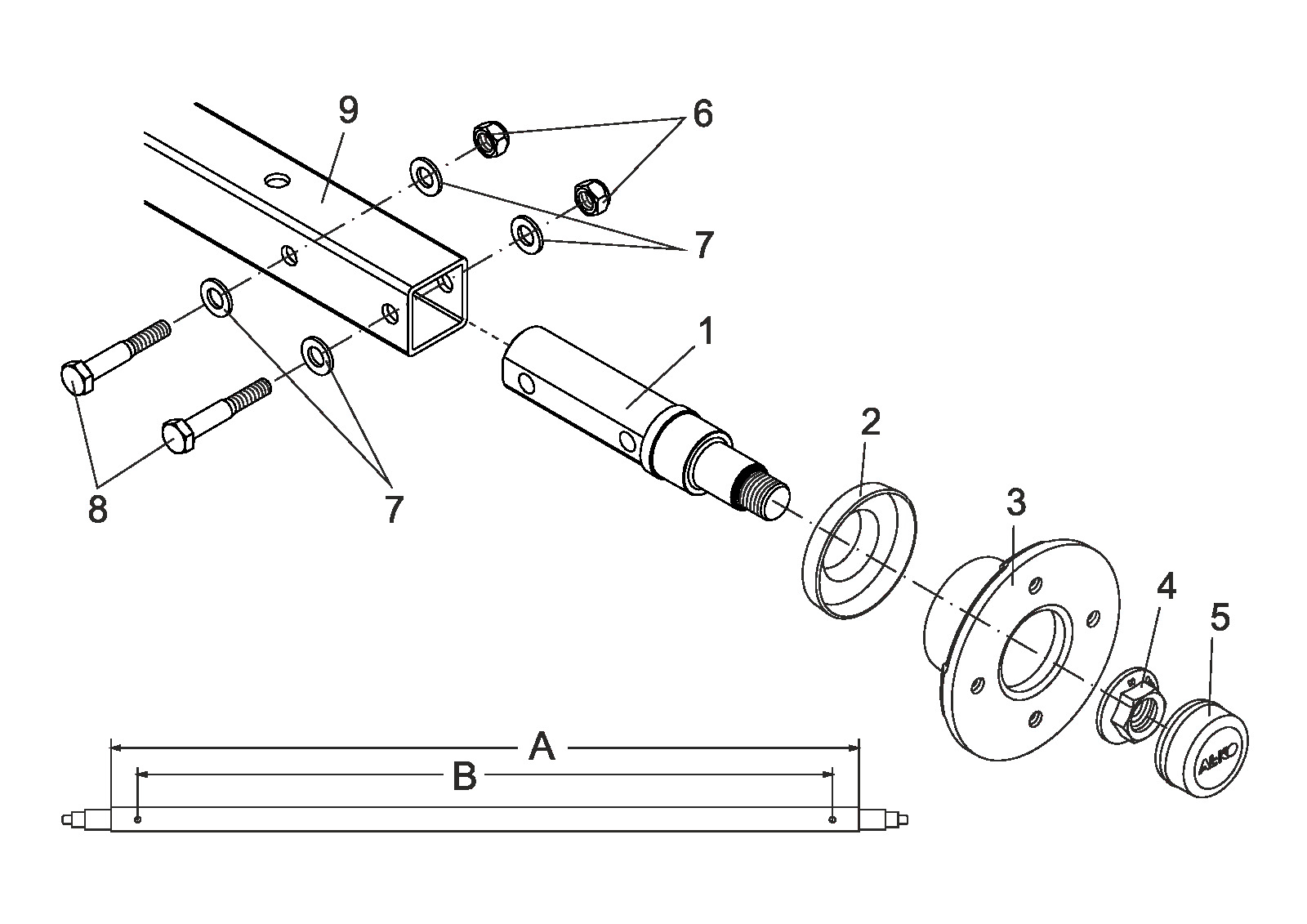

Go to parts listExploded drawing
Technical drawing 811660
AL-KO ETI 811660
Technical details
AL-KO | unit-bearing | 750 kg
ETI number
811660
Parts
10
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811660
Use the position number from the exploded drawing to find the correct spare part.
10 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1650197 | Stub axle Ø39 bend 0° | Enquire about this part |
| 2 | 1367102 | Impact protection Ø50/102 | Enquire about this part |
| 3 | 1224803 | Spare parts set bearing wheel brake 2051 1500kg | View 1224803 |
| 3 | 1368764 | Hub cpl. 750 kg 112x5 | Enquire about this part |
| 4 | 581200 | Flange nut M24x1,5 | View 581200 |
| 5 | 581197 | End cap Ø57 | View 581197 |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 8 | 706358 | Hexagon screw M12x80 DIN 931 10.9 | Enquire about this part |
| 9 | ETK0007 | Axle profile square | Enquire about this part |
