AL-KO ETI 811659 – Axle rigid unbraked 1800kg SA
Looking for spare parts for AL-KO ETI 811659? Below you will find the technical exploded drawing and complete parts list for Axle rigid unbraked 1800kg SA.

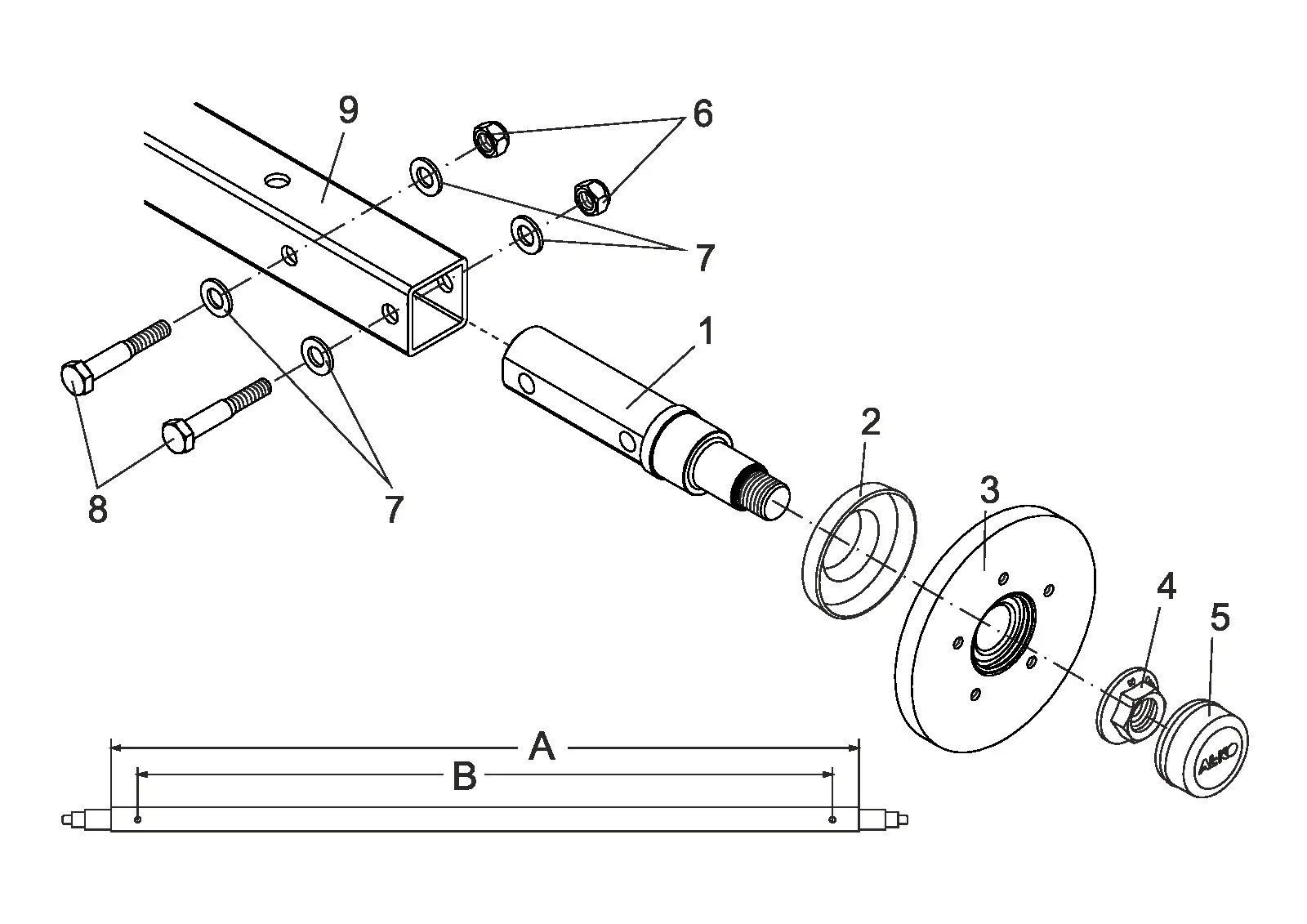

Go to parts listExploded drawing
Technical drawing 811659
AL-KO ETI 811659
Technical details
AL-KO | unit-bearing | 900 kg
ETI number
811659
Parts
10
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811659
Use the position number from the exploded drawing to find the correct spare part.
10 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1650196 | Stub axle RB2361 | Enquire about this part |
| 2 | 1367161 | Impact protection Ø56/108 | Enquire about this part |
| 3 | 1224805 | Spare parts set bearing wheel brake 2361 | View 1224805 |
| 3 | 1368765 | Hub cpl. 900 kg 112x5 | Enquire about this part |
| 4 | 582506 | Flange nut M27x2 | View 582506 |
| 5 | 582505 | End cap Ø65 | View 582505 |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 8 | 706080 | Hexagon screw M12x90 DIN 931 10.9 | Enquire about this part |
| 9 | ETK0007 | Axle profile square | Enquire about this part |
