AL-KO ETI 811612 – Overrun device V 2,8VB/1-C 3500kg, hand brake lever straight

Looking for spare parts for AL-KO ETI 811612? Below you will find the technical exploded drawing and complete parts list for Overrun device V 2,8VB/1-C 3500kg, hand brake lever straight.

ETI number: 811612 50 parts

Go to parts list

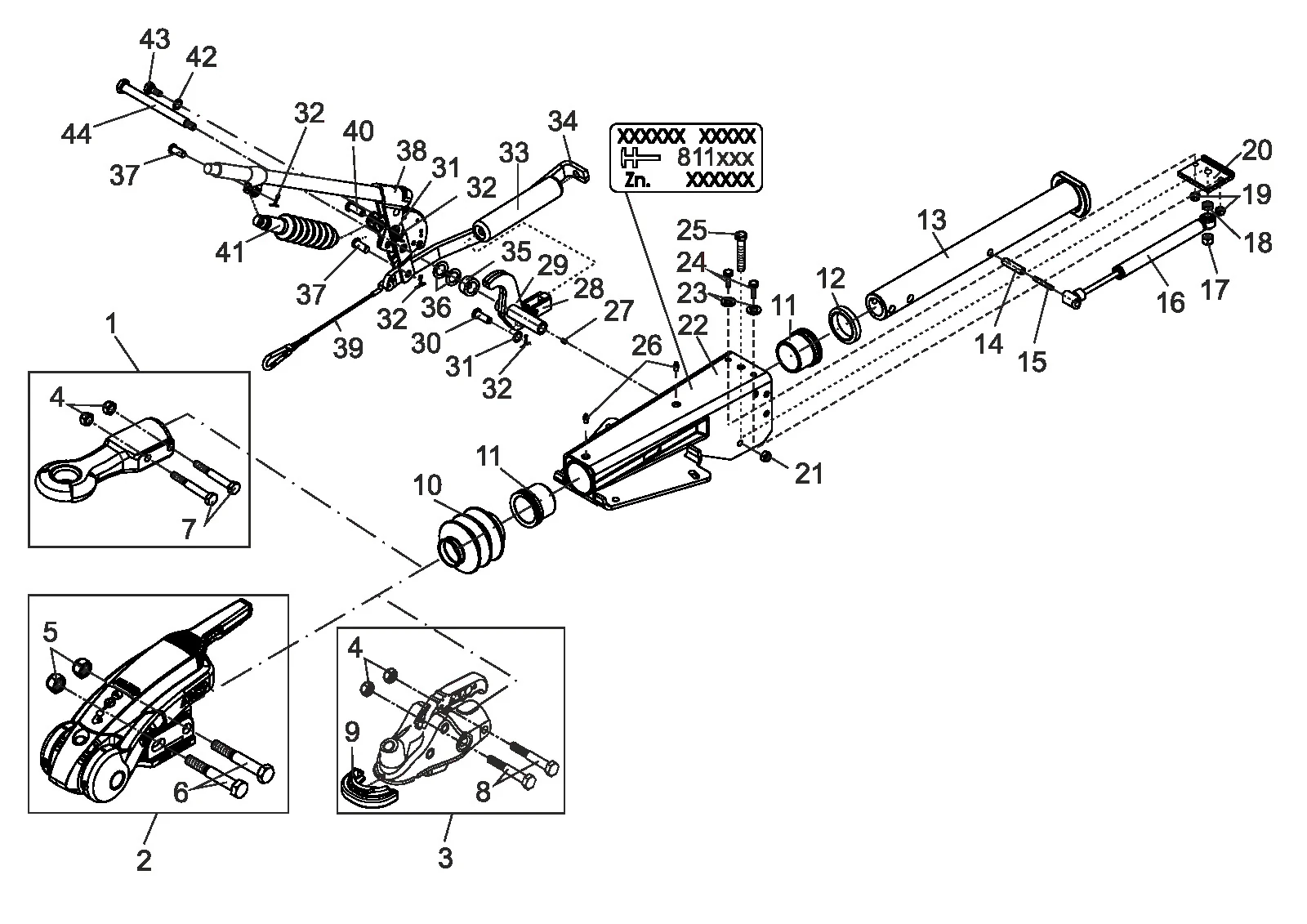

Exploded drawing

Technical drawing 811612

Open full-size drawing (new tab)

AL-KO ETI 811612

Technical details

AL-KO | V-design | 2,8VB/1-C | with gas spring lever | ball coupling

ETI number

811612

Parts

Match the position number in the drawing with the parts list. Available products can be viewed directly.

Spare parts

Parts list for ETI 811612

Use the position number from the exploded drawing to find the correct spare part.

50 parts

Pos.	Article number	Description
1	1224112	Drawbar eye England Ø30 with fixing material	Enquire about this part
1	1224113	Drawbar eye England Ø40 with fixing material	Enquire about this part
1	1224114	Drawbar eye Ø40 with fixing material	View 1224114→
1	1224115	Drawbar eye Italien Ø45 with fixing material	Enquire about this part
1	1224116	Drawbar eye England Ø50 with fixing material	Enquire about this part
1	1224117	Drawbar eye Frankreich Ø68 with fixing material	Enquire about this part
1	1224118	Drawbar eye NATO Ø76 with fixing material	Enquire about this part
2	1225226	AKS3500 connection M14 with mounting parts	Enquire about this part
3	1223716	Coupling AK351 Ø60 with mounting parts+SOFTDOCK	Enquire about this part
4	706306	hexnut M16 DIN 985-8	View 706306→
5	705693	hexnut M14 DIN 985-10	Enquire about this part
6	706354	Hexagon screw M14x100 DIN 931 10.9	Enquire about this part
7	706304	Hexagon screw M16x110 DIN 931 8.8	Enquire about this part
8	706301	Hexagon screw M16x100 DIN 931 8.8	Enquire about this part
9	691937	Soft-dock RAL 3000 AK301/351	View 691937→
10	21726605	Bellows	View 21726605→
11	2172660004	Bearing bush	View 2172660004→
12	2172660003	Damping rubber	View 2172660003→
13	1351222	Draw tube welded with 3 drillings	View 1351222→
14	706296	snap hook 14x55 DIN 1481	Enquire about this part
15	702369	snap hook 8x55 DIN 1481 Geomet	Enquire about this part
16	372854	Shock absorber 351VB	View 372854→
17	705605	hexnut M14 DIN 980-V-8	Enquire about this part
18	706290	Hexnut M14 DIN 439-B-04	Enquire about this part
19	705519	hexnut M10 DIN 985-10	View 705519→
20	647966	End stop plate (from June 2007)	Enquire about this part
21	705526	hexnut M12 DIN 985-10	View 705526→
22	ETK0005	Housing	Enquire about this part
23	705396	Washer A 10,5 DIN 125-ST	View 705396→
24	705458	Hexagon screw M10x30 DIN 933 8.8	Enquire about this part
25	706287	Hexagon screw M14x80 DIN 933 8.8	Enquire about this part
26	375900	Conical grease nipple AS 8x1 DIN 71412	View 375900→
27	700203	Conical grease nipple AS 6x1 DIN 71412	Enquire about this part
28	21783407	Fork head welded	Enquire about this part
29	354264	Deflection lever cpl. iH=90:32	View 354264→
30	706522	Bolt B12 H11x40X34,5 EN22341	Enquire about this part
31	705397	Washer A 13 DIN 125-ST	View 705397→
32	705487	Split pin 3,2x20 DIN 94	Enquire about this part
33	21783408	Spring cylinder cpl.	View 21783408→
34	353137	Tension bracket welde hot dipped	Enquire about this part
35	353140	Distance bush	Enquire about this part
36	2075750006	Washer polyamid	Enquire about this part
37	358533	Bolt	View 358533→
38	220118	Hand brake lever 2,8 VB/1 incl. brake away cable	Enquire about this part
39	209385	Breakaway cable 980 mm length sweden	Enquire about this part
40	706317	Bolt B12 H11x35X29,5 EN22341	Enquire about this part
41	353188	Gas spring GF14/7-676710/14-2000	View 353188→
42	705485	Spring lock washer B12 DIN 127	Enquire about this part
43	705456	Hexagon screwM12x25 DIN 933 8.8	Enquire about this part
44	21783406	Bearing bolt	View 21783406→
