AL-KO ETI 811575 – Overrun device V 161S AKS3004

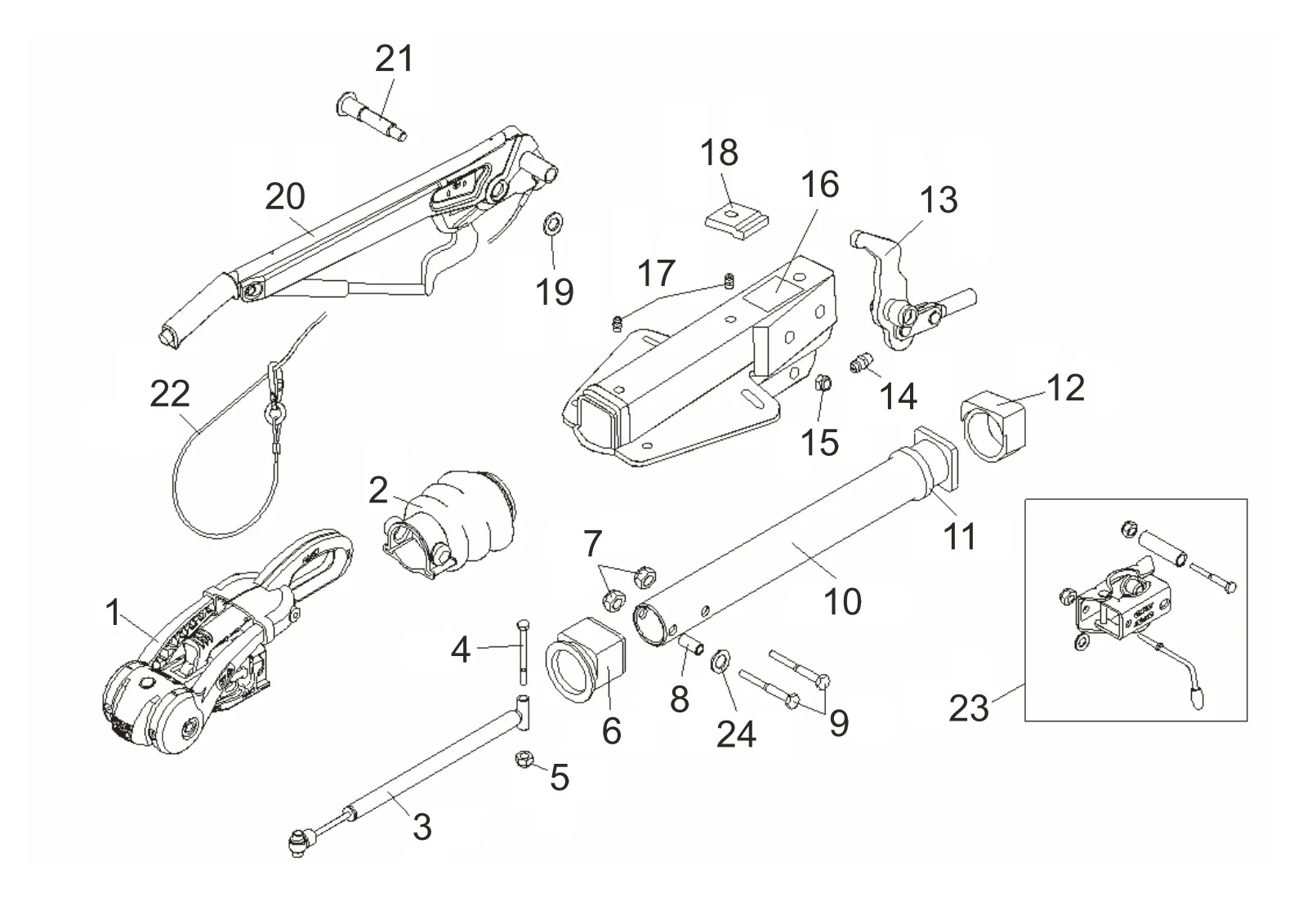

Looking for spare parts for AL-KO ETI 811575? Below you will find the technical exploded drawing and complete parts list for Overrun device V 161S AKS3004.
Go to parts listExploded drawing
Technical drawing 811575
AL-KO ETI 811575
Technical details
AL-KO | V-design | 161S | AKS
ETI number
811575
Parts
24
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811575
Use the position number from the exploded drawing to find the correct spare part.
24 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1220840 | AKS unpacked GA3000 | Enquire about this part |
| 2 | 607133 | Bellows SAFETY-packed | View 607133 |
| 3 | 370556 | Shock absorber 161S | View 370556 |
| 4 | 700312 | Hexagon screw M12x90 DIN 931 8.8 zp | View 700312 |
| 5 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 6 | ETK0030 | Position 6 and 12 included in the set 1210131 | Enquire about this part |
| 7 | 706437 | Self locking nut BIW M12 | View 706437 |
| 8 | 357242 | Distance bush | Enquire about this part |
| 9 | 692034 | Bolt M12X78 at drawing | View 692034 |
| 10 | 1540112 | Draw tube welded | Enquire about this part |
| 11 | 371372 | Damping rubber | View 371372 |
| 12 | ETK0030 | Position 6 and 12 included in the set 1210131 | Enquire about this part |
| 13 | 380285 | Deflection lever cpl. iH=90:30 | Enquire about this part |
| 14 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 15 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 16 | ETK0002 | Housing | Enquire about this part |
| 17 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 18 | 581699 | Stop plate | View 581699 |
| 19 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 20 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 21 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 22 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 23 | 293020 | Jockey whell clamp for tube Ø48 161/251 | View 293020 |
| 24 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
