AL-KO ETI 811539 – Axle lowerable BRA1800/2361 TA 90°
Looking for spare parts for AL-KO ETI 811539? Below you will find the technical exploded drawing and complete parts list for Axle lowerable BRA1800/2361 TA 90°.
Go to parts listExploded drawing

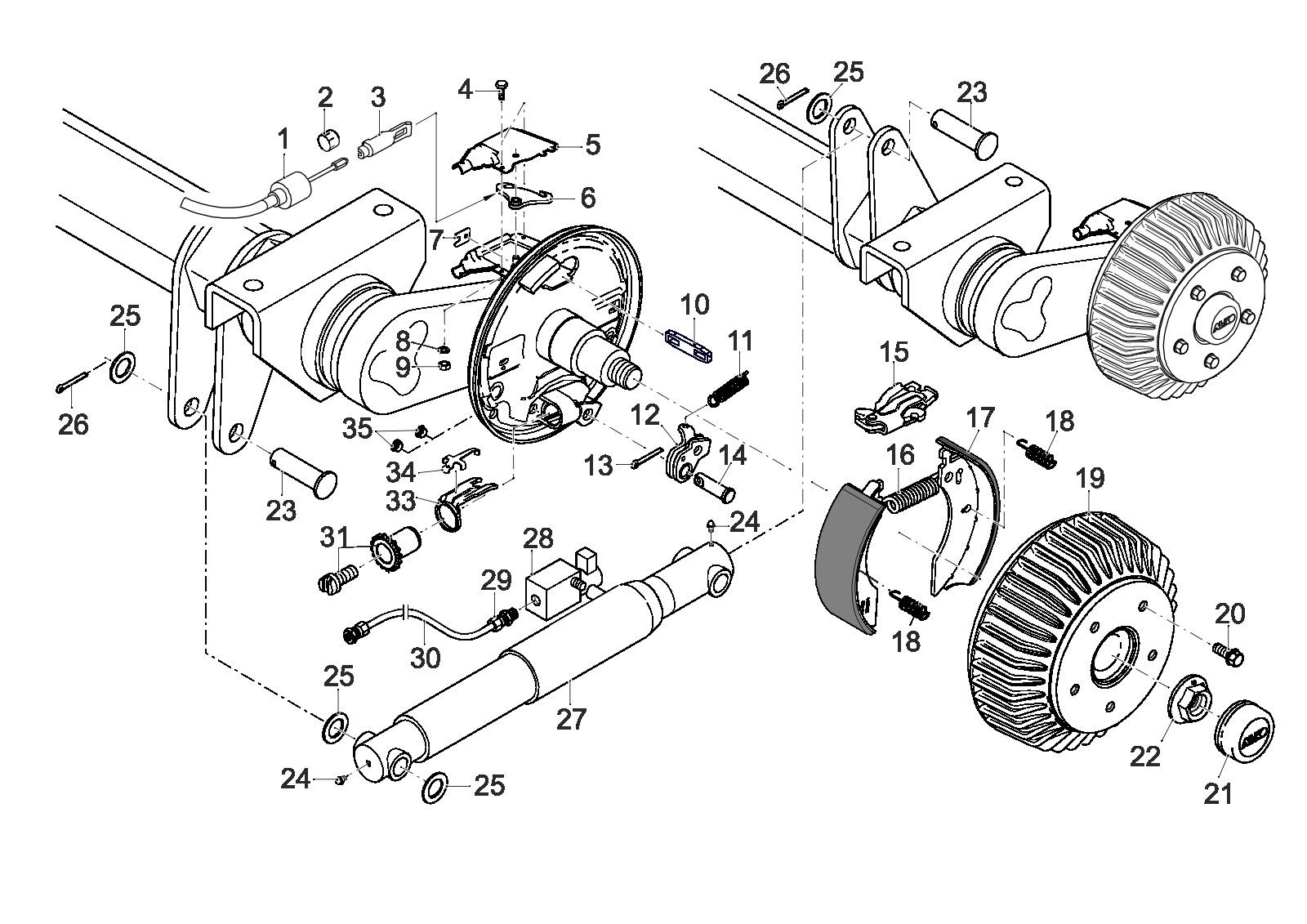

Technical drawing 811539
AL-KO ETI 811539
Technical details
AL-KO | Rubber suspension braked | Lowerable | Axle tube rotatably mounted | BRA1800
ETI number
811539
Parts
49
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811539
Use the position number from the exploded drawing to find the correct spare part.
49 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 247281 | Bowden cable PROFI LONG LIFE 350/546 | Enquire about this part |
| 1 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 1 | 247283 | Bowden cable PROFI LONG LIFE 770/966 | View 247283 |
| 1 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 1 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 1 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 1 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 1 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 1 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 1 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 1 | 1213129 | Bowden cable PROFI LONG LIFE 640/836 | Enquire about this part |
| 1 | 1231436 | Bowden cable PROFI LONG LIFE 2360/3005 | Enquire about this part |
| 2 | 371389 | Protective cap | Enquire about this part |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 706240 | Hexagon screw M5x12 DIN 933 8.8 | Enquire about this part |
| 5 | 692367 | Shell welded left cpl. 2361 | Enquire about this part |
| 5 | 692368 | Shell welded right cpl. 2361 | Enquire about this part |
| 6 | 692415 | Deflection lever | Enquire about this part |
| 7 | 2382610002 | Cover plate | Enquire about this part |
| 8 | 706443 | Spring lock washer B 5 DIN 127 | Enquire about this part |
| 9 | 705482 | Hexnut M5 DIN 934-8 | Enquire about this part |
| 10 | 1935303 | Connecting eye special | Enquire about this part |
| 11 | 2187370003 | Tension spring | View 2187370003 |
| 12 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 12 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 13 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 14 | 368651 | Bearing bolt | Enquire about this part |
| 15 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 16 | 1362597 | Tension spring | Enquire about this part |
| 17 | 1224393 | Spare parts set brake jaw axle whhel brake 2361 | Enquire about this part |
| 18 | 2088800003 | Compression spring | Enquire about this part |
| 19 | 1224805 | Spare parts set bearing (Ø80/Ø42/42) wheel brake 2361 | View 1224805 |
| 19 | 1932109 | Spare parts set brake drum 2361 cpl. with bearing; 112x5 - M12x1,5 | View 1932109 |
| 20 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 20 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 21 | 582505 | Sealing cap Ø65 | View 582505 |
| 22 | 582506 | Flange nut M27x2 | View 582506 |
| 23 | 1310454 | Bolt Ø35/Ø24,8mm; overall length = 99mm; Geomet 321A | Enquire about this part |
| 24 | 700204 | Conical grease nipple AS 8x1 DIN 71412 | View 700204 |
| 25 | 701167 | Washer PA 28x40x2,0 DIN 988 | Enquire about this part |
| 26 | 706330 | Split pin 5x45 DIN 94 | Enquire about this part |
| 27 | 1337450 | Hydraulic cylinder Ø60x290 | Enquire about this part |
| 27 | 1655807 | Seal kit for cylinder 1337450 | Enquire about this part |
| 28 | ETK0018 | Not included in the scope of delivery of AL-KO | Enquire about this part |
| 29 | ETK0018 | Not included in the scope of delivery of AL-KO | Enquire about this part |
| 30 | ETK0018 | Not included in the scope of delivery of AL-KO | Enquire about this part |
| 31 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 33 | 368361 | Bow pressure | View 368361 |
| 34 | 368405 | Compound spring | View 368405 |
