AL-KO ETI 811521 – Overrun device square 70 161S

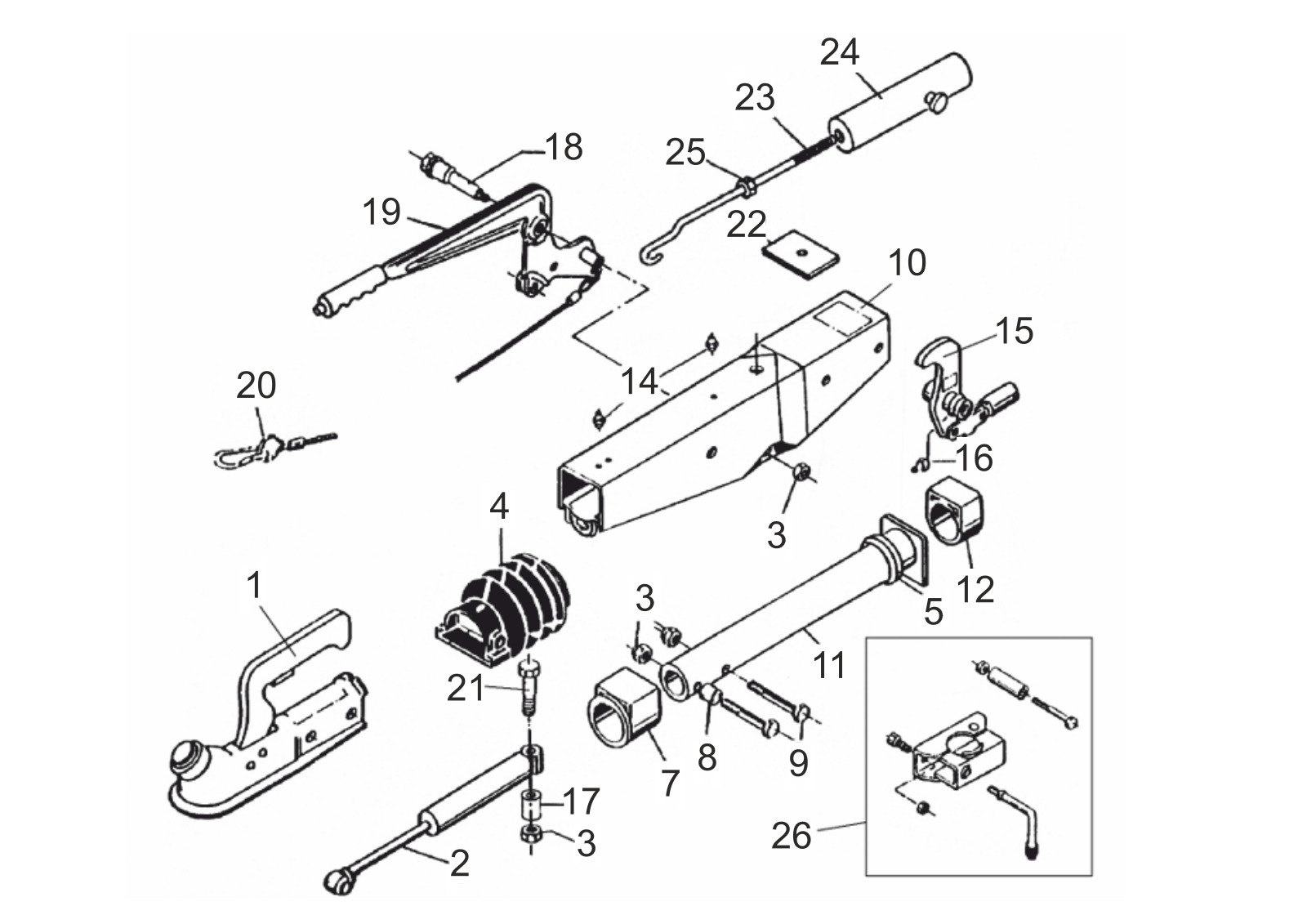

Looking for spare parts for AL-KO ETI 811521? Below you will find the technical exploded drawing and complete parts list for Overrun device square 70 161S.
Go to parts listExploded drawing
Technical drawing 811521
AL-KO ETI 811521
Technical details
AL-KO | square design | 161S | dead center lever | ball coupling
ETI number
811521
Parts
24
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811521
Use the position number from the exploded drawing to find the correct spare part.
24 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | Enquire about this part |
| 2 | 583529 | Shock absorber 131R/161S design B | View 583529 |
| 3 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 7 | 353943 | Flanged bush | Enquire about this part |
| 8 | 357242 | Distance bush | Enquire about this part |
| 9 | 705418 | Hexagon screw M12x70 DIN 931 8.8 | Enquire about this part |
| 10 | ETK0002 | Housing | Enquire about this part |
| 11 | 571873 | Draw tube welded 161S | View 571873 |
| 12 | 353942 | Plain bearing bush | View 353942 |
| 14 | 375900 | Conical grease nipple AS 8x1 DIN 71412 | View 375900 |
| 15 | 380525 | Deflection lever cpl. UNI iH=90:27 | View 380525 |
| 16 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 17 | 625660 | Distance bush 27mm long | Enquire about this part |
| 18 | 647114 | Bearing screw M12x92 | Enquire about this part |
| 19 | 645420 | Hand brake lever incl. brake away cable dead point | Enquire about this part |
| 20 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 21 | 705425 | Hexagon screw M12x120 DIN 931 8.8 | Enquire about this part |
| 22 | 581699 | Stop plate | View 581699 |
| 23 | 607013 | Hook rod | Enquire about this part |
| 24 | 645388 | Spring cylinder cpl. | Enquire about this part |
| 25 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 26 | 293020 | Jockey whell clamp for tube Ø48 161/251 | View 293020 |
