AL-KO ETI 811519 – Overrun device type 161 R/Q
Looking for spare parts for AL-KO ETI 811519? Below you will find the technical exploded drawing and complete parts list for Overrun device type 161 R/Q.
Go to parts listExploded drawing

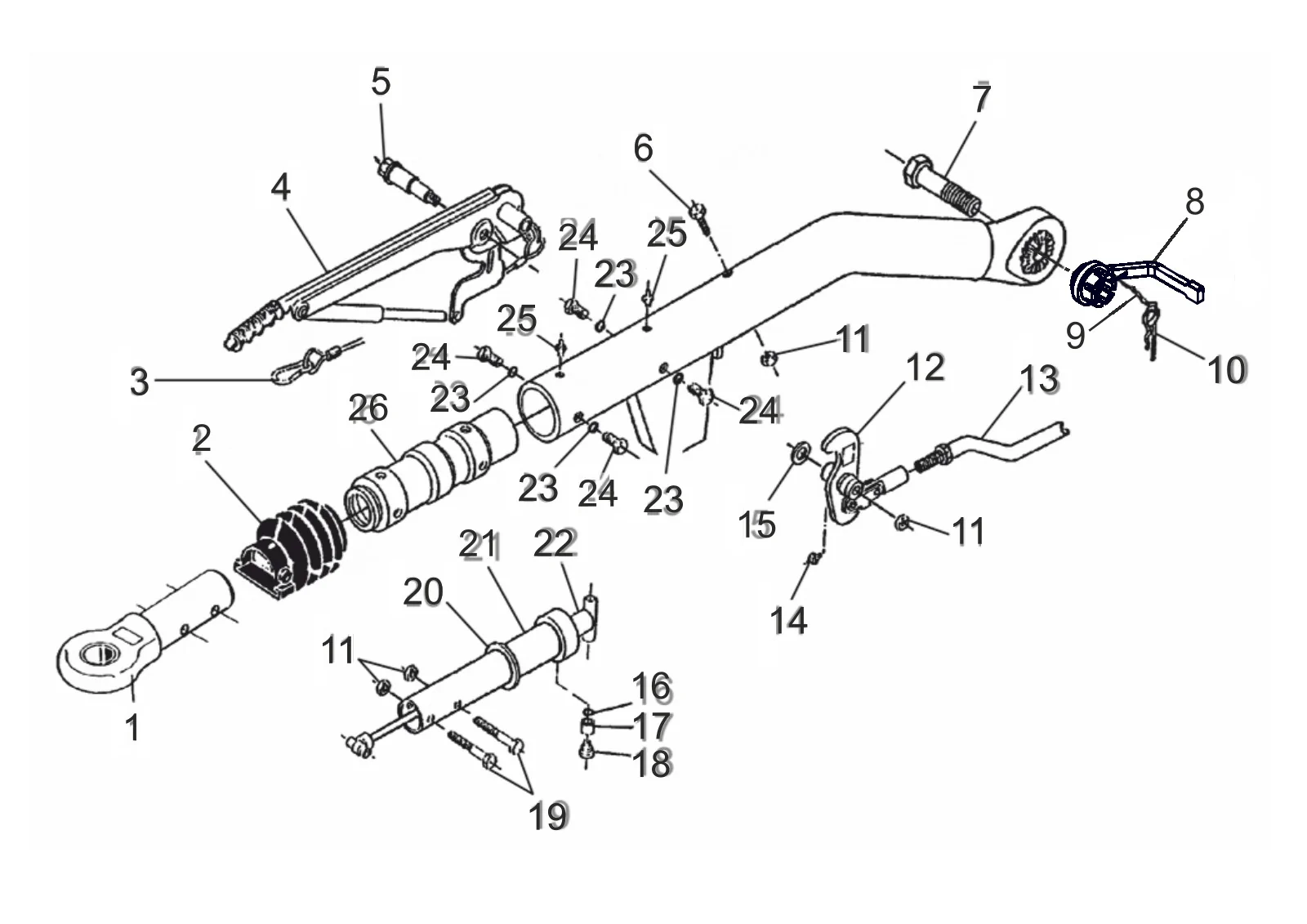

Technical drawing 811519
AL-KO ETI 811519
Technical details
AL-KO | pipe design | 161R | with gas spring lever | drawbar eye
ETI number
811519
Parts
26
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811519
Use the position number from the exploded drawing to find the correct spare part.
26 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 357419 | Drawbar eye DIN Ø40mm 161/251S | View 357419 |
| 2 | 366356 | Bellows | View 366356 |
| 3 | 368605 | Breakaway cable with hooks 950 mm length for common commercial trailers | View 368605 |
| 4 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 5 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 6 | 705420 | Hexagon screw M12x110 DIN 931 8.8 | Enquire about this part |
| 7 | 2025780004 | Clamping screw M24 | Enquire about this part |
| 8 | 1935003 | Clamp handle M24x1,5 | Enquire about this part |
| 9 | 2020920004 | Chain 4 links | Enquire about this part |
| 10 | 706293 | Cotter pin 7 (Ø6,3) DIN 11024 D | Enquire about this part |
| 11 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 12 | 380487 | Deflection lever cpl. UNI iH=90:27 | Enquire about this part |
| 13 | 217738 | Bowden cable overrun device 550/840 | Enquire about this part |
| 14 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 15 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 16 | 706477 | Serrated lock washer A8,4 DIN 6798 | Enquire about this part |
| 17 | 583043 | Bush | Enquire about this part |
| 18 | 583042 | Bearing screw at drawing | Enquire about this part |
| 19 | 705545 | Hexagon screw M12x60 DIN 931 8.8 | Enquire about this part |
| 20 | 371372 | Damping rubber | View 371372 |
| 21 | 380507 | Draw tube welded | Enquire about this part |
| 22 | 370558 | Shock absorber 161S | Enquire about this part |
| 23 | 705544 | Serrated lock washer A10,5 DIN 6798 | Enquire about this part |
| 24 | 706237 | Hexagon screw M10x16 DIN 933 8.8 | Enquire about this part |
| 25 | 368461 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 26 | 583046 | Bearing cartridge | View 583046 |
| Or email info@masta.nl | |||
