AL-KO ETI 811512 – Axle braked TA 5000
Looking for spare parts for AL-KO ETI 811512? Below you will find the technical exploded drawing and complete parts list for Axle braked TA 5000.

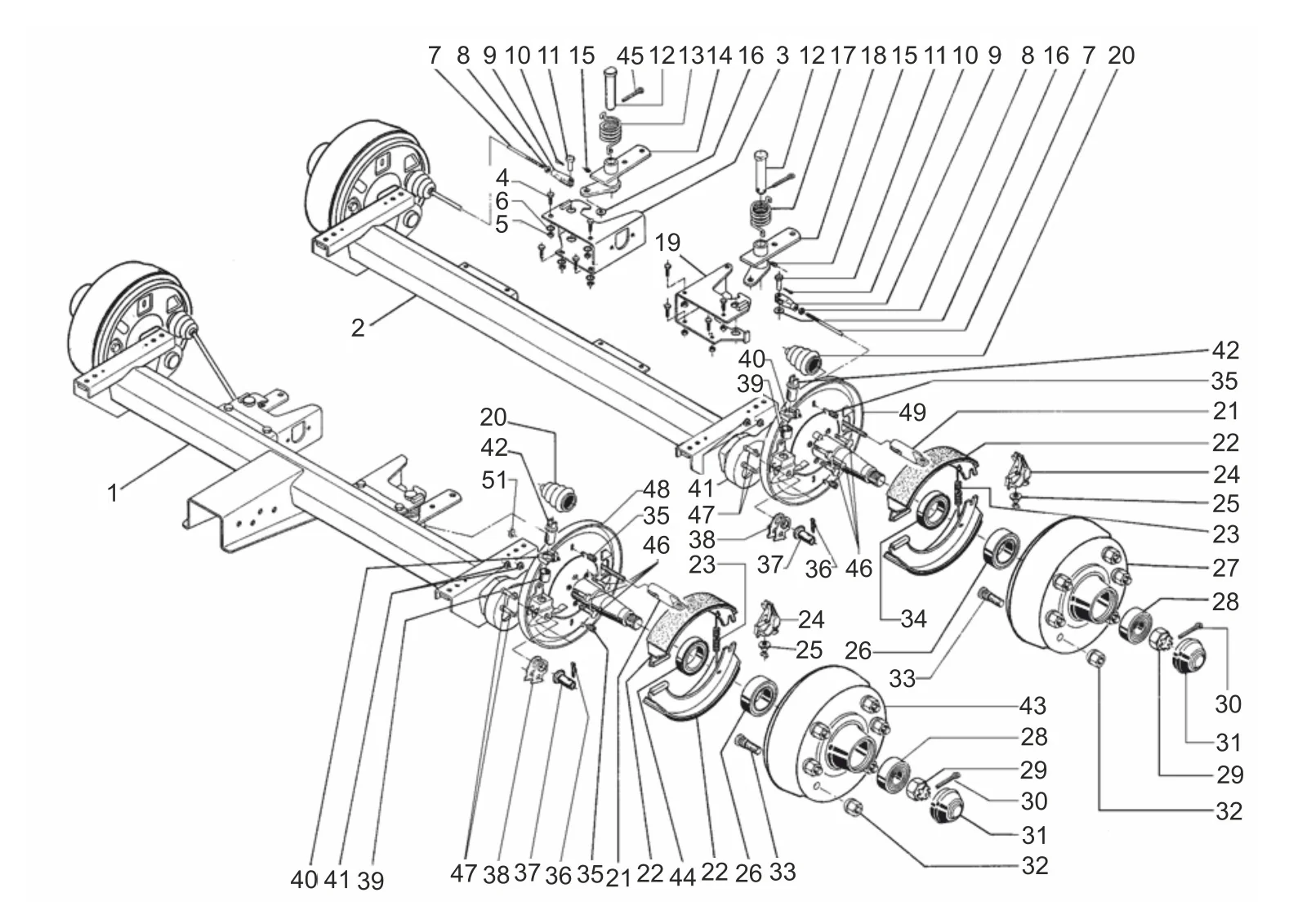

Go to parts listExploded drawing
Technical drawing 811512
AL-KO ETI 811512
Technical details
AL-KO | Rubber suspension braked | Trailing arm
ETI number
811512
Parts
54
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811512
Use the position number from the exploded drawing to find the correct spare part.
54 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0020 | Axle 1 without anti-lock braking system | Enquire about this part |
| 2 | ETK0021 | Axle 1 with anti-lock braking system | Enquire about this part |
| 3 | 1313796 | Console right welded | Enquire about this part |
| 4 | 705457 | Hexagon screw M12x30 DIN 933 8.8 | View 705457 |
| 6 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 7 | ETK0006 | Linkage: Please specify the length and diameter | Enquire about this part |
| 8 | 705378 | Hexnut M10 DIN 934-8 | View 705378 |
| 9 | 706614 | Fork head 10X40 DIN 71752 | View 706614 |
| 10 | 705487 | Split pin 3,2x20 DIN 94 | Enquire about this part |
| 11 | 706298 | Bolt B10 H11x28X23,5 EN22341 | Enquire about this part |
| 12 | 1312391 | Bolt | Enquire about this part |
| 13 | 358268 | Torsion spring right | Enquire about this part |
| 14 | 1312396 | Lever brake right welded | Enquire about this part |
| 15 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 16 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 17 | 358267 | Torsion spring left | Enquire about this part |
| 18 | 1312395 | Lever brake left welded | Enquire about this part |
| 19 | 1313795 | Console left welded | Enquire about this part |
| 20 | 358257 | Bellows wheel brake | Enquire about this part |
| 21 | 358266 | Connection eye | Enquire about this part |
| 22 | 1220334 | Set brake jaw for one axle Achse 3062 | View 1220334 |
| 23 | 355833 | Tension spring left | Enquire about this part |
| 23 | 2589250004 | Tension spring right | Enquire about this part |
| 24 | 692432 | Spread hinge lock left 3081AR replaced by 574371 | Enquire about this part |
| 24 | 692433 | Spread hinge lock right 3081AR replaced by 574372 | Enquire about this part |
| 25 | 692324 | Reset wheel assembly left mounted | Enquire about this part |
| 25 | 692325 | Reset wheel assembly right mounted | Enquire about this part |
| 26 | 701774 | Tapered roller bearing 30211 DIN 720 | Enquire about this part |
| 27 | 1302421 | Brake drum 3062ABV with wheel bolts 205x6 | Enquire about this part |
| 28 | 702125 | Tapered roller bearing 32008 xDIN 720 | Enquire about this part |
| 29 | 706286 | Castle nut M33X1,5 DIN 937 | Enquire about this part |
| 30 | 700856 | Split pin 6,3x63 DIN 94 | Enquire about this part |
| 31 | 368527 | End cap Ø70 | View 368527 |
| 32 | 701202 | Wheel nut DIN 74361-A18- 8 A3B (M18x1,5) | Enquire about this part |
| 33 | 2487940005 | Wheel stud M18x1,5 x58 | Enquire about this part |
| 34 | 702126 | Rotary shaft lip seal AS 65x100x10 DIN 3760-NB | Enquire about this part |
| 35 | 2781960004 | Compression spring | Enquire about this part |
| 36 | 700193 | Split pin 4x25 DIN 94 | Enquire about this part |
| 37 | 706311 | Bolt B16 H11x60X54,0 EN22341- | Enquire about this part |
| 38 | 690613 | Auto reserve lever cpl. 3062AR/ABV | Enquire about this part |
| 39 | 368535 | Bush | Enquire about this part |
| 40 | 358259 | Securing part | Enquire about this part |
| 41 | 373245 | Plug RAL6002 | View 373245 |
| 42 | 646155 | Regulation unit wheel brake 3062/3081 | Enquire about this part |
| 43 | 1302420 | Brake drum3062 with wheel bolts205x6 | Enquire about this part |
| 44 | 358893 | Rotary shaft lip seal AS 65x100x13 DIN 3760-NBR | Enquire about this part |
| 45 | 700197 | Split pin 6,3x36 DIN 94 | Enquire about this part |
| 46 | 705456 | Hexagon screwM12x25 DIN 933 8.8 | Enquire about this part |
| 47 | 706401 | Cylinder screw M 8x18 DIN 912 8.8 | Enquire about this part |
| 48 | 692428 | Braking plate left 3062AR | Enquire about this part |
| 48 | 692429 | Braking plate right 3062AR | Enquire about this part |
| 49 | 692424 | Braking plate left 3062AR/ABV | Enquire about this part |
| 49 | 692425 | Braking plate right 3062AR/ABV | Enquire about this part |
| 51 | 357228 | Seal plug | Enquire about this part |
