AL-KO ETI 811509 – Overrun device V 252G

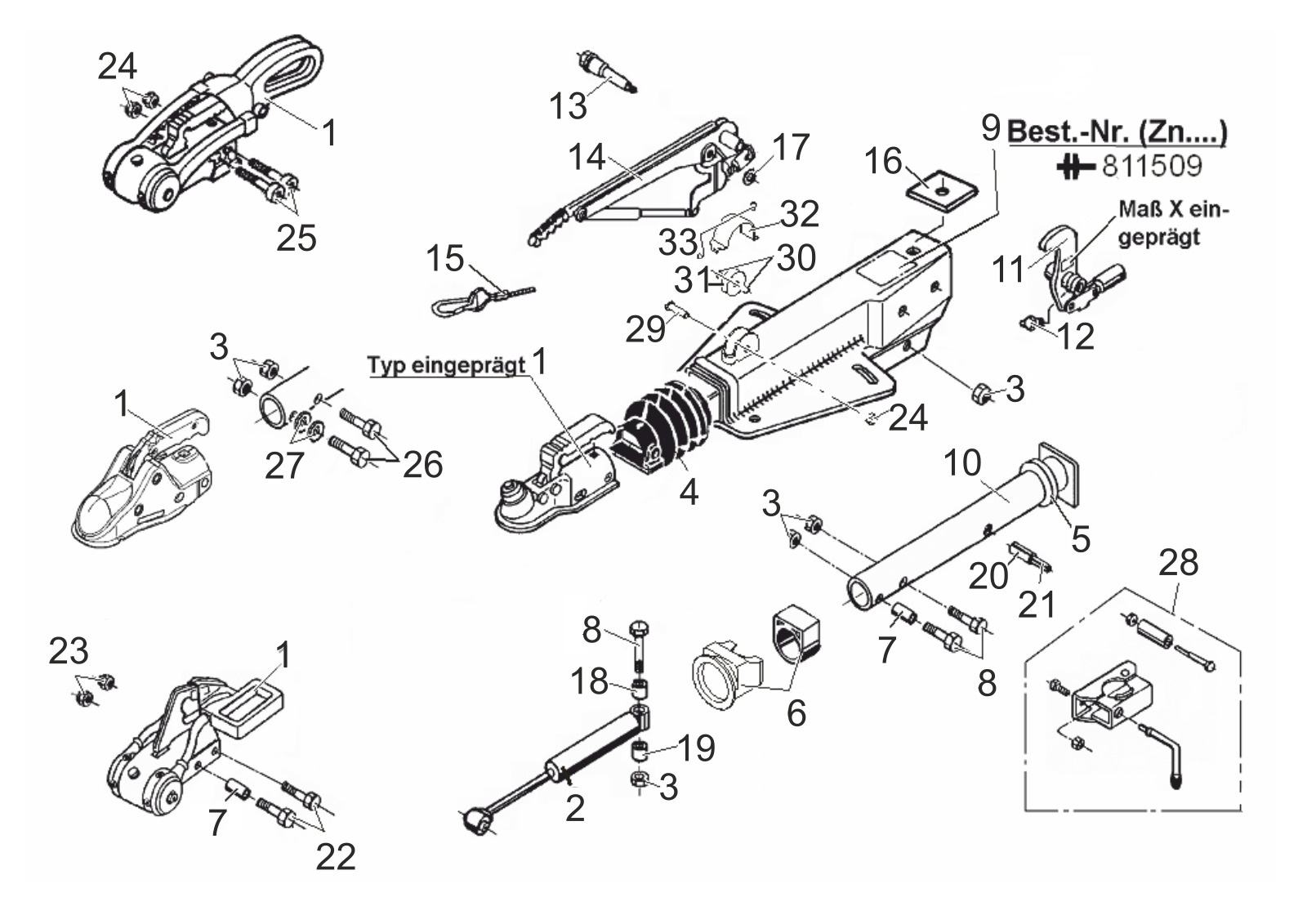

Looking for spare parts for AL-KO ETI 811509? Below you will find the technical exploded drawing and complete parts list for Overrun device V 252G.
Go to parts listExploded drawing
Technical drawing 811509
AL-KO ETI 811509
Technical details
AL-KO | V-design | 252G | with gas spring lever | ball coupling and AKS
ETI number
811509
Parts
35
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811509
Use the position number from the exploded drawing to find the correct spare part.
35 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | Enquire about this part |
| 2 | 372641 | Shock Absorber 251VB/251S/251G | View 372641 |
| 3 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 4 | 366356 | Bellows | View 366356 |
| 5 | 371372 | Damping rubber | View 371372 |
| 6 | 1225404 | Spare part kit bushing overrun machined | Enquire about this part |
| 7 | 647923 | Distance bush | Enquire about this part |
| 8 | 705434 | Hexagon screw M12x90 DIN 931 8.8 | View 705434 |
| 9 | ETK0002 | Housing | Enquire about this part |
| 10 | 625645 | Draw tube welded | View 625645 |
| 11 | 626796 | Deflection lever cpl. iH=90:27 M12 | Enquire about this part |
| 11 | 626827 | Deflection lever cpl. iH=90:30 M12 | Enquire about this part |
| 11 | 626829 | Deflection lever cpl. iH=90:33,5 M12 | Enquire about this part |
| 12 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 13 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 14 | 220098 | Hand brake lever incl. brake away cable 251S/G | View 220098 |
| 15 | 368605 | Breakaway cable with hooks 950 mm length for common commercial trailers | View 368605 |
| 16 | 581699 | Stop plate | View 581699 |
| 17 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 18 | 647903 | Distance bush | Enquire about this part |
| 19 | 647900 | Distance bush | Enquire about this part |
| 20 | 704408 | snap hook 12x48 nach Zeichnung | Enquire about this part |
| 21 | 704407 | snap hook 7x48 nach Zeichnung | Enquire about this part |
| 22 | 706358 | Hexagon screw M12x80 DIN 931 10.9 | Enquire about this part |
| 23 | 705521 | hexnut M12 DIN 980-V-10 ZP | Enquire about this part |
| 24 | 706437 | Self locking nut BIW M12 | View 706437 |
| 25 | 692034 | Bolt M12X78 at drawing | View 692034 |
| 26 | 705442 | Hexagon screw M12x85 DIN 931 8.8 | View 705442 |
| 27 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 28 | 293020 | Retrofit kit, clamp, load capacity 150 kg | View 293020 |
| 29 | 375846 | Bolt | Enquire about this part |
| 30 | 702574 | Washer PA 14x20x1,0 DIN 988 | Enquire about this part |
| 31 | 570259 | Support roll complete | Enquire about this part |
| 32 | 375841 | Covere | Enquire about this part |
| 33 | 702424 | Cylinder screw M3x6 DIN 84 A2-70 | Enquire about this part |
