AL-KO ETI 811467 – Wheel brake EURO 1 2361 waterproofed
Looking for spare parts for AL-KO ETI 811467? Below you will find the technical exploded drawing and complete parts list for Wheel brake EURO 1 2361 waterproofed.

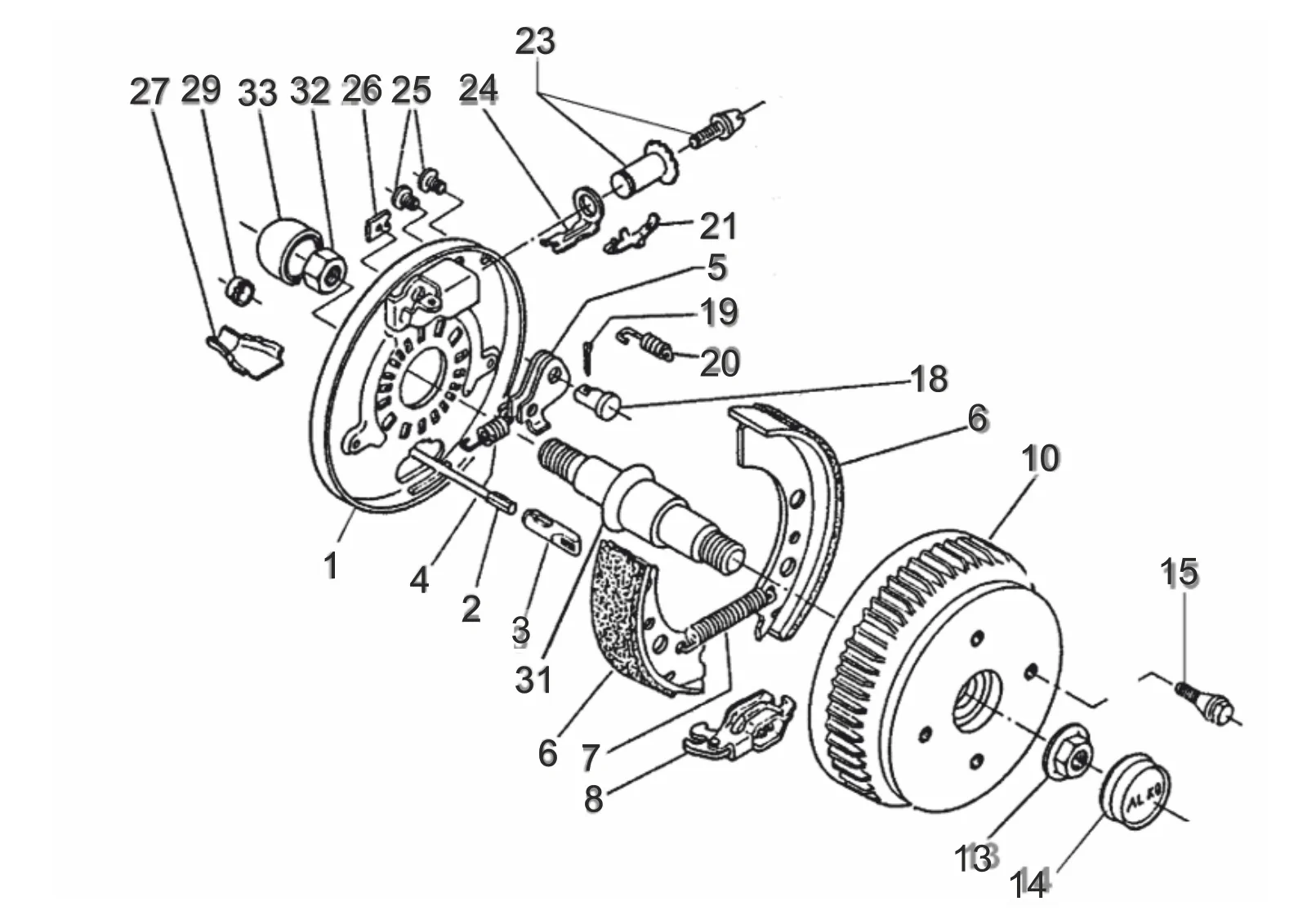

Go to parts listExploded drawing
Technical drawing 811467
AL-KO ETI 811467
Technical details
AL-KO | EURO 1 | 2361 | 900 kg
ETI number
811467
Parts
38
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811467
Use the position number from the exploded drawing to find the correct spare part.
38 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 572372 | Braking plate left 2361 | Enquire about this part |
| 1 | 572373 | Braking plate right 2361 | Enquire about this part |
| 2 | 247281 | Bowden cable PROFI LONG LIFE 350/546 | Enquire about this part |
| 2 | 247282 | Bowden cable PROFI LONG LIFE 530/726 | View 247282 |
| 2 | 247283 | Bowden cable PROFI LONG LIFE 770/966 | View 247283 |
| 2 | 247284 | Bowden cable PROFI LONG LIFE 890/1086 | View 247284 |
| 2 | 247285 | Bowden cable PROFI LONG LIFE 1020/1216 | View 247285 |
| 2 | 247286 | Bowden cable PROFI LONG LIFE 1130/1326 | View 247286 |
| 2 | 247287 | Bowden cable PROFI LONG LIFE 1320/1516 | View 247287 |
| 2 | 247288 | Bowden cable PROFI LONG LIFE 1430/1626 | View 247288 |
| 2 | 247289 | Bowden cable PROFI LONG LIFE 1620/1816 | View 247289 |
| 2 | 247290 | Bowden cable PROFI LONG LIFE 1790/1986 | View 247290 |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 2082000007 | Tension spring | View 2082000007 |
| 4 | 2187370003 | Tension spring | View 2187370003 |
| 5 | 571386 | Auto reserve lever cpl. left | Enquire about this part |
| 5 | 571387 | Auto reserve lever cpl. right | Enquire about this part |
| 6 | 1213890 | Set brake shoe 2360/2361 | View 1213890 |
| 8 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 10 | 1224806 | Spare parts set bearing wheel brake 2361 waterproofed | Enquire about this part |
| 10 | 1932119 | SP-set brake drum 2361 cpl. with waterproof bearing; 112x5 - M12x1,5 | View 1932119 |
| 13 | 582506 | Flange nut M27x2 | View 582506 |
| 14 | 1337300 | Sealing cap Ø65 watertight | View 1337300 |
| 15 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 15 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 18 | 368651 | Bearing bolt | Enquire about this part |
| 19 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 20 | 2088800003 | Compression spring | Enquire about this part |
| 21 | 368405 | Compound spring | View 368405 |
| 23 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 24 | 368361 | Bow pressure | View 368361 |
| 25 | 373245 | Plug RAL6002 | View 373245 |
| 26 | 2382610002 | Cover plate | Enquire about this part |
| 27 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 29 | 371389 | Protective cap | Enquire about this part |
| 31 | 582541 | Stub axle Ø42 bend 0°30' | View 582541 |
| 32 | 703112 | Hexagon lock nut M30 according to drawing | View 703112 |
| 33 | 582542 | Protective cap | Enquire about this part |
