AL-KO ETI 811441 – Hub wheel loadt 425 Kg
Looking for spare parts for AL-KO ETI 811441? Below you will find the technical exploded drawing and complete parts list for Hub wheel loadt 425 Kg.

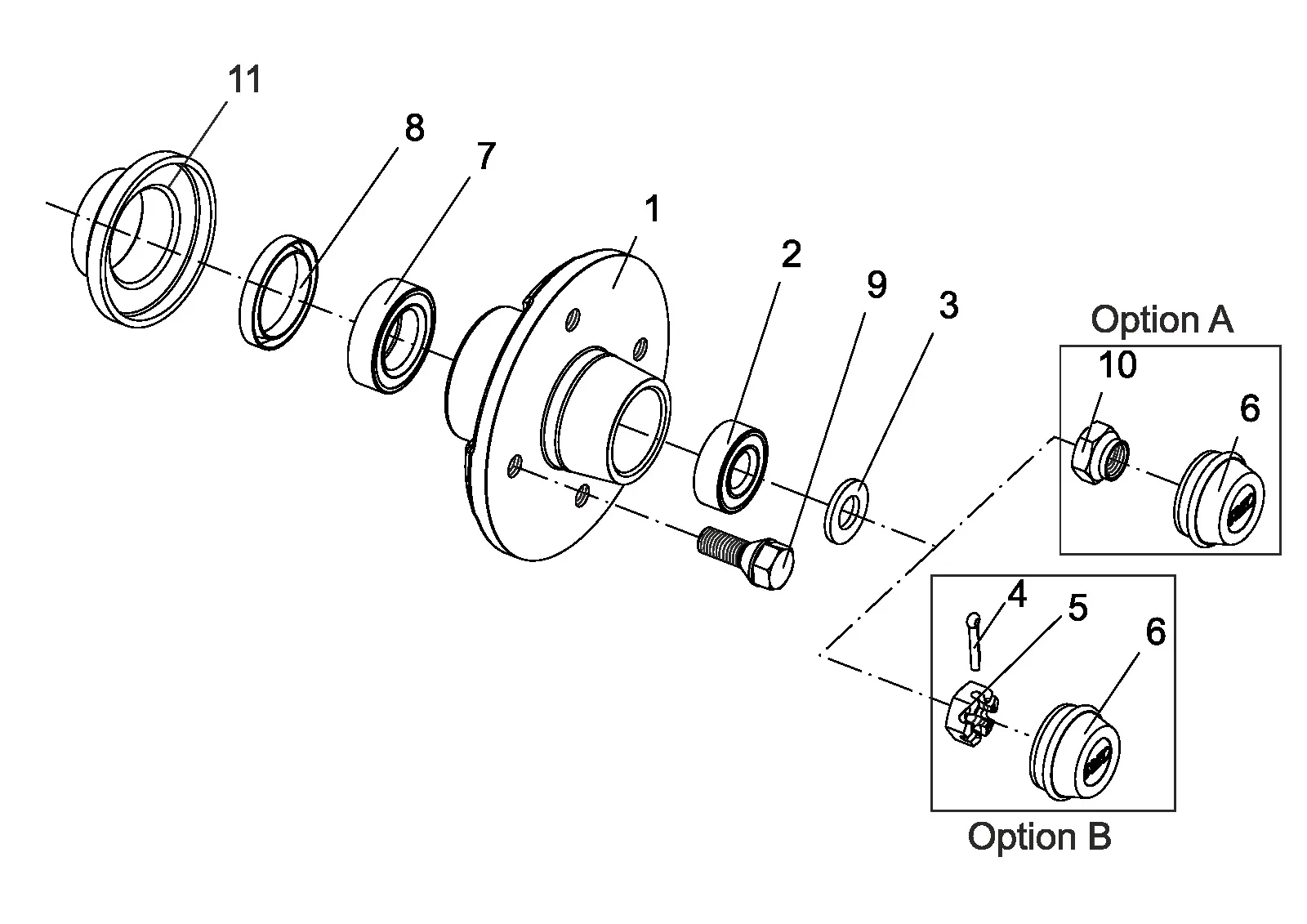

Exploded drawing
Technical drawing 811441
AL-KO ETI 811441
Technical details
AL-KO | standard | 425 kg
ETI number
811441
Parts
18
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811441
Use the position number from the exploded drawing to find the correct spare part.
18 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1369671 | Hub cpl. with bearing112x5-M12x1,5 | View 1369671 |
| 1 | 1369672 | Hub cpl. with bearing100x5-M12x1,5 | |
| 1 | 1369673 | Hub cpl. with bearing114,3x5-M12x1,5 | |
| 1 | 1369674 | Hub cpl. with bearing750 kg 98x4-M12x1,5 | |
| 1 | 1369675 | Hub cpl. with bearing100x4-M12x1,5 | View 1369675 |
| 1 | 1369676 | Hub cpl. with bearing115x4-M12x1,5 | |
| 1 | 1369677 | Hub cpl. with bearing101,6x4-12,7x1,27 | |
| 2 | 701512 | Tapered roller bearing LM 11749/710 | View 701512 |
| 3 | 706081 | Washer A 17 DIN 125-ST | |
| 4 | 700192 | Split pin 4x20 DIN 94 (at drawing) | |
| 5 | 700754 | Castle nut M16X1,5 DIN 937 | View 700754 |
| 6 | 2381250003 | End cap Ø40 | View 2381250003 |
| 7 | 701513 | Tapered roller bearing LM 45449/410 | View 701513 |
| 8 | 701511 | Rotary shaft lip seal AS 40x52x7 DIN 3760-NB | View 701511 |
| 9 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | |
| 9 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 10 | 1312008 | Self locking nut M16x1,5 | View 1312008 |
| 11 | 1312431 | Impact protection Ø40/66 | View 1312431 |
