AL-KO ETI 811430 – Overrun device kpl. 131R/A
Looking for spare parts for AL-KO ETI 811430? Below you will find the technical exploded drawing and complete parts list for Overrun device kpl. 131R/A.
Go to parts listExploded drawing

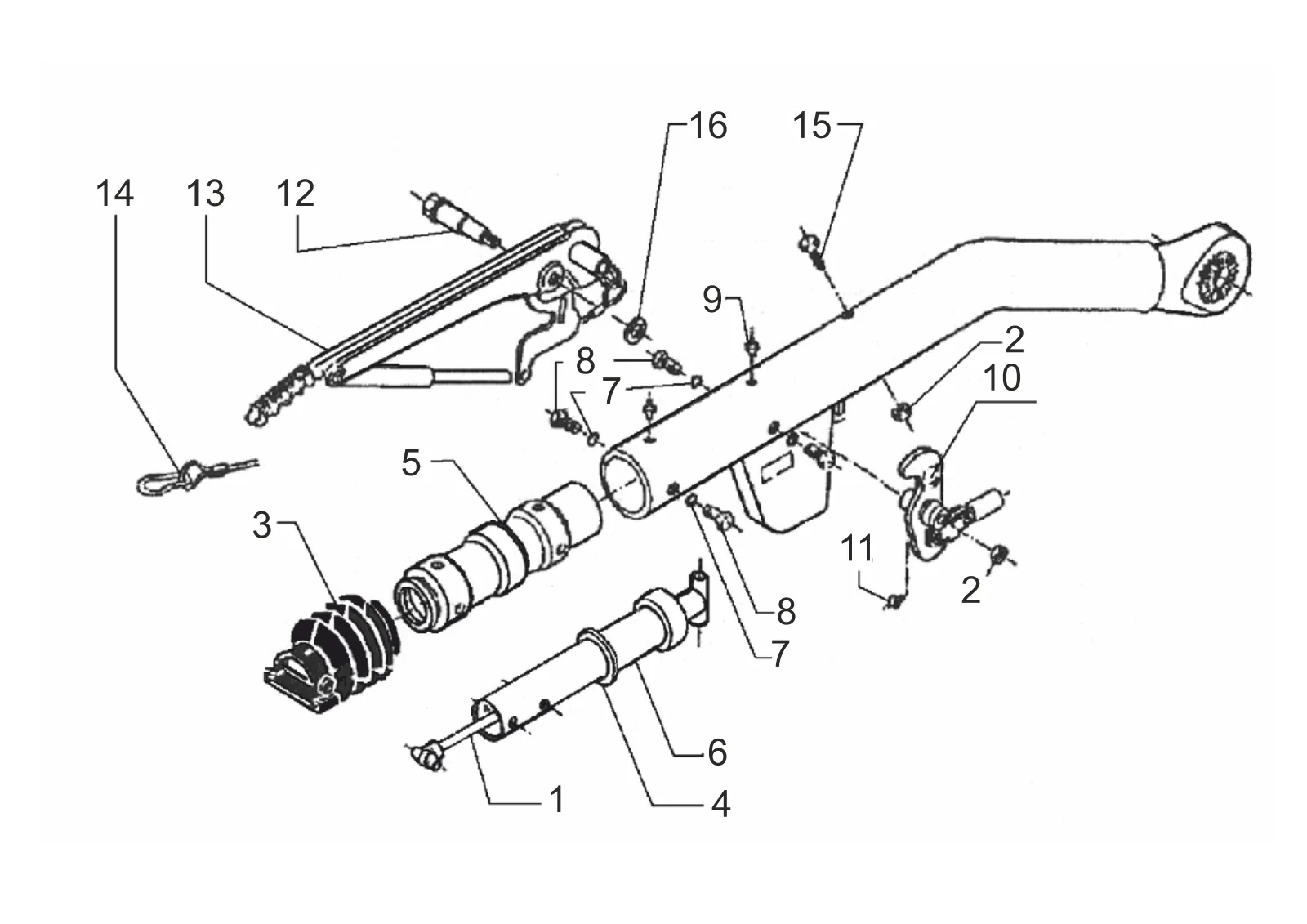

Technical drawing 811430
AL-KO ETI 811430
Technical details
AL-KO | pipe design | 131R | with gas spring lever | without ball coupling parts
ETI number
811430
Parts
16
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811430
Use the position number from the exploded drawing to find the correct spare part.
16 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 583528 | Shock absorber 131R | View 583528 |
| 2 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 3 | 366356 | Bellows | View 366356 |
| 4 | 371372 | Damping rubber | View 371372 |
| 5 | 583046 | Bearing cartridge | View 583046 |
| 6 | 380507 | Draw tube welded | Enquire about this part |
| 7 | 705544 | Serrated lock washer A10,5 DIN 6798 | Enquire about this part |
| 8 | 706237 | Hexagon screw M10x16 DIN 933 8.8 | Enquire about this part |
| 9 | 368461 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 10 | 384655 | Deflection lever cpl. iH=90:27 | View 384655 |
| 11 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 12 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 13 | 220096 | Hand brake lever incl. brake away cable 161S-251S-161R | View 220096 |
| 14 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 15 | 705420 | Hexagon screw M12x110 DIN 931 8.8 | Enquire about this part |
| 16 | 370693 | Washer Ø19x34x3 | Enquire about this part |
