AL-KO ETI 811402 – Wheel brake 3062 AR
Looking for spare parts for AL-KO ETI 811402? Below you will find the technical exploded drawing and complete parts list for Wheel brake 3062 AR.

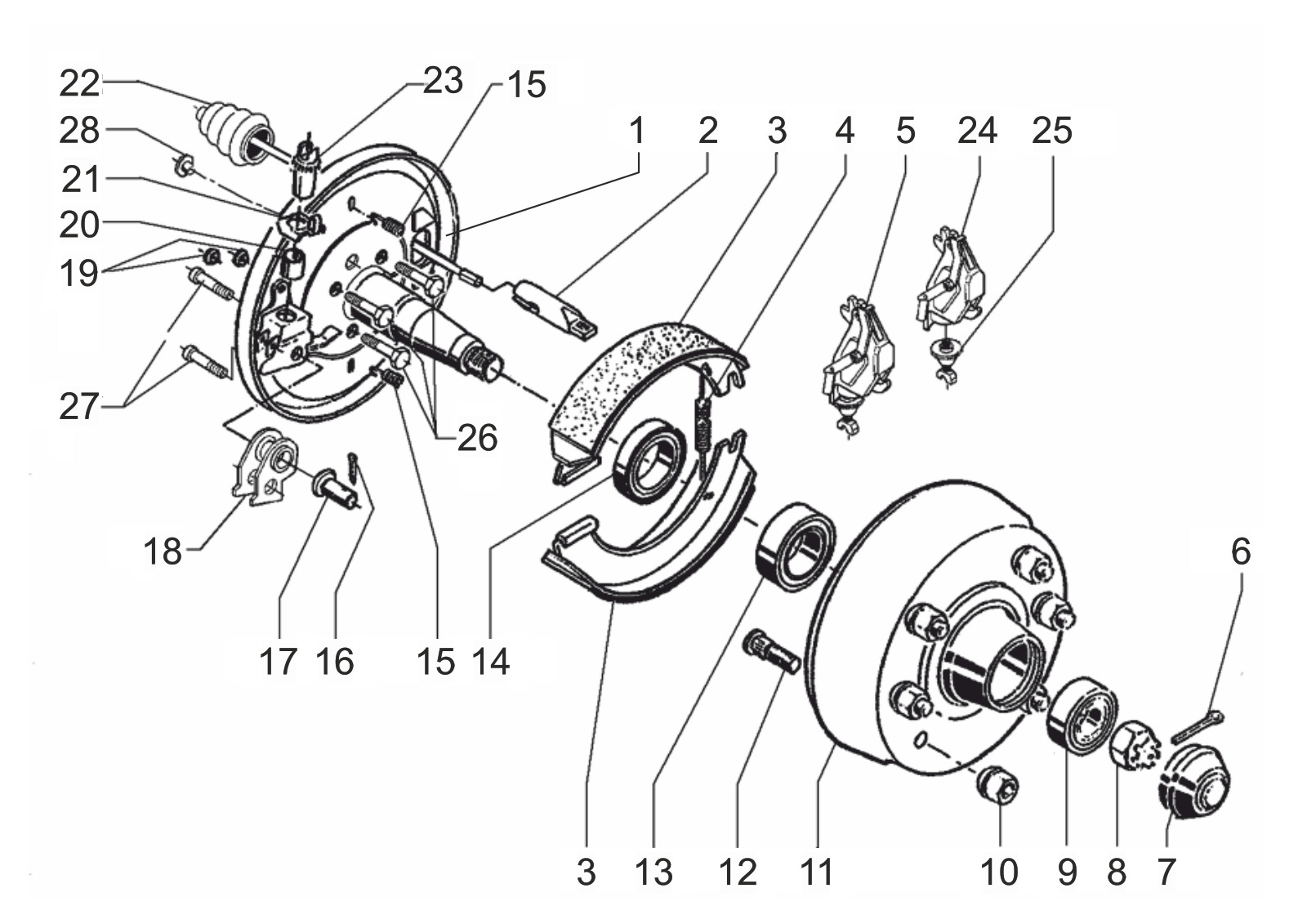

Go to parts listExploded drawing
Technical drawing 811402
AL-KO ETI 811402
Technical details
AL-KO | standard | 3062AR
ETI number
811402
Parts
33
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811402
Use the position number from the exploded drawing to find the correct spare part.
33 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 691001 | Braking plate left 3062AR | Enquire about this part |
| 1 | 691002 | Braking plate right 3062AR | Enquire about this part |
| 2 | 358266 | Connection eye | Enquire about this part |
| 3 | 1220334 | Set brake shoe for one axle 3062 | View 1220334 |
| 4 | 355833 | Tension spring left | Enquire about this part |
| 4 | 2589250004 | Tension spring right | Enquire about this part |
| 5 | 574371 | Expanding joint lock left 3081AR | Enquire about this part |
| 5 | 574372 | Expanding joint lock right 3081AR | Enquire about this part |
| 6 | 700856 | Split pin 6,3x63 DIN 94 | Enquire about this part |
| 7 | 368527 | Sealing cap Ø70 | View 368527 |
| 8 | 706286 | Castle nut M33X1,5 DIN 937 | Enquire about this part |
| 9 | 702125 | Tapered roller bearing DIN 720 - 32008-X | Enquire about this part |
| 10 | 701202 | Wheel nut DIN 74361-A18- 8 A3B (M18x1,5) | Enquire about this part |
| 11 | 1932134 | SP-set brake drum 3062 with wheel bolts M18x1,5 cpl. with bearing; 205x6 | Enquire about this part |
| 12 | 2487940005 | Wheel stud M18x1,5 x58 | Enquire about this part |
| 13 | 701774 | Tapered roller bearing DIN 720 - 30211 | Enquire about this part |
| 14 | 702126 | Rotary shaft lip seal AS 65x100x10 DIN 3760-NB | Enquire about this part |
| 15 | 2781960004 | Compression spring | Enquire about this part |
| 16 | 700193 | Split pin 4x25 DIN 94 | Enquire about this part |
| 17 | 706311 | Bolt B16 H11x60X54,0 EN22341- | Enquire about this part |
| 18 | 690613 | Auto reserve lever cpl. 3062AR/ABV | Enquire about this part |
| 19 | 373245 | Plug RAL6002 | View 373245 |
| 20 | 368535 | Bush | Enquire about this part |
| 21 | 358259 | Securing part | Enquire about this part |
| 22 | 375411 | Bellows wheel brake 3081 | Enquire about this part |
| 23 | 646155 | Regulation unit wheel brake 3062/3081 | Enquire about this part |
| 24 | 614340 | Spread hinge lock left assembly | Enquire about this part |
| 24 | 614341 | Spread hinge lock right 3081 | Enquire about this part |
| 25 | 614338 | Reset wheel assembly left mounted | Enquire about this part |
| 25 | 614339 | Reset wheel assembly right mounted | Enquire about this part |
| 26 | 705456 | Hexagon screwM12x25 DIN 933 8.8 | Enquire about this part |
| 27 | 706401 | Cylinder screw M 8x18 DIN 912 8.8 | Enquire about this part |
| 28 | 357228 | Seal plug | Enquire about this part |
