AL-KO ETI 811400 – Torsion bar spring axle 16250 Baldinger
Looking for spare parts for AL-KO ETI 811400? Below you will find the technical exploded drawing and complete parts list for Torsion bar spring axle 16250 Baldinger.
Go to parts listExploded drawing

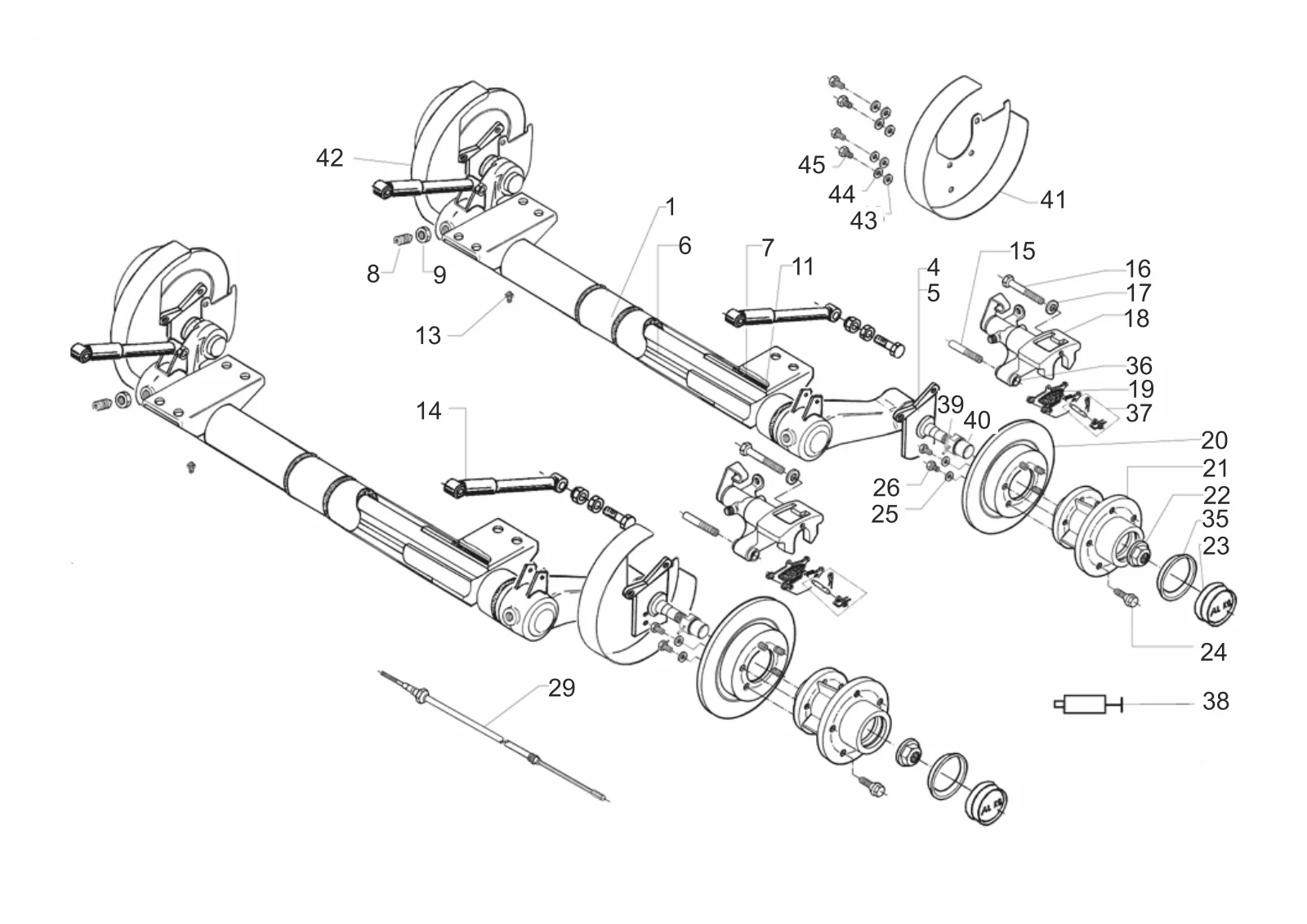

Technical drawing 811400
AL-KO ETI 811400
Technical details
AL-KO | Torsion bar suspension | Trailing arm | 16250
ETI number
811400
Parts
39
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811400
Use the position number from the exploded drawing to find the correct spare part.
39 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1371448 | Axle profile cpl. mounted 82x4 standard | Enquire about this part |
| 4 | 1370660 | Swing arm left | Enquire about this part |
| 5 | 1370661 | Swing arm right welded | Enquire about this part |
| 6 | 382474 | Torsion bar 30x2 1386 long | Enquire about this part |
| 7 | L2057110 | Bearing bush | Enquire about this part |
| 8 | L2058710 | Setscrew M20x1,5 | Enquire about this part |
| 9 | L2058980 | Nut M20x1.5 | Enquire about this part |
| 11 | L2067280 | Seal ring Ø63x73,5x5,3 | Enquire about this part |
| 13 | L2035820 | Grease nipple AM8X1 Kegel DIN 71412 | Enquire about this part |
| 14 | 1293886 | Shock absorber A3-115-4 | Enquire about this part |
| 15 | 1562336 | Bearing bolt | Enquire about this part |
| 16 | 702658 | Hexagon screw M10x85 DIN 931 8.8 zp | Enquire about this part |
| 17 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 18 | 690807 | Brake caliper left | Enquire about this part |
| 18 | 690808 | Brake caliper right | Enquire about this part |
| 19 | 1360187 | Brake pad set EBC-green AF65/7DP6885 | Enquire about this part |
| 20 | 690812 | Brake disc | Enquire about this part |
| 21 | 1360379 | Hub complete with bearing | Enquire about this part |
| 21 | 1360380 | Hub complete with bearing | Enquire about this part |
| 21 | 1360381 | Hub complete with bearing | Enquire about this part |
| 22 | 581200 | Flange nut M24x1,5 | View 581200 |
| 23 | 582505 | End cap Ø65 | View 582505 |
| 24 | 2081670002 | Wheel bolt sperical M14x1,5 x25 | Enquire about this part |
| 25 | 705485 | Spring lock washer B12 DIN 127 | Enquire about this part |
| 26 | 705457 | Hexagon screw M12x30 DIN 933 8.8 | View 705457 |
| 29 | 1292671 | Bowden cable 1130/1340 long nipple | Enquire about this part |
| 29 | 1292674 | Bowden cable 1620/1830 long nipple | Enquire about this part |
| 35 | 1303804 | Distance ring | Enquire about this part |
| 36 | 1221259 | Spare parts set bush disc brake BREMBO | Enquire about this part |
| 37 | 1220261 | Repair kit Brembo-122.5089.12 | Enquire about this part |
| 38 | 1337019 | Braking cylinder paste tube 4 ml | Enquire about this part |
| 38 | 1337020 | Brake pad grease tube 4 ml | Enquire about this part |
| 39 | 702140 | Round-head screw M 8x135 DIN 603 4.6 zp | Enquire about this part |
| 40 | 692008 | Bush | Enquire about this part |
| 41 | 1360430 | Protection plate left welded | Enquire about this part |
| 42 | 1360431 | Protection plate right welded | Enquire about this part |
| 43 | 705493 | washer 8,4 DIN 9021-ST | Enquire about this part |
| 44 | 705394 | Spring lock washer B 8 DIN 127 | Enquire about this part |
| 45 | 705453 | Hexagon screw M8x20 DIN 933 8.8 | Enquire about this part |
