AL-KO ETI 811380 – Drawbar type 120SR/121SR
Looking for spare parts for AL-KO ETI 811380? Below you will find the technical exploded drawing and complete parts list for Drawbar type 120SR/121SR.
Go to parts listExploded drawing

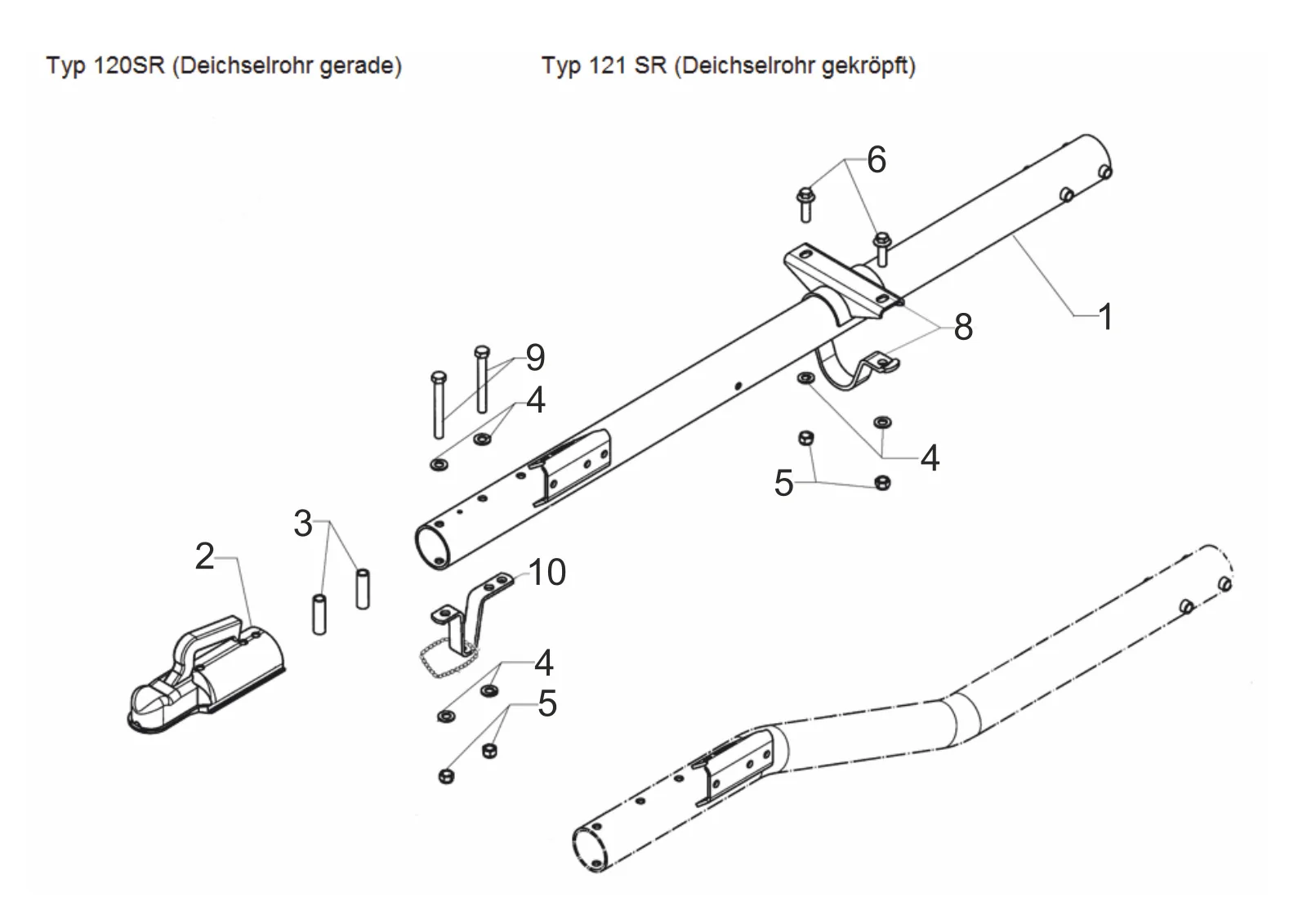

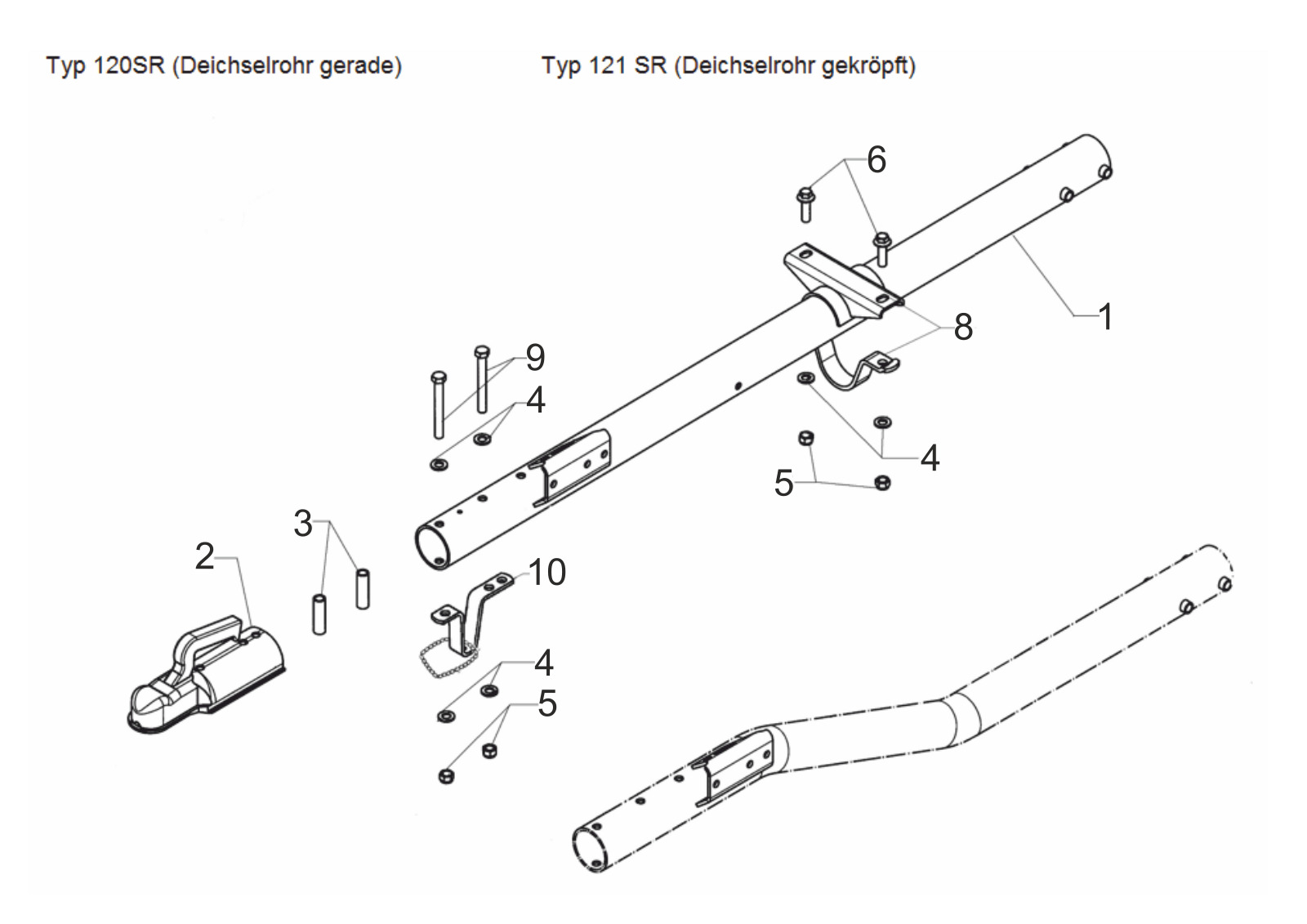

Technical drawing 811380
AL-KO ETI 811380
Technical details
AL-KO | round tube | unbraked | 120SR/121SR
ETI number
811380
Parts
10
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811380
Use the position number from the exploded drawing to find the correct spare part.
10 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0022 | Drawbar | Enquire about this part |
| 2 | 203253 | Coupling AK7/C Ø70 | Enquire about this part |
| 3 | 602700 | Bush | Enquire about this part |
| 4 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 5 | 700123 | hexnut M12 DIN 985-10 | Enquire about this part |
| 6 | 705449 | Hexagon screw M12x40 DIN 933 8.8 | Enquire about this part |
| 7 | 2586030001 | Clamp bracket for pipe Ø70 | Enquire about this part |
| 8 | 294053 | Support frame tube 70 with bracket | Enquire about this part |
| 9 | 705421 | Hexagon screw M12x100 DIN 931 8.8 | Enquire about this part |
| 10 | 211739 | Bracket with chain | Enquire about this part |
