AL-KO ETI 811377 – Overrun device 60 S/2
Looking for spare parts for AL-KO ETI 811377? Below you will find the technical exploded drawing and complete parts list for Overrun device 60 S/2.

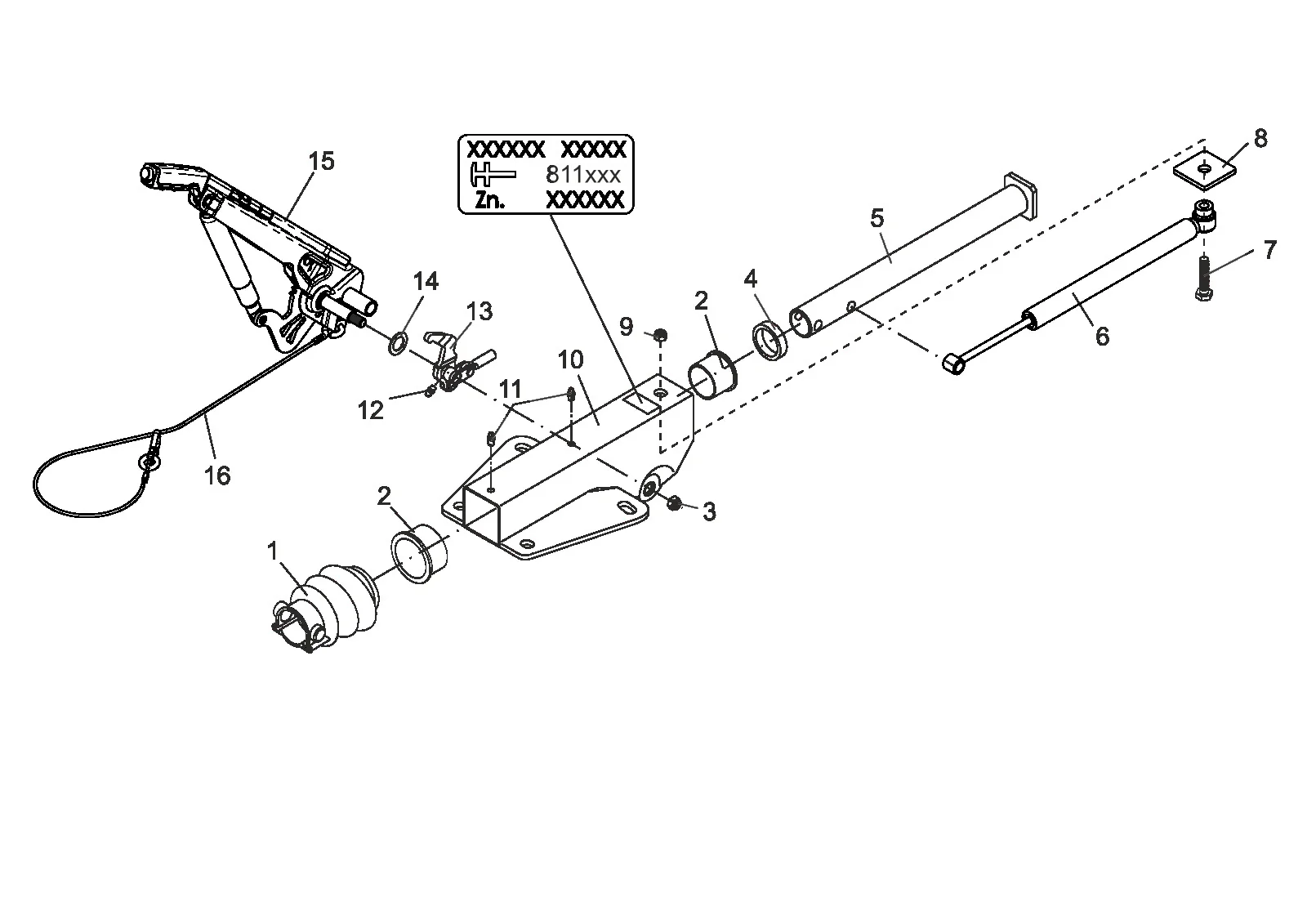

Exploded drawing
Technical drawing 811377
AL-KO ETI 811377
Technical details
AL-KO | V-design | 60S/2 | with gas spring lever | without ball coupling parts
ETI number
811377
Parts
17
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811377
Use the position number from the exploded drawing to find the correct spare part.
17 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 2073890210 | Bellows | View 2073890210 |
| 2 | 1210678 | Kit bushs overrun device | View 1210678 |
| 3 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 4 | 2072410207 | Damping rubber | View 2072410207 |
| 5 | 625626 | Draw tube welded 90 S/3 | View 625626 |
| 6 | 20767204 | Shock Absorber 60S | View 20767204 |
| 7 | 706312 | Hexagon screw M10x50 DIN 931 8.8 | |
| 8 | 625627 | Stop plate | |
| 9 | 706435 | Self locking nut BIW M10 | |
| 10 | ETK0005 | Housing | |
| 11 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | |
| 12 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | |
| 13 | 384655 | Deflection lever cpl. iH=90:27 | View 384655 |
| 13 | 626673 | Deflection lever cpl. iH=90:23 | |
| 14 | 370693 | Washer Ø19x34x3 | |
| 15 | 696758 | Hand brake lever incl. brake away cable | |
| 16 | 368605 | Breakaway cable with hooks 950 mm length for common commercial trailers | View 368605 |
