AL-KO ETI 811348 – Overrun device square 90S/3
Looking for spare parts for AL-KO ETI 811348? Below you will find the technical exploded drawing and complete parts list for Overrun device square 90S/3.
Go to parts listExploded drawing

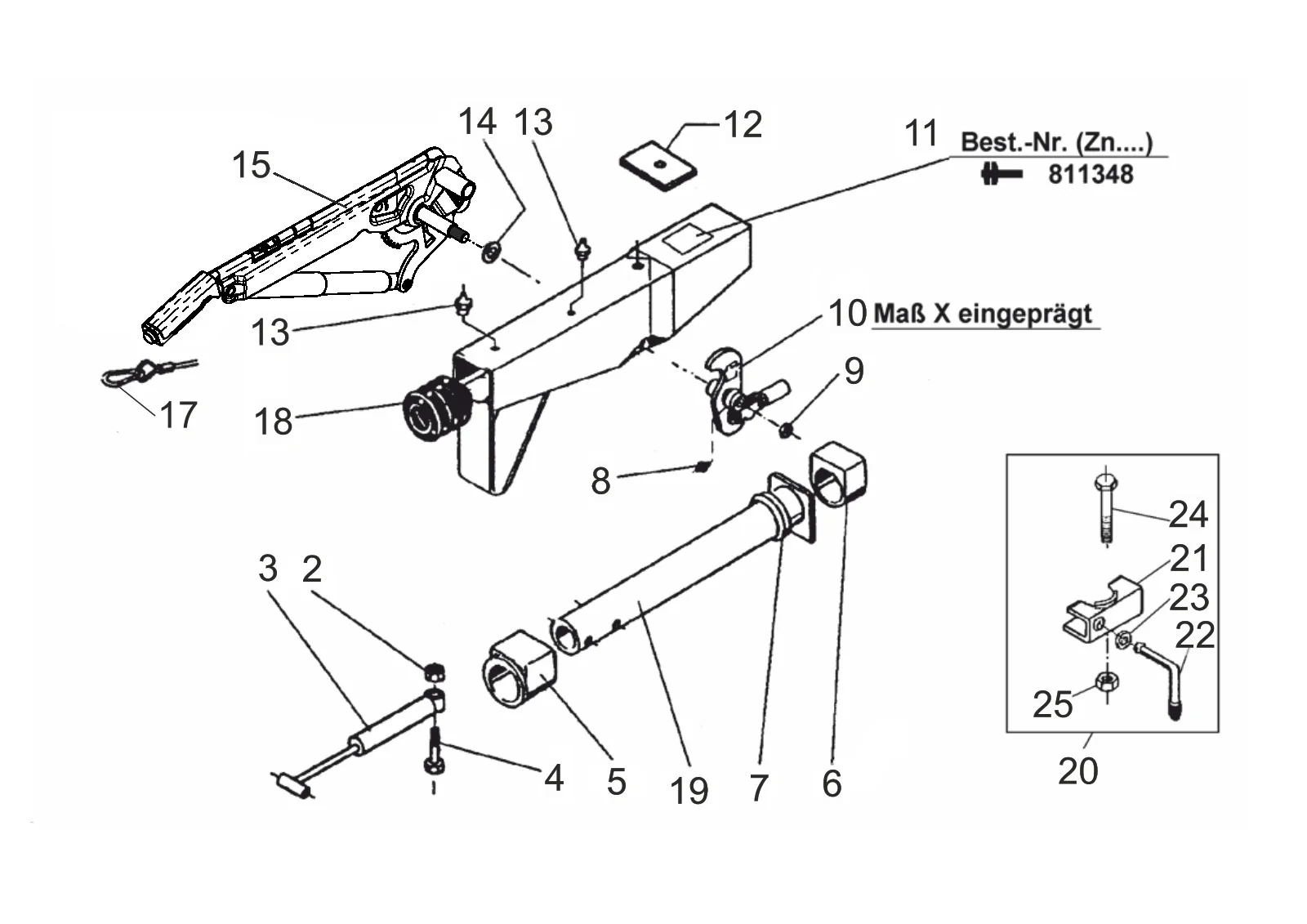

Technical drawing 811348
AL-KO ETI 811348
Technical details
AL-KO | square design | 90S/3 | with gas spring lever | without ball coupling parts
ETI number
811348
Parts
23
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811348
Use the position number from the exploded drawing to find the correct spare part.
23 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 2 | 706435 | Self locking nut BIW M10 | Enquire about this part |
| 3 | 359987 | Shock Absorber 90S/1/S2/S3 | View 359987 |
| 4 | 706312 | Hexagon screw M10x50 DIN 931 8.8 | Enquire about this part |
| 5 | 625601 | Bearing bush front replaced by 1210678 | Enquire about this part |
| 6 | 625602 | Bearing bush rear replaced by 1210678 | Enquire about this part |
| 7 | 2072410207 | Damping rubber | View 2072410207 |
| 8 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 9 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 10 | 384655 | Deflection lever cpl. iH=90:27 | View 384655 |
| 11 | ETK0002 | Housing | Enquire about this part |
| 12 | 625627 | Stop plate | Enquire about this part |
| 13 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 14 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 15 | 696759 | Hand brake lever incl. brake away cable | Enquire about this part |
| 17 | 368605 | Breakaway cable with hooks 950 mm length for common commercial trailers | View 368605 |
| 18 | 2073890210 | Bellows | View 2073890210 |
| 19 | 625626 | Draw tube welded 90 S/3 | View 625626 |
| 20 | ETK0004 | Assembly clamp welded | Enquire about this part |
| 21 | 20531802 | Jockey wheel outer clamp | Enquire about this part |
| 22 | 20531703 | Jockey wheel clamp handle - short | View 20531703 |
| 23 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 24 | 705498 | Hexagon screw M8x65 DIN 931 8.8 | Enquire about this part |
| 25 | 705388 | hexnut M8 DIN 980-V-8 | Enquire about this part |
