AL-KO ETI 811345 – Overrun device 251VB-2

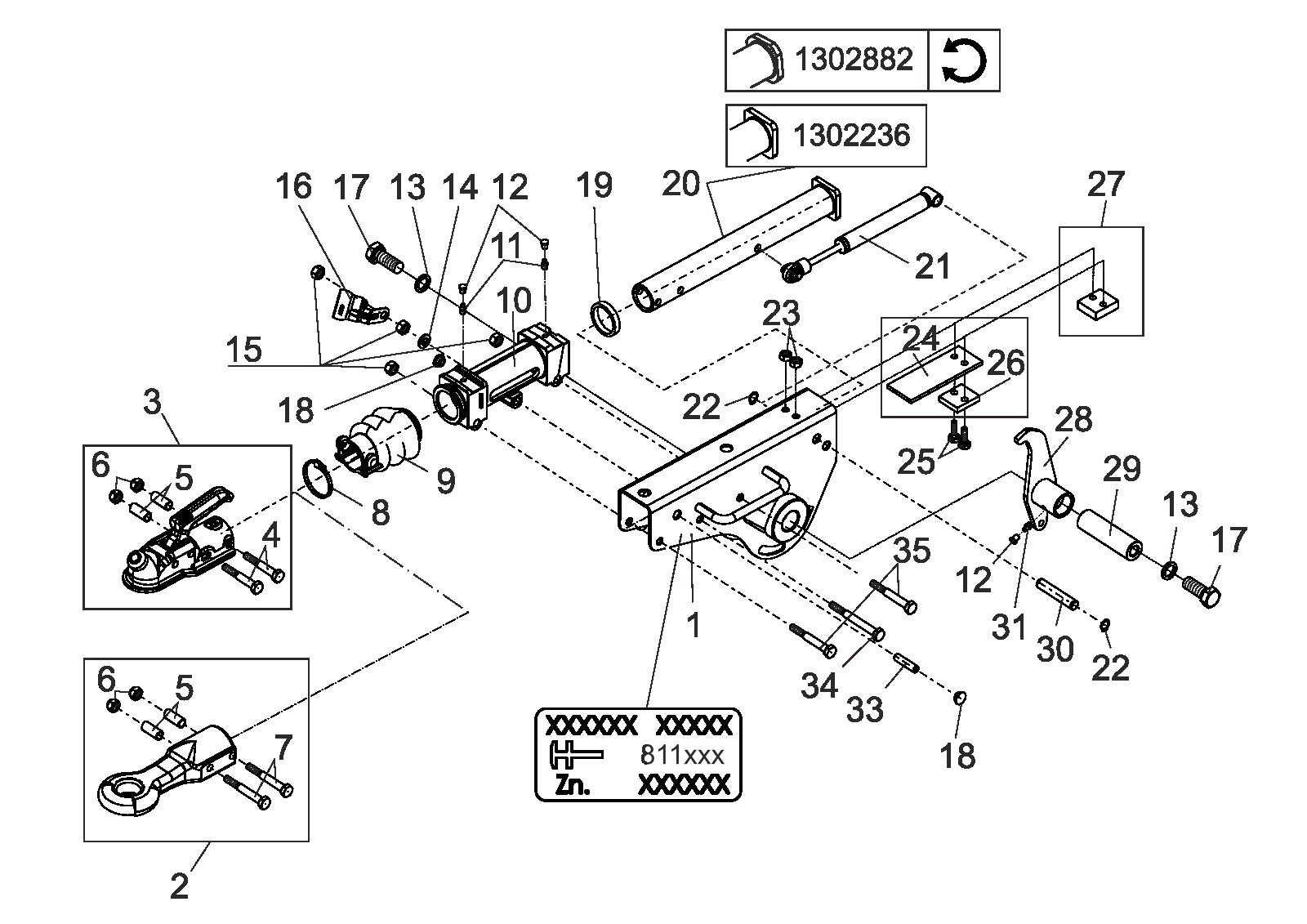

Looking for spare parts for AL-KO ETI 811345? Below you will find the technical exploded drawing and complete parts list for Overrun device 251VB-2.
Go to parts listExploded drawing
Technical drawing 811345
AL-KO ETI 811345
Technical details
AL-KO | height adjustable | mechanical brake | 251VB-2
ETI number
811345
Parts
43
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811345
Use the position number from the exploded drawing to find the correct spare part.
43 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 1213001 | OD with toothed washer 251VB-2 | Enquire about this part |
| 1 | 1250327 | OD with toothed washer 251VB-2 turnable | Enquire about this part |
| 2 | 1213350 | Drawbar eye Ø40 with fixing material design F | Enquire about this part |
| 2 | 1224106 | Drawbar eye Ø30 with fixing material desgin A | Enquire about this part |
| 2 | 1224107 | Drawbar eye Ø40 with fixing material design A | Enquire about this part |
| 2 | 1224108 | Drawbar eye Italy Ø45 with fixing material design E | Enquire about this part |
| 2 | 1224109 | Drawbar eye Ø50 with fixing material desgin A | Enquire about this part |
| 2 | 1224110 | Drawbar eye Frankreich Ø68 with fixing material design E | Enquire about this part |
| 2 | 1224111 | Drawbar eye NATO Ø76 with fixing material design E | View 1224111 |
| 2 | 1225076 | Drawbar eye Sweden Ø57,5 with fixing material design A | Enquire about this part |
| 3 | 249278 | Coupling AK 300 with mounting parts | Enquire about this part |
| 4 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | Enquire about this part |
| 5 | 647923 | Distance bush | Enquire about this part |
| 6 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 7 | 706080 | Hexagon screw M12x90 DIN 931 10.9 | Enquire about this part |
| 8 | 701422 | Cable tie 360x4,8 black | Enquire about this part |
| 9 | 366356 | Bellows | View 366356 |
| 10 | 690537 | Bearing cartridge | Enquire about this part |
| 11 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 12 | 368469 | Protection cap grease nipple | Enquire about this part |
| 13 | 1362413 | Washer Nord-Lock NL20-53074 | Enquire about this part |
| 14 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 15 | 706437 | Self locking nut BIW M12 | View 706437 |
| 16 | 1222023 | Plug holder complete 7&13 pin RAL3003 | Enquire about this part |
| 17 | 706302 | Hexagon screw M20x50 DIN 933 8.8 | Enquire about this part |
| 18 | 372416 | Seal plug | Enquire about this part |
| 19 | 371372 | Damping rubber | View 371372 |
| 20 | 1302236 | Draw tube welded | Enquire about this part |
| 20 | 1302882 | Draw tube welded rotatable | Enquire about this part |
| 21 | 372641 | Shock absorber 251VB/251S/251G | View 372641 |
| 22 | 704722 | Retaining ring 16x1 DIN 471 ZP | Enquire about this part |
| 23 | 705390 | hexnut M10 DIN 980-V-8 | Enquire about this part |
| 24 | 1302237 | Plate | Enquire about this part |
| 25 | 705458 | Hexagon screw M10x30 DIN 933 8.8 | Enquire about this part |
| 26 | 375433 | Plate | Enquire about this part |
| 27 | 647521 | Plate (roting design) | Enquire about this part |
| 28 | 1302463 | Deflection lever mounted | View 1302463 |
| 29 | 1302470 | Distance roller | Enquire about this part |
| 30 | 1302388 | Bearing bolt161/251VB-2 | Enquire about this part |
| 31 | 700204 | Conical grease nipple AS 8x1 DIN 71412 | View 700204 |
| 33 | 707262 | Clamping pin 12x48 ISO 8748-ST at drawing | Enquire about this part |
| 34 | 705420 | Hexagon screw M12x110 DIN 931 8.8 | Enquire about this part |
| 35 | 705434 | Hexagon screw M12x90 DIN 931 8.8 | View 705434 |
