AL-KO ETI 811308 – Wheel brake 2361AR EURO 1 (45°)
Looking for spare parts for AL-KO ETI 811308? Below you will find the technical exploded drawing and complete parts list for Wheel brake 2361AR EURO 1 (45°).
Go to parts listExploded drawing

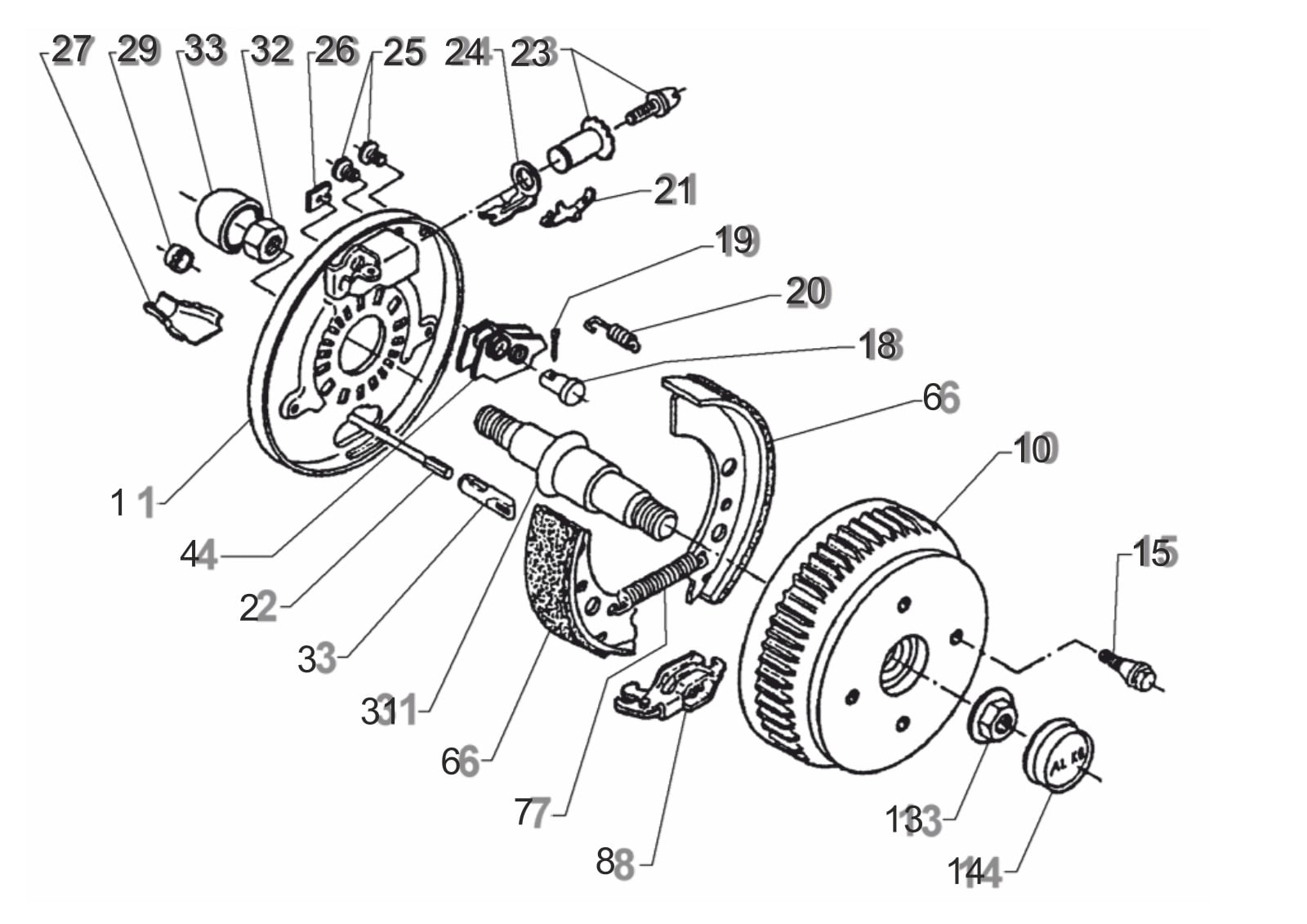

Technical drawing 811308
AL-KO ETI 811308
Technical details
AL-KO | EURO 1 | 2361 | 900 kg
ETI number
811308
Parts
37
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811308
Use the position number from the exploded drawing to find the correct spare part.
37 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | 572372 | Braking plate left 2361 | Enquire about this part |
| 1 | 572373 | Braking plate right 2361 | Enquire about this part |
| 2 | 299707 | Bowden cable PROFI LONG LIFE 350/560 | Enquire about this part |
| 2 | 299708 | Bowden cable PROFI LONG LIFE 530/740 | View 299708 |
| 2 | 299709 | Bowden cable PROFI LONG LIFE 770/980 | View 299709 |
| 2 | 299710 | Bowden cable PROFI LONG LIFE 890/1100 | View 299710 |
| 2 | 299711 | Bowden cable PROFI LONG LIFE 1020/1230 | View 299711 |
| 2 | 299712 | Bowden cable PROFI LONG LIFE 1130/1340 | View 299712 |
| 2 | 299713 | Bowden cable PROFI LONG LIFE 1320/1530 | View 299713 |
| 2 | 299714 | Bowden cable PROFI LONG LIFE 1430/1640 | View 299714 |
| 2 | 299715 | Bowden cable PROFI LONG LIFE 1620/1830 | View 299715 |
| 2 | 299716 | Bowden cable PROFI LONG LIFE 1790/2000 | View 299716 |
| 3 | 604262 | Connection eye wheel brake 1637/2051/2361 | View 604262 |
| 4 | 385248 | Auto reserve lever cpl. 2051/2361 | Enquire about this part |
| 6 | 1213890 | Set brake shoe 2360/2361 | View 1213890 |
| 7 | 2082000007 | Tension spring | View 2082000007 |
| 8 | 571510 | Expanding joint lock compl. 2051/2361 | View 571510 |
| 10 | 1224805 | Spare parts set bearing (Ø80/Ø42/42) wheel brake 2361 | View 1224805 |
| 10 | 1361010 | Brake drum cpl. 140x5-M14x1,5 | Enquire about this part |
| 10 | 1932109 | Spare parts set brake drum 2361 cpl. with bearing; 112x5 - M12x1,5 | View 1932109 |
| 13 | 582506 | Flange nut M27x2 | View 582506 |
| 14 | 582505 | Sealing cap Ø65 | View 582505 |
| 15 | 2081670018 | Wheel bolt conical 60° M12x1,5x24 | Enquire about this part |
| 15 | 2081670020 | Wheel bolt sperical M12x1,5 x25 | View 2081670020 |
| 18 | 368651 | Bearing bolt | Enquire about this part |
| 19 | 700192 | Split pin 4x20 DIN 94 (at drawing) | Enquire about this part |
| 20 | 2088800003 | Compression spring | Enquire about this part |
| 21 | 368405 | Compound spring | View 368405 |
| 23 | 21873708 | Regulation unit wheel brake | View 21873708 |
| 24 | 368361 | Bow pressure | View 368361 |
| 25 | 373245 | Plug RAL6002 | View 373245 |
| 26 | 2382610002 | Cover plate | Enquire about this part |
| 27 | 371387 | Brake cable shell 1637-2361 | View 371387 |
| 29 | 371389 | Protective cap | Enquire about this part |
| 31 | 582541 | Stub axle Ø42 bend 0°30' | View 582541 |
| 32 | 703112 | Hexagon lock nut M30 according to drawing | View 703112 |
| 33 | 582542 | Protective cap | Enquire about this part |
