AL-KO ETI 811296 – Winch Typ 901 special crank
Looking for spare parts for AL-KO ETI 811296? Below you will find the technical exploded drawing and complete parts list for Winch Typ 901 special crank.

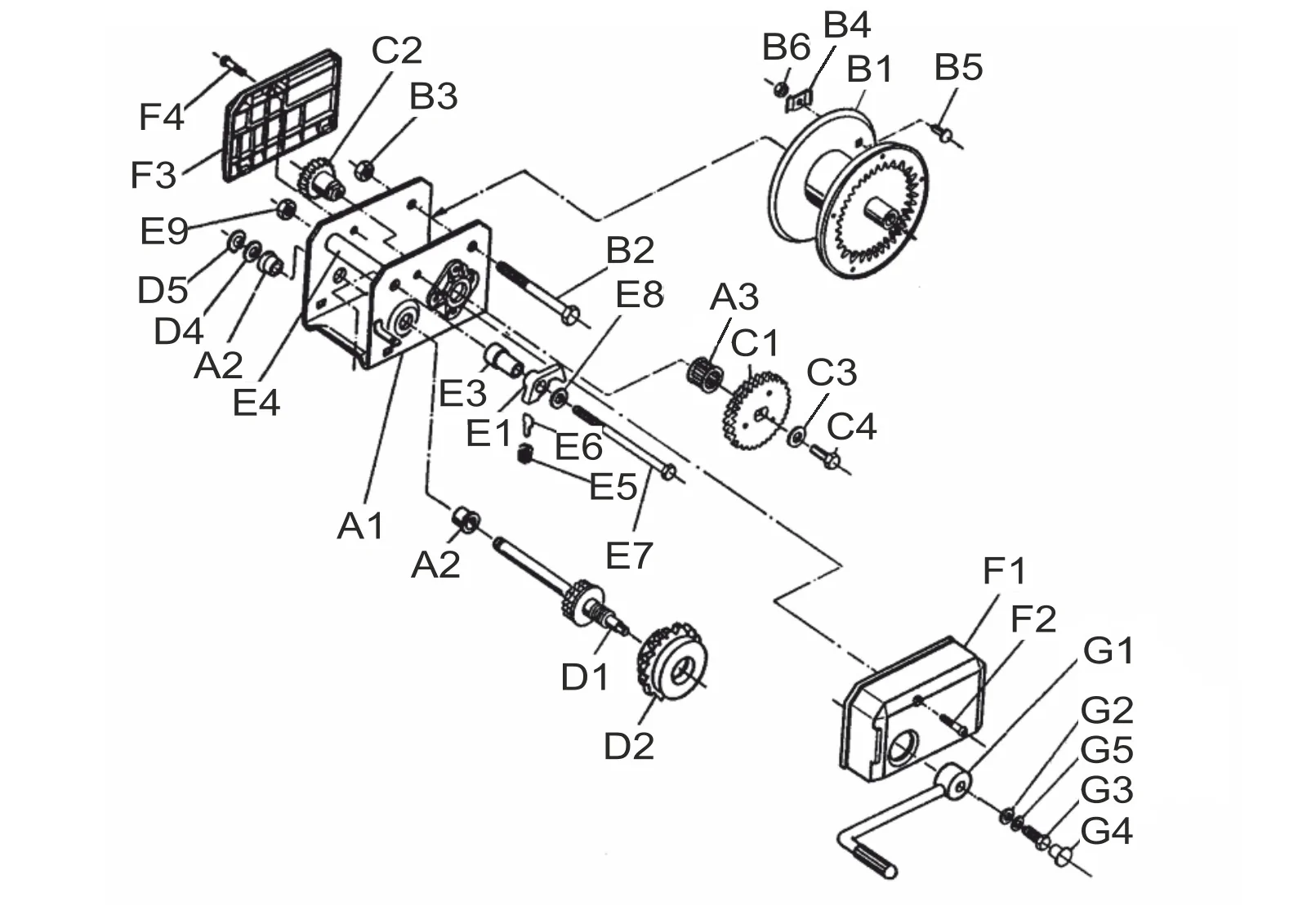

Go to parts listExploded drawing
Technical drawing 811296
AL-KO ETI 811296
Technical details
AL-KO | 901
ETI number
811296
Parts
34
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811296
Use the position number from the exploded drawing to find the correct spare part.
34 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| A1 | ETK0015 | No spare part | Enquire about this part |
| A2 | 352474 | Bearing bush | Enquire about this part |
| A3 | 700837 | Needle roller bearing 25X32X26 DIN 618 | Enquire about this part |
| B1 | 352511 | Rope drum cpl. | Enquire about this part |
| B2 | 352431 | Hexagon screw M12x125 8,8 | Enquire about this part |
| B3 | 706437 | Self locking nut BIW M12 | View 706437 |
| B4 | 352015 | Rope clamp | Enquire about this part |
| B5 | 706416 | Round-head screw M6x16 DIN 603 8.8 | Enquire about this part |
| B6 | 700104 | Wing nut M8 DIN 315 VZ | Enquire about this part |
| C1 | 352021 | Gear wheel cpl. | Enquire about this part |
| C2 | 352018 | Countershaft sprocket | Enquire about this part |
| C3 | 352111 | Washer Ø11 similar DIN 1440 | Enquire about this part |
| C4 | 706237 | Hexagon screw M10x16 DIN 933 8.8 | Enquire about this part |
| D1 | 352024 | Drive shaft cpl. Type 900/901 | Enquire about this part |
| D2 | 352321 | Ratchet wheel glued | Enquire about this part |
| D4 | 352110 | Washer 0,5 mm | Enquire about this part |
| D5 | 701001 | Retaining ring 14x1 DIN 471 ZP | Enquire about this part |
| E1 | 352271 | Ratched brace | Enquire about this part |
| E3 | 352473 | Distance pipe | Enquire about this part |
| E4 | 352508 | Spacer tube | Enquire about this part |
| E5 | 352299 | Compression spring | Enquire about this part |
| E6 | 352232 | Spring holder plate | Enquire about this part |
| E7 | 706362 | Hexagon screw M10x165 DIN 931 8.8 | Enquire about this part |
| E8 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| E9 | 706435 | Self locking nut BIW M10 | Enquire about this part |
| F1 | 352445 | Covere RAL 3003 | View 352445 |
| F2 | 589495 | Bolt DUO-TAPTITE M6x35-C | Enquire about this part |
| F3 | 352444 | Covere rear | Enquire about this part |
| F4 | 589122 | Bolt DUO-TAPTITE M6x16-C | Enquire about this part |
| G1 | 690374 | Crank cpl. 180 | Enquire about this part |
| G2 | 352111 | Washer Ø11 similar DIN 1440 | Enquire about this part |
| G3 | 706237 | Hexagon screw M10x16 DIN 933 8.8 | Enquire about this part |
| G4 | 352477 | End cover Ø28 | Enquire about this part |
| G5 | 706762 | Spring lock washer VSK 10 | Enquire about this part |
