AL-KO ETI 811292 – Axle TA 6000

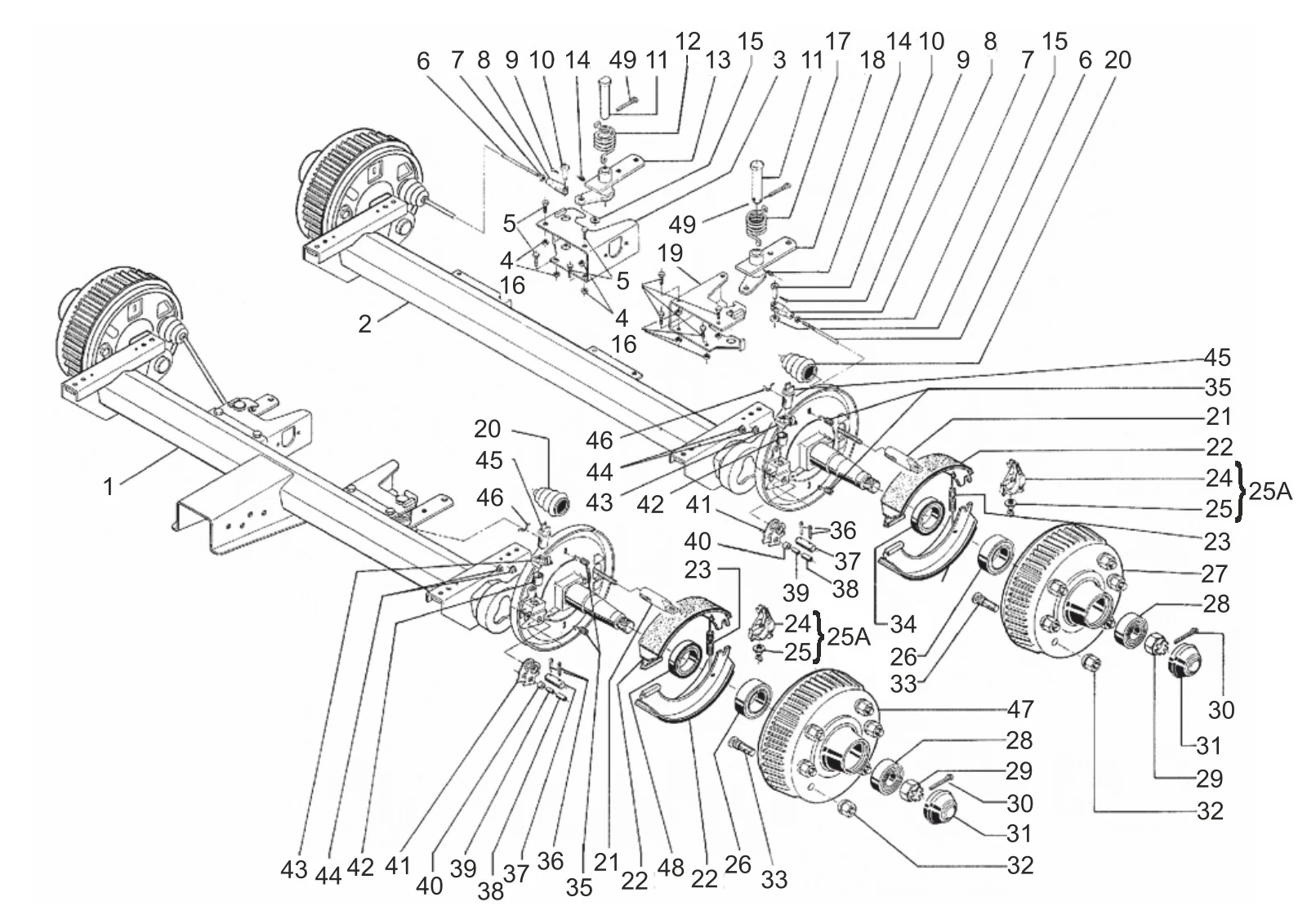

Looking for spare parts for AL-KO ETI 811292? Below you will find the technical exploded drawing and complete parts list for Axle TA 6000.
Go to parts listExploded drawing
Technical drawing 811292
AL-KO ETI 811292
Technical details
AL-KO | Rubber suspension braked | Trailing arm | compressed air
ETI number
811292
Parts
55
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811292
Use the position number from the exploded drawing to find the correct spare part.
55 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0020 | Axle 1 without anti-lock braking system | Enquire about this part |
| 2 | ETK0021 | Axle 1 with anti-lock braking system | Enquire about this part |
| 3 | 1313796 | Console right welded | Enquire about this part |
| 4 | 705457 | Hexagon screw M12x30 DIN 933 8.8 | View 705457 |
| 5 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 6 | 705378 | Hexnut M10 DIN 934-8 | View 705378 |
| 7 | ETK0006 | Linkage: Please specify the length and diameter | Enquire about this part |
| 8 | 705378 | Hexnut M10 DIN 934-8 | View 705378 |
| 9 | 706614 | Fork head 10X40 DIN 71752 | View 706614 |
| 10 | 705487 | Split pin 3,2x20 DIN 94 | Enquire about this part |
| 11 | 706298 | Bolt B10 H11x28X23,5 EN22341 | Enquire about this part |
| 12 | 1312391 | Bolt | Enquire about this part |
| 13 | 358268 | Torsion spring right | Enquire about this part |
| 14 | 1364406 | Lever brake right cpl. | Enquire about this part |
| 15 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 16 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 17 | 358267 | Torsion spring left | Enquire about this part |
| 18 | 1364405 | Lever brake left cpl. | Enquire about this part |
| 19 | 1313795 | Console left welded | Enquire about this part |
| 20 | 375411 | Bellows wheel brake 3081 | Enquire about this part |
| 21 | 358266 | Connection eye | Enquire about this part |
| 22 | 1220333 | Set brake jaw for one axle Achse 3081 | View 1220333 |
| 23 | 355833 | Tension spring left | Enquire about this part |
| 23 | 2589250004 | Tension spring right | Enquire about this part |
| 24 | 614340 | Spread hinge lock left assembly | Enquire about this part |
| 24 | 614341 | Spread hinge lock right 3081 | Enquire about this part |
| 25 | 614338 | Reset wheel assembly left mounted | Enquire about this part |
| 25 | 614339 | Reset wheel assembly right mounted | Enquire about this part |
| 25A | 574371 | Spread hinge lock left 3081AR | Enquire about this part |
| 25A | 574372 | Spread hinge lock right 3081AR | Enquire about this part |
| 26 | 701774 | Tapered roller bearing 30211 DIN 720 | Enquire about this part |
| 27 | 1365418 | Bremstrommel kpl. mit Lager Ø205x6 ABV | View 1365418 |
| 28 | 701548 | Tapered roller bearing 30208 DIN 720 | Enquire about this part |
| 29 | 706286 | Castle nut M33X1,5 DIN 937 | Enquire about this part |
| 30 | 700856 | Split pin 6,3x63 DIN 94 | Enquire about this part |
| 31 | 2589290011 | End cap Ø85 | Enquire about this part |
| 32 | 701202 | Wheel nut DIN 74361-A18- 8 A3B (M18x1,5) | Enquire about this part |
| 33 | 2487940005 | Wheel stud M18x1,5 x58 | Enquire about this part |
| 34 | 702126 | Rotary shaft lip seal AS 65x100x10 DIN 3760-NB | Enquire about this part |
| 35 | 372895 | Compression spring | Enquire about this part |
| 36 | 700193 | Split pin 4x25 DIN 94 | Enquire about this part |
| 37 | 706520 | Bolt B16 H11x65X59,0 EN2341 | Enquire about this part |
| 38 | 701452 | snap hook 14x24 DIN 1481 Geomet | Enquire about this part |
| 39 | 700368 | snap hook 8x24 DIN 1481 Geomet | Enquire about this part |
| 40 | 368533 | Roller RB 3062/3081 | Enquire about this part |
| 41 | 385578 | Locking lever cpl. 3081 | Enquire about this part |
| 42 | 368535 | Bush | Enquire about this part |
| 43 | 358259 | Securing part | Enquire about this part |
| 44 | 373245 | Plug RAL6002 | View 373245 |
| 45 | 646155 | Regulation unit wheel brake 3062/3081 | Enquire about this part |
| 46 | 372913 | Spring bow | Enquire about this part |
| 47 | 691485 | Bremstrommel kpl. mit Lager Ø205x6 | View 691485 |
| 48 | 702126 | Rotary shaft lip seal AS 65x100x10 DIN 3760-NB | Enquire about this part |
| 49 | 700197 | Split pin 6,3x36 DIN 94 | Enquire about this part |
| 50 | 706418 | Washer B 25 DIN 125-ST | Enquire about this part |
