AL-KO ETI 811290 – Overrun device EURO 200V 1. generation
Looking for spare parts for AL-KO ETI 811290? Below you will find the technical exploded drawing and complete parts list for Overrun device EURO 200V 1. generation.
Go to parts listExploded drawing

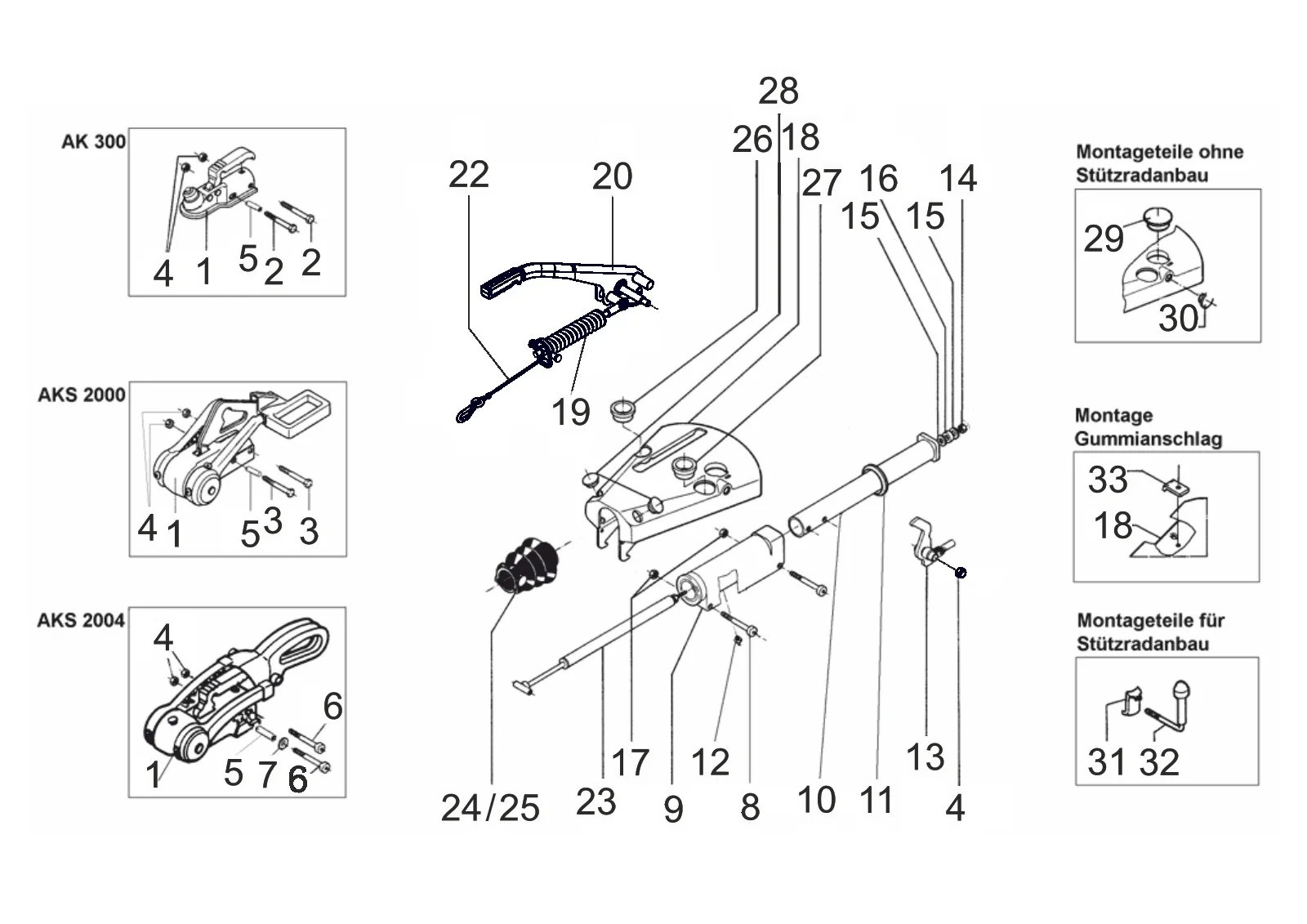

Technical drawing 811290
AL-KO ETI 811290
Technical details
AL-KO | EURO-design | 200V | ball coupling and AKS
ETI number
811290
Parts
34
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811290
Use the position number from the exploded drawing to find the correct spare part.
34 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0001 | Ball coupling | Enquire about this part |
| 2 | 705427 | Hexagon screw M12x75 DIN 931 8.8 | Enquire about this part |
| 3 | 706358 | Hexagon screw M12x80 DIN 931 10.9 | Enquire about this part |
| 4 | 705526 | hexnut M12 DIN 985-10 | View 705526 |
| 5 | 647923 | Distance bush | Enquire about this part |
| 6 | 706481 | Cylinder screw M12x75 DIN 7984 8.8 | View 706481 |
| 7 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 8 | 706396 | Cylinder screw M10x85 DIN 912 8.8 | View 706396 |
| 9 | 690180 | Bearing cartridge M10-M10 mounted | View 690180 |
| 10 | 643096 | Draw tube welded | View 643096 |
| 11 | 371372 | Damping rubber | View 371372 |
| 12 | 700204 | Conical grease nipple AS 8x1 DIN 71412 | View 700204 |
| 13 | 646417 | Deflection lever cpl. iH=90:27 | Enquire about this part |
| 13 | 690007 | Deflection lever cpl. iH=90:30 | Enquire about this part |
| 13 | 690031 | Deflection lever cpl. iH=90:34,5 | Enquire about this part |
| 14 | 705519 | hexnut M10 DIN 985-10 | View 705519 |
| 15 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 16 | 643098 | Hard rubber washer | View 643098 |
| 17 | 705390 | hexnut M10 DIN 980-V-8 | Enquire about this part |
| 18 | ETK0002 | Housing | Enquire about this part |
| 19 | 1732798 | Breakaway cable 920 mm length carabiner ring | Enquire about this part |
| 20 | 648475 | Hand brake lever incl. brake away cable 200V | Enquire about this part |
| 22 | 705379 | Hexnut M12 DIN 934-8 | Enquire about this part |
| 23 | 690388 | Shock Absorber 200V with Bush 37,5 | Enquire about this part |
| 24 | 366356 | Bellows | View 366356 |
| 25 | 607133 | Bellows SAFETY-packed | View 607133 |
| 26 | 643103 | Plug holder 7 pin | View 643103 |
| 27 | 690223 | Plug holder 13 pin | View 690223 |
| 28 | 643106 | Cover | View 643106 |
| 29 | 1311053 | Seal plug | Enquire about this part |
| 30 | 643107 | Cover | Enquire about this part |
| 31 | 690182 | Pressure pad | View 690182 |
| 32 | 646423 | Clamp handle cpl. M12 | View 646423 |
| 33 | 690003 | End stop rubber | View 690003 |
