AL-KO ETI 811262 – Overrun device V 251G

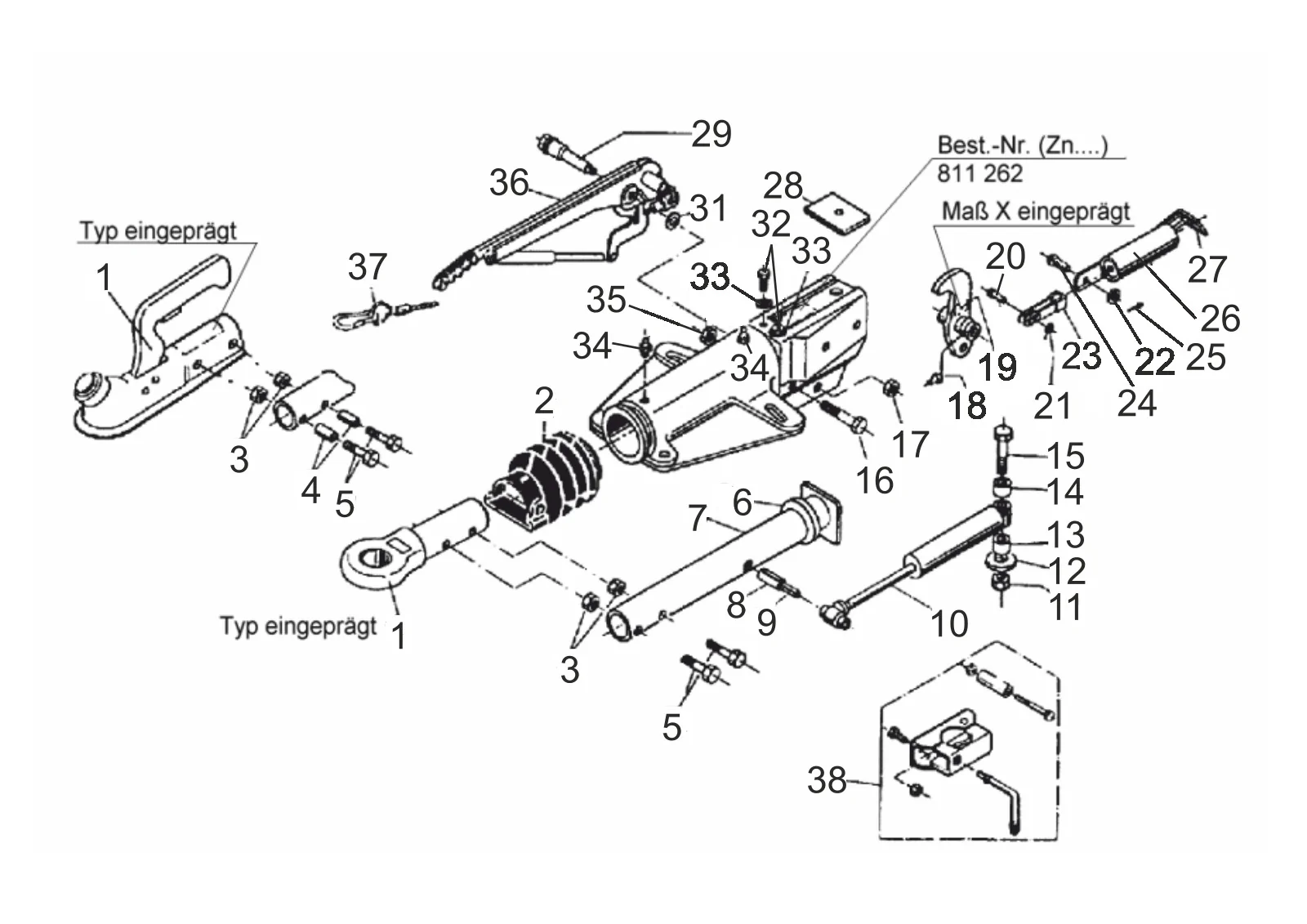

Looking for spare parts for AL-KO ETI 811262? Below you will find the technical exploded drawing and complete parts list for Overrun device V 251G.
Go to parts listExploded drawing
Technical drawing 811262
AL-KO ETI 811262
Technical details
AL-KO | V-design | 251G | spring load memory | ball coupling
ETI number
811262
Parts
40
Match the position number in the drawing with the parts list. Available products can be viewed directly.
Spare parts
Parts list for ETI 811262
Use the position number from the exploded drawing to find the correct spare part.
40 parts
| Pos. | Article number | Description | |
|---|---|---|---|
| 1 | ETK0017 | Coupling parts with mounting parts | Enquire about this part |
| 2 | 366356 | Bellows | View 366356 |
| 3 | 705389 | hexnut M12 DIN 980-V-8 | View 705389 |
| 4 | 370853 | Distance bush | Enquire about this part |
| 5 | 701249 | Hexagon screw M12x75 DIN 931 8.8 zp | Enquire about this part |
| 5 | 705422 | Hexagon screw M12x80 DIN 931 8.8 | Enquire about this part |
| 5 | 705545 | Hexagon screw M12x60 DIN 931 8.8 | Enquire about this part |
| 6 | 371372 | Damping rubber | View 371372 |
| 7 | 625023 | Draw tube welded | View 625023 |
| 7 | 625349 | Draw tube welded | Enquire about this part |
| 8 | 704408 | snap hook 12x48 nach Zeichnung | Enquire about this part |
| 9 | 704407 | snap hook 7x48 nach Zeichnung | Enquire about this part |
| 10 | 372641 | Shock absorber 251VB/251S/251G | View 372641 |
| 11 | 706306 | hexnut M16 DIN 985-8 | View 706306 |
| 12 | 706081 | Washer A 17 DIN 125-ST | Enquire about this part |
| 13 | 375928 | Distance bush | Enquire about this part |
| 14 | 375929 | Distance bush | Enquire about this part |
| 15 | 706301 | Hexagon screw M16x100 DIN 931 8.8 | Enquire about this part |
| 16 | 705563 | Hexagon screw M10x90 DIN 931 8.8 | Enquire about this part |
| 17 | 700645 | hexnut M12 DIN 980-V-10 ZP | View 700645 |
| 18 | 700203 | Conical grease nipple AS 6x1 DIN 71412 | Enquire about this part |
| 19 | 648197 | Deflection lever cpl. iH=90:27 | Enquire about this part |
| 20 | 702121 | Round head rivet 10x25 DIN 124 | Enquire about this part |
| 21 | 705396 | Washer A 10,5 DIN 125-ST | View 705396 |
| 22 | 705397 | Washer A 13 DIN 125-ST | View 705397 |
| 23 | 571721 | Fork head welded | Enquire about this part |
| 24 | 584955 | Bearing bolt | Enquire about this part |
| 25 | 706332 | Split pin 4x20 DIN 94 | Enquire about this part |
| 26 | 2077050601 | Spring cylinder cpl. | View 2077050601 |
| 27 | 586371 | Tension bracket welde hot dipped | Enquire about this part |
| 28 | 375572 | Stop plate | Enquire about this part |
| 29 | 581145 | Bearing screw M12x100 Ø19 | View 581145 |
| 31 | 370693 | Washer Ø19x34x3 | Enquire about this part |
| 32 | 706478 | Self tapping screw A 8x20 DIN 7513 | Enquire about this part |
| 33 | 701765 | Serrated lock washer A8,4 DIN 6798 zinc plated | Enquire about this part |
| 34 | 2171710001 | Conical grease nipple AS 8x1 DIN 71412 | Enquire about this part |
| 35 | 705390 | hexnut M10 DIN 980-V-8 | Enquire about this part |
| 36 | 244764 | Hand brake lever incl. brake away cable 251G 2,8 | Enquire about this part |
| 37 | 368605 | Breakaway cable 950 mm length | View 368605 |
| 38 | 293020 | Jockey whell clamp for tube Ø48 161/251 | View 293020 |
